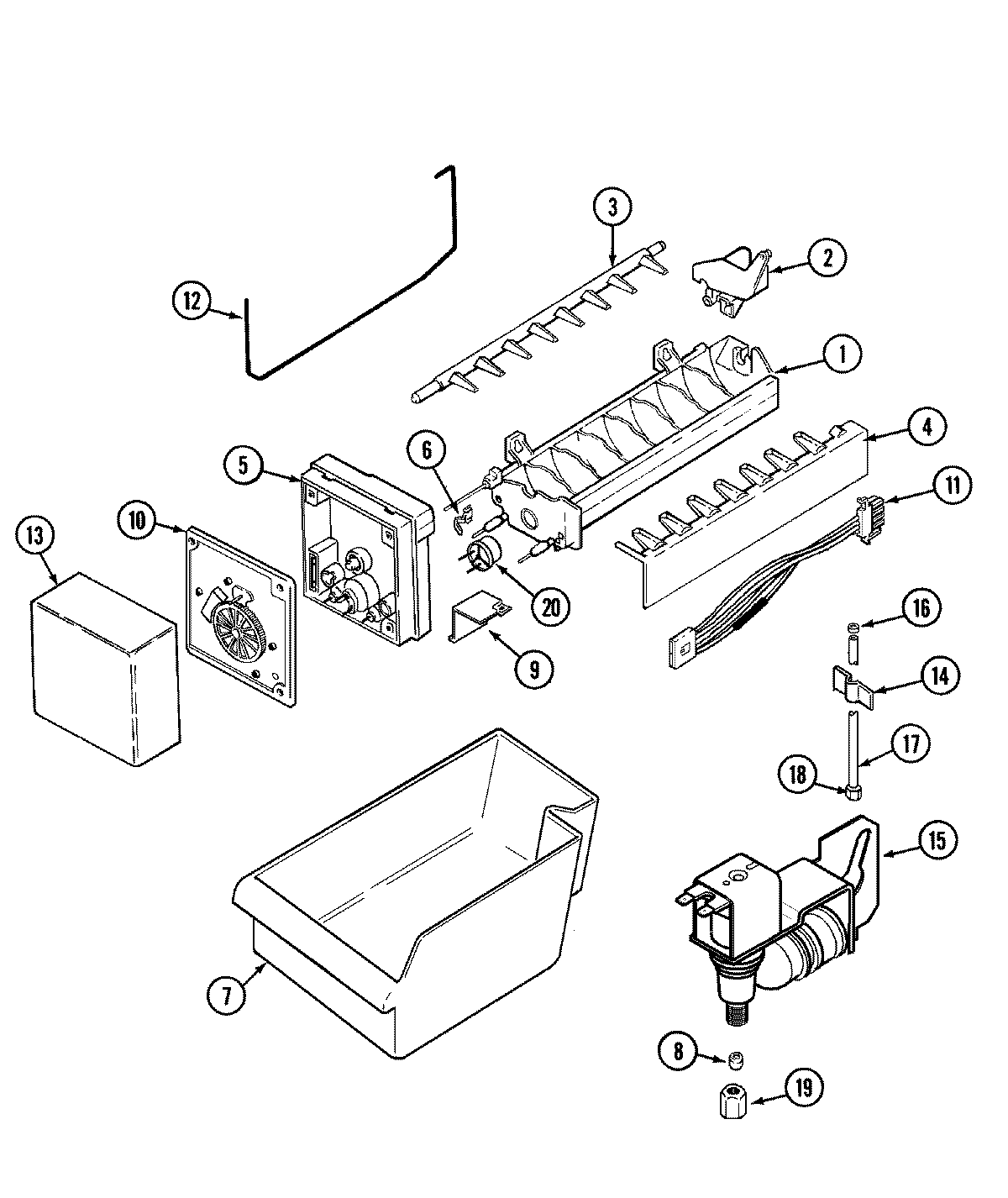

ATF1910DRQ 08 – ICE MAKER (BISQUE)

Products

Position	Product
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
1	WP99003172 Whirlpool Silicone L
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	WP2195914 Whirlpool Refrigerator Ice Maker Housing
5	SCREW
6	WP2315522 Whirlpool Refrigerator Clip
7	MAY 61001886
8	WP487627 Whirlpool Refrigerator Sleeve
9	MAY 95108-1
9	BRACKET, MODULE & HEATER
10	MAY 400031-1
10	MAY 95109-1
11	MAY 61001882
12	MAY 68112-1
13	MAY 61004594
14	SCREW
14	W10833902 Whirlpool Refrigerator Clamp
14	MAY 61004913
15	WP61005273 Whirlpool Refrigerator Inlet Valve
15	MAY 61002819
16	WPM0114003 Whirlpool Microwave Speed Clip Clamp
17	MAY 67579-7
18	WP627018 Whirlpool Refrigerator Nut
19	WP245183 Whirlpool Nut
20	MAY 95093-1
20	WP627985 Whirlpool Icemaker Cycling Thermostat
