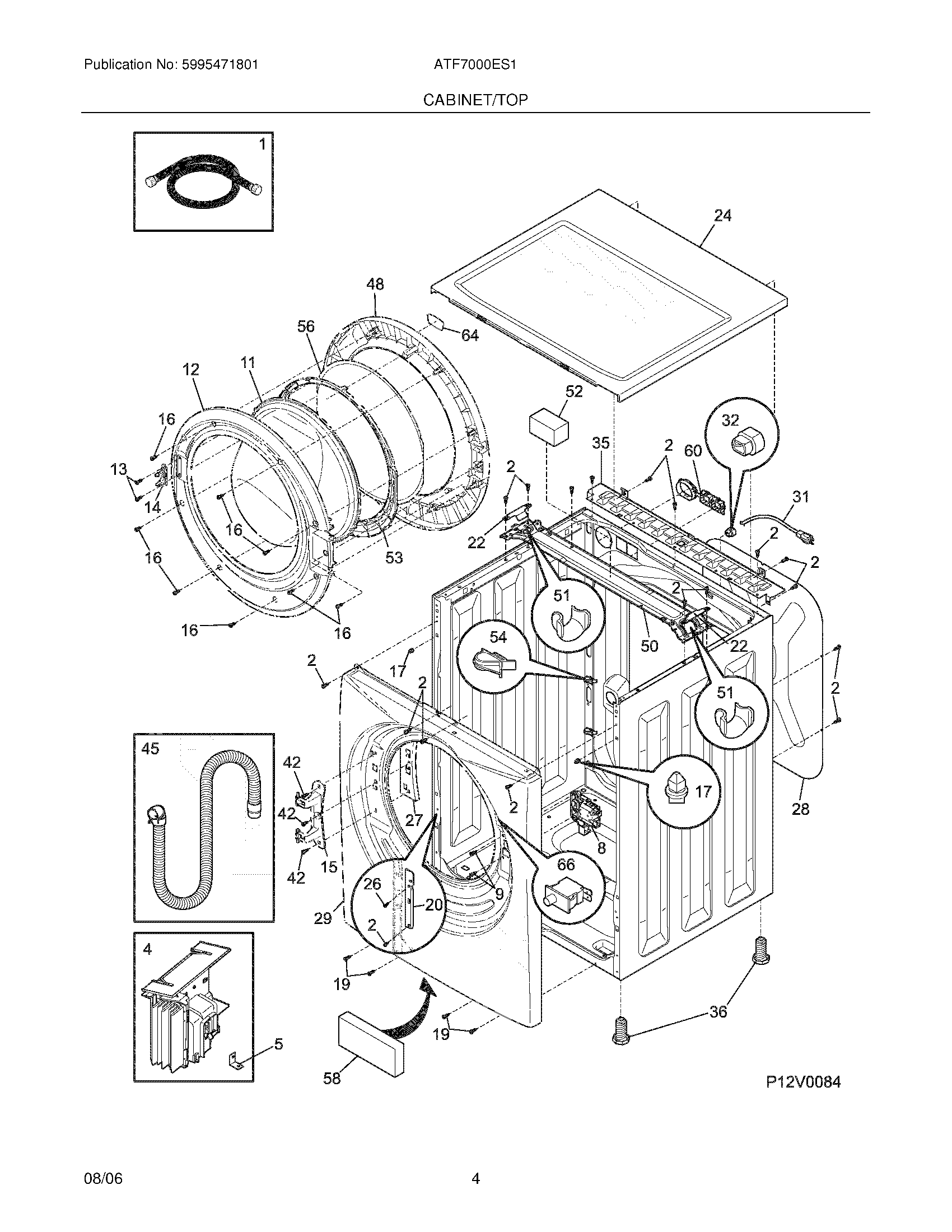

ATF7000ES1 05 – CABINET/TOP

Products

Position	Product
NI	134178901 Frigidaire Screw
NI	WCI 134547600
NI	134591500 Frigidaire Transport Plug Kit
NI	134596200 Frigidaire Support Kit
NI	WCI 134434900
NI	WCI 134554500
NI	WCI 134603100
1	5303912532 Frigidaire Hose Inlet 60"
2	131168200 Frigidaire Dryer Screw
4	134743500 Frigidaire Washer Electronic Control Board Motor
5	134522900 Frigidaire Bracket
8	DOOR LOCK/SWITCH ASSY
11	134366400 Frigidaire Panel
12	134550702 Frigidaire Frame
13	131302901 Frigidaire Screw
14	131763302 Frigidaire Washer Door Strike
15	WCI 134550800
16	131205300 Frigidaire Screw
17	WCI 134408700
19	131302800 Frigidaire Drum Vane Screw
20	WCI 134434901
22	134648500 Frigidaire Spring Bracket
24	137371700 Frigidaire Panel
26	WCI 134521600
27	134550900 Frigidaire Hinge Bracket
28	WCI 134364300
29	WCI 134550100
31	5304505407 Frigidaire Cord
32	5303209428 Frigidaire Serv.Cord Bushing
35	WCI 134365100
36	134548800 Frigidaire Washer Leg Levelling
42	137380600 Frigidaire Screw - M5 x 0.8
45	WCI 134369400
48	WCI 134550510
50	WCI 134364600
51	WCI 134562100
52	131931202 Frigidaire Dampener
53	134551300 Frigidaire Ring
54	WCI 134364900
56	137577700 Frigidaire Glass
58	WCI 131800405
60	134372000 Frigidaire Grommet
64	WCI 134601600
66	134813600 Frigidaire Dryer Door Switch
