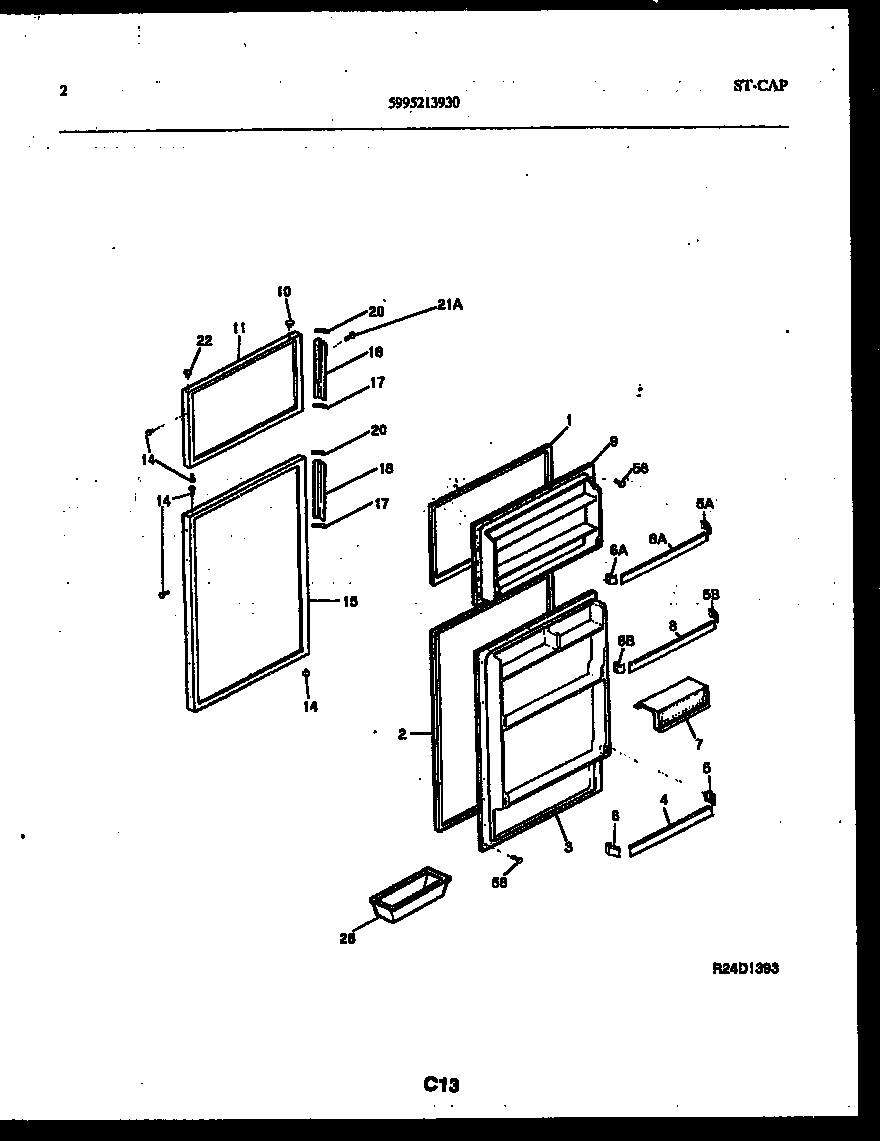

ATG170VNCD0 02 – DOOR PARTS

Products

Position	Product
1	GASKET, FRZR DOOR, BROWN, MAGNETIC
2	218730603 Frigidaire Door Gasket
3	WCI 5303281227
4	215366002 Frigidaire Refrigerator Door Wide Rack
5B	SUPPORT-DOOR RACK, EXTENDS 1.06``, RH
5A	3206165 Frigidaire Bar Endcap Right Hand
5	WCI 3206150
6B	SUPPORT-DOOR RACK, EXTENDS 1.06``, LH
6	WCI 3206151
6A	3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
7	WCI 5303276149
8A	RACK-DOOR, 22.59`` X 1.12``
9	WCI 5303276335
10	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11	WCI 5303917050
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15	WCI 5303917048
17	END CAP-BOTTOM (2)
18	HANDLE
20	WCI 5308010239
21A	SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
22	BEARING-HINGE
26	WCI 3204522
58	5304455651 Frigidaire Refrigerator Screw
