ATG170VNCD1 05 – SHELVES AND SUPPORTS

ATG170VNCD1 05 – SHELVES AND SUPPORTS

Written by

in

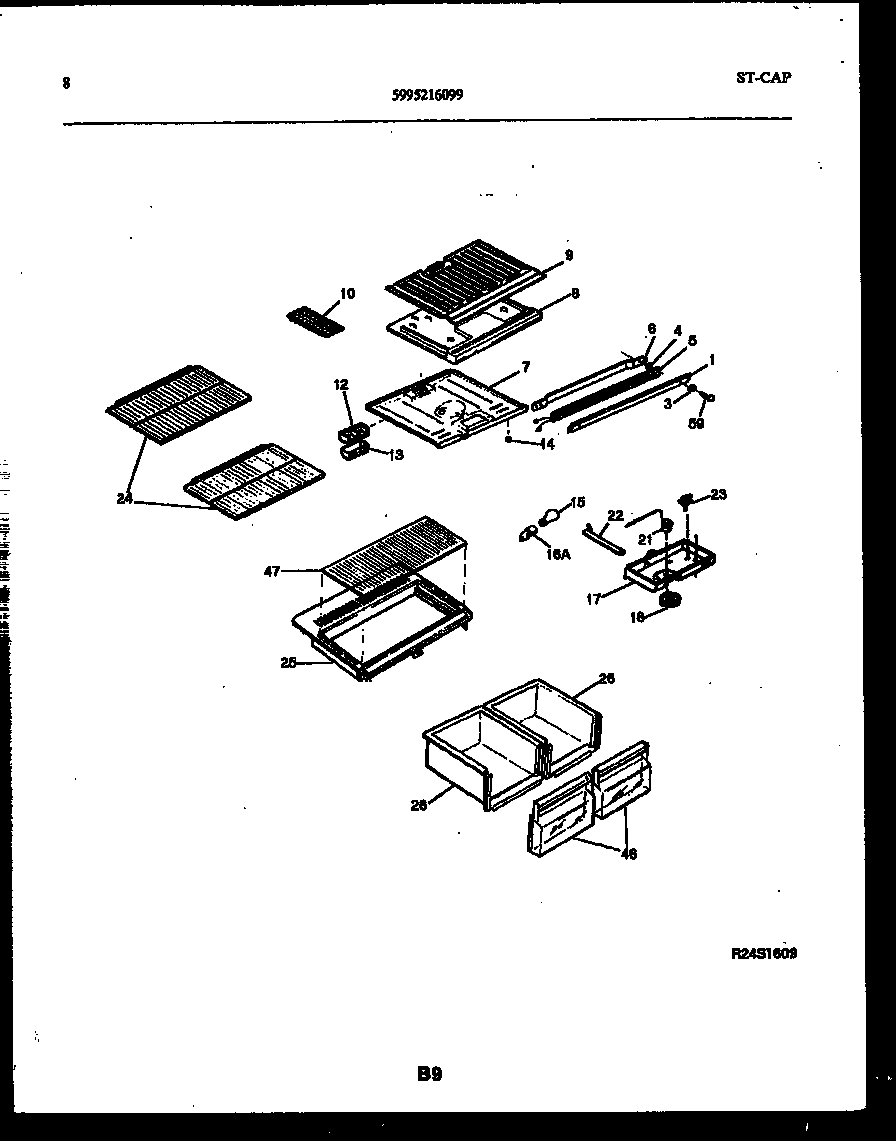

ATG170VNCD1 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3206125
3WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
4SPACER-MULLION MTG, STEEL
5WCI 5303269640
6WCI 5308003604
7WCI 3206185
7AWCI 5303001380
8BHARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED)
8A3205266 Frigidaire Refrigerator Edge Protector
8WCI 3206186
9WCI 3206187
10215667501 Frigidaire Refrigerator Ice Tray Primary
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15LIGHT BULB/LAMP, INCAND, OVEN, 250 V
16A218906802 Frigidaire Light Lamp Socket
17WCI 3206320
17A5304455650 Frigidaire Refrigerator Screw
18WCI 5303209251
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23WCI 5303007517
23A5304455649 Frigidaire Refrigerator Screw
24SHELF, SLIDING, WIRE, REFR SECTION
25WCI 3206183
26PAN – CRISPER
46WCI 5303210261
47WCI 5303271945
59SCREW – MULLION (2)
