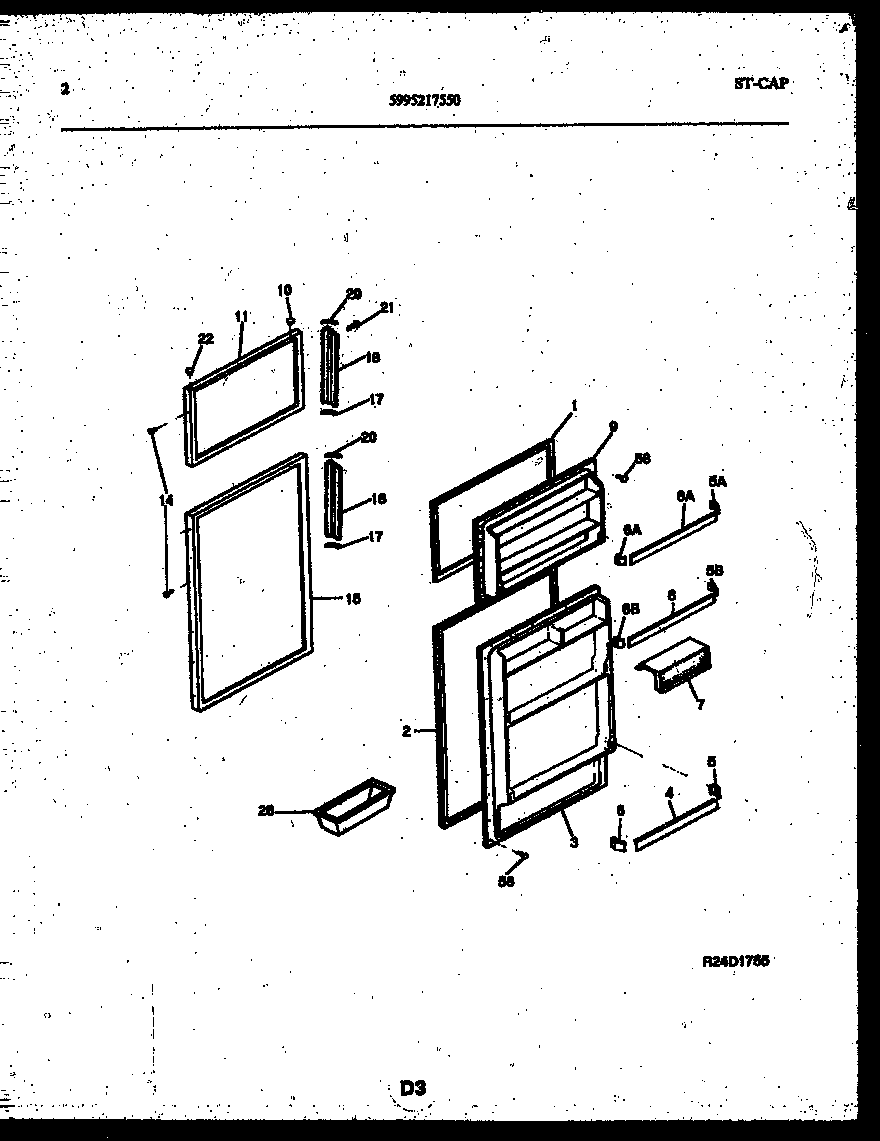

ATG175NCD1 02 – DOOR PARTSadmin2025-04-26T08:50:50+00:00ATG175NCD1 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *59282 | INSULATION-BULK (NON-ILLUSTRATED) |
| 1 | GASKET, FRZR DOOR, BROWN, MAGNETIC |
| 2 | 218730603 Frigidaire Door Gasket |
| 3 | WCI 5303281227 |
| 4 | 215366002 Frigidaire Refrigerator Door Wide Rack |
| 5B | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 5A | 3206165 Frigidaire Bar Endcap Right Hand |
| 5 | WCI 3206150 |
| 6 | WCI 3206151 |
| 6A | 3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support |
| 6B | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
| 7 | WCI 5303276149 |
| 8A | RACK-DOOR, 22.59`` X 1.12`` |
| 9 | WCI 5303276335 |
| 10 | PLUG-BUTTON, WHITE, HINGE BRG HOLE |
| 11 | WCI 5303917049 |
| 14 | 240494001 Frigidaire Refrigerator Plug Button |
| 17 | END CAP-BOTTOM (2) |
| 18 | HANDLE |
| 20 | WCI 5308010239 |
| 21 | SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2 |
| 22 | BEARING-HINGE |
| 26 | WCI 3204522 |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
