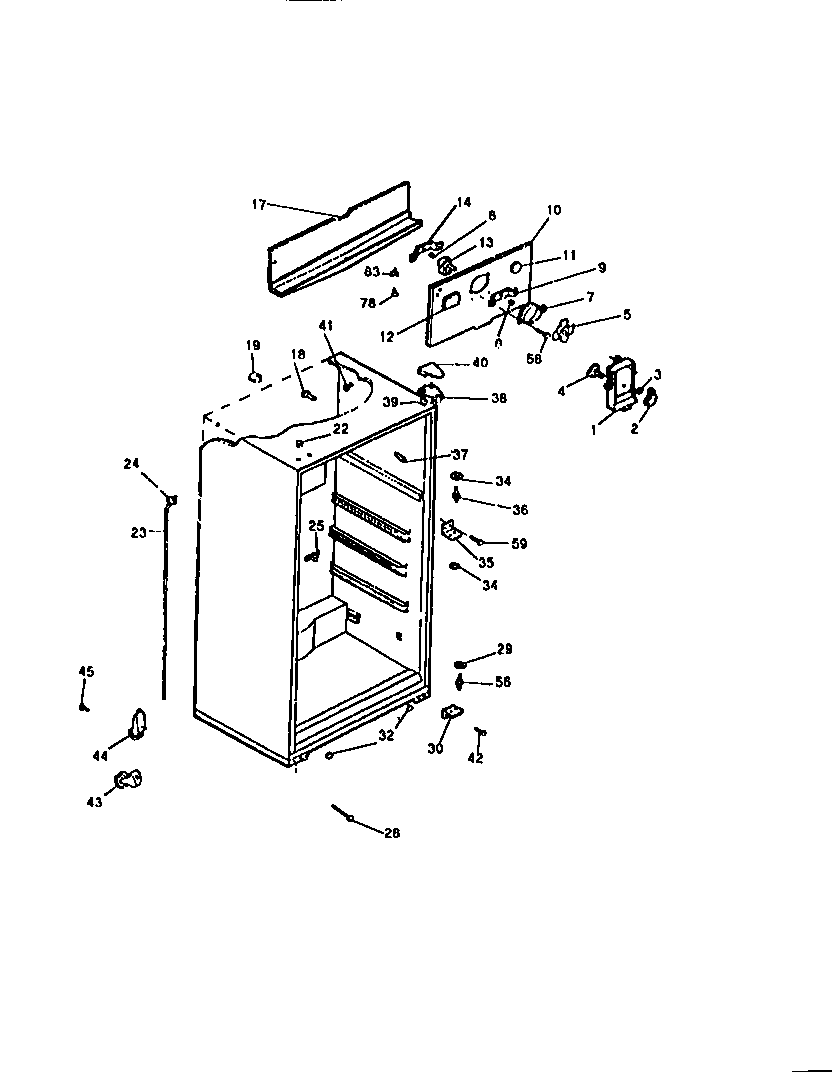

ATL152HK0 03 – CABINET WITH FAN ASSEMBLY

ATL152HK0 03 – CABINET WITH FAN ASSEMBLY

Written by

in

ATL152HK0 03 – CABINET WITH FAN ASSEMBLY

Products

PositionProduct
*49680PLUG, BUTTON, CABINET LINER (NI)
15304455650 Frigidaire Refrigerator Screw
1WCI 5303276180
2WCI 5308000081
3Nut,push-on
4WCI 3206110
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 3206135
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10WCI 3206119
115303208309 Frigidaire Refrigerator Plug Hole
12BUTTON – DECORATIVE PLUG
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 3206146
18SUPPORT-COIL COVER
19TUBE-RUBBER
22BUTTON-HINGE-WHEAT
23WCI 5303269702
24WCI 5303207353
25WCI 5303001361
25WCI 5308000056
28BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
29WASHER, .34 X .62 X .05, NYLON
30WCI 3206136
32PLUG-BUTTON
34WCI 5308000186
35BRACKET-CTR HINGE
36WCI 5308000184
37WCI 5303202338
38WCI 3206100
38TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39SHIM – UPPER HINGE
42241710601 Frigidaire Refrigerator Screw
43WCI 5308011326
43WCI 5308009760
43WCI 5300188673
43WCI 5308009790
44WCI 3206237
455304455651 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59SCREW – MULLION (2)
83WCI 5308000107
