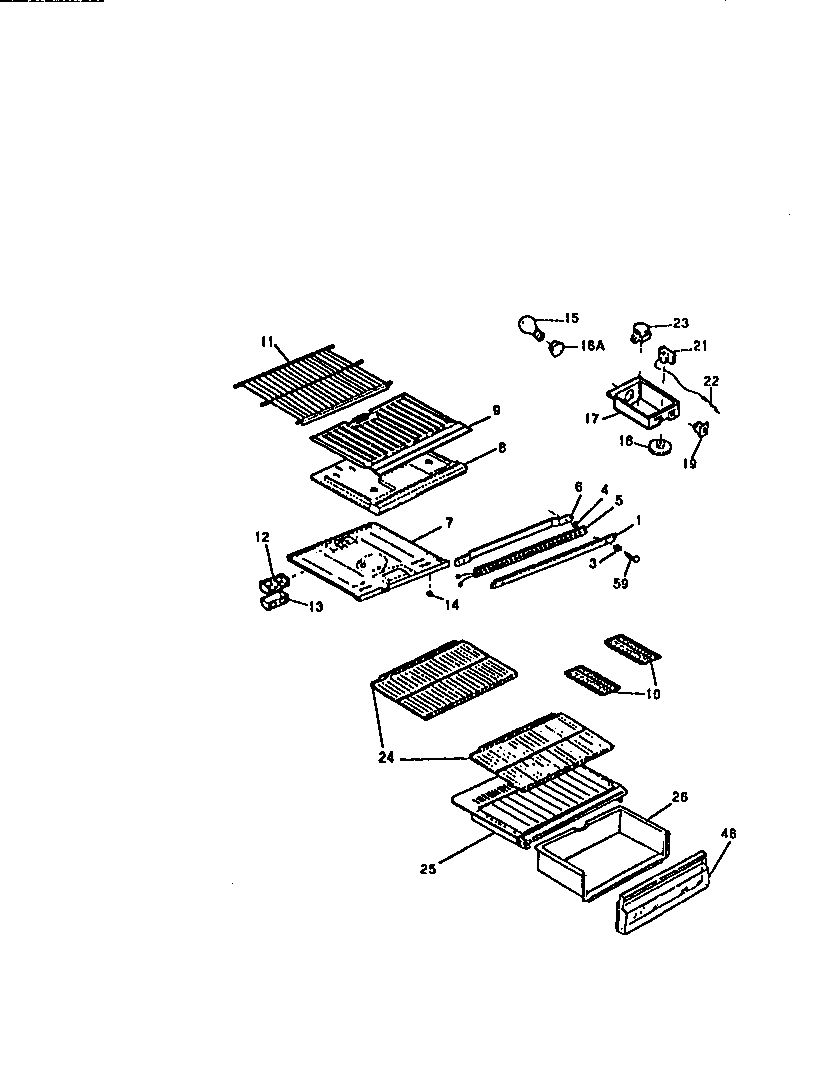

ATL152HK0 04 – SHELVES, CONTROLS, DIVIDER, MULLION

ATL152HK0 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

ATL152HK0 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 3206123
3WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
4SPACER-MULLION MTG, STEEL
5WCI 3206120
6WCI 5308003604
7WCI 3205268
7WCI 3206128
7WCI 5303001380
8WCI 3206131
9WCI 3206132
10215667501 Frigidaire Refrigerator Ice Tray Primary
115303282284 Frigidaire Wire Shelf
12DEFLECTRO, AIR, W/SEAL
12EXTENSION, AIR DEFLECTOR, WITH INSULATION
125303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
175304455650 Frigidaire Refrigerator Screw
17WCI 3206130
18WCI 5303209251
19WCI 3206129
21WCI 5303018894
21WCI 5303001260
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
235304455649 Frigidaire Refrigerator Screw
24WCI 5303210142
25WCI 5303276242
265303285386 Frigidaire Refrigerator Crisper Pan
46WCI 3206106
59SCREW – MULLION (2)
