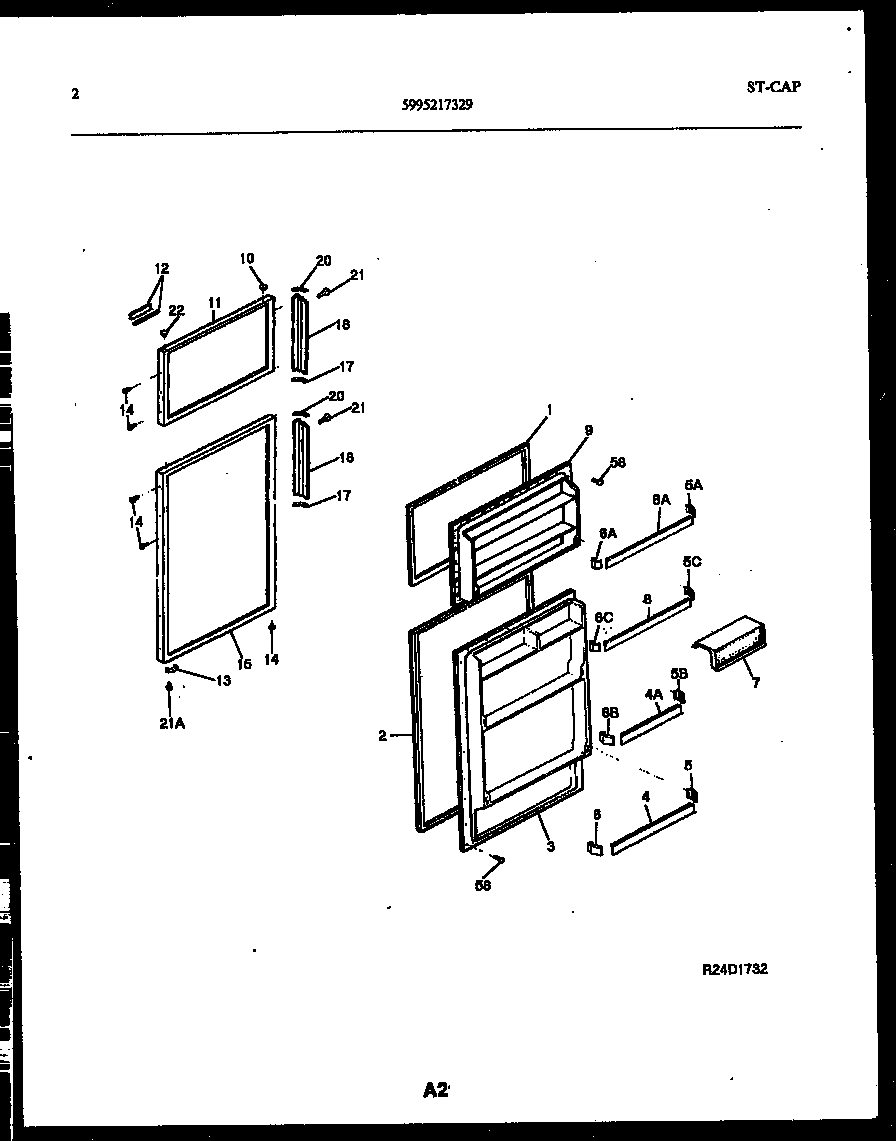

ATL152WK1 02 – DOOR PARTSadmin2025-04-26T08:50:36+00:00ATL152WK1 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | GASKET, FRZR DOOR, BROWN, MAGNETIC |
| 2 | 218730603 Frigidaire Door Gasket |
| 3 | WCI 5303284098 |
| 4A | WCI 5303276155 |
| 4 | DOOR RACK - REFR |
| 5B | SUPPORT-DOOR RACK, EXTENDS .56``, RH |
| 5A | 3206165 Frigidaire Bar Endcap Right Hand |
| 5 | WCI 3206150 |
| 5C | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 6C | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
| 6B | SUPPORT-DOOR RACK, EXTENDS .56``, LH |
| 6A | 3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support |
| 6 | WCI 3206151 |
| 7 | WCI 5303276149 |
| 8 | DOOR RACK-FREEZER-LWR |
| 8A | DOOR RACK - FREEZER - (2) |
| 9 | WCI 5303276335 |
| 10 | PLUG-BUTTON, WHITE, HINGE BRG HOLE |
| 11 | WCI 5303916963 |
| 12 | WCI 5303276130 |
| 13 | WCI 5308000255 |
| 14 | 240494001 Frigidaire Refrigerator Plug Button |
| 15 | WCI 5303916978 |
| 17 | END CAP-BOTTOM (2) |
| 18 | HANDLE |
