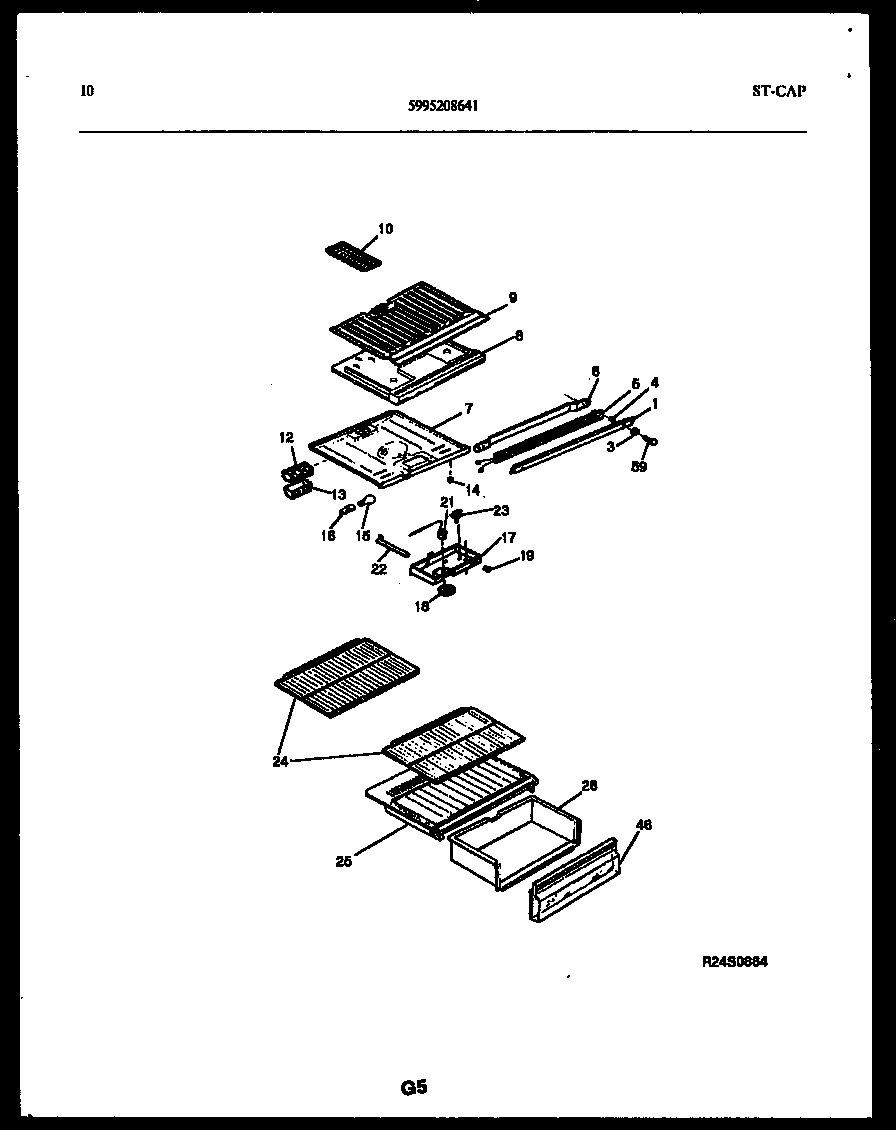

ATN130WK1 06 – SHELVES AND SUPPORTS

ATN130WK1 06 – SHELVES AND SUPPORTS

Written by

in

ATN130WK1 06 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3206121
3WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
4SPACER-MULLION MTG, STEEL
5WCI 3206120
6WCI 5308003604
7AWCI 5303001380
7WCI 5303270919
8WCI 5303270921
8A3205266 Frigidaire Refrigerator Edge Protector
9BOTTOM PANEL-FRZR
10215667501 Frigidaire Refrigerator Ice Tray Primary
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17WCI 3206130
17A5304455650 Frigidaire Refrigerator Screw
18WCI 5303209251
19WCI 3206129
21WCI 5303018894
21AWCI 5303001260
22HOUSING-TEMP SENSOR, PLASTIC
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24WCI 5303275954
25COVER-CRISPER PAN
26PAN-CRISPER, FULL-WIDTH
46WCI 3206106
59SCREW – MULLION (2)
