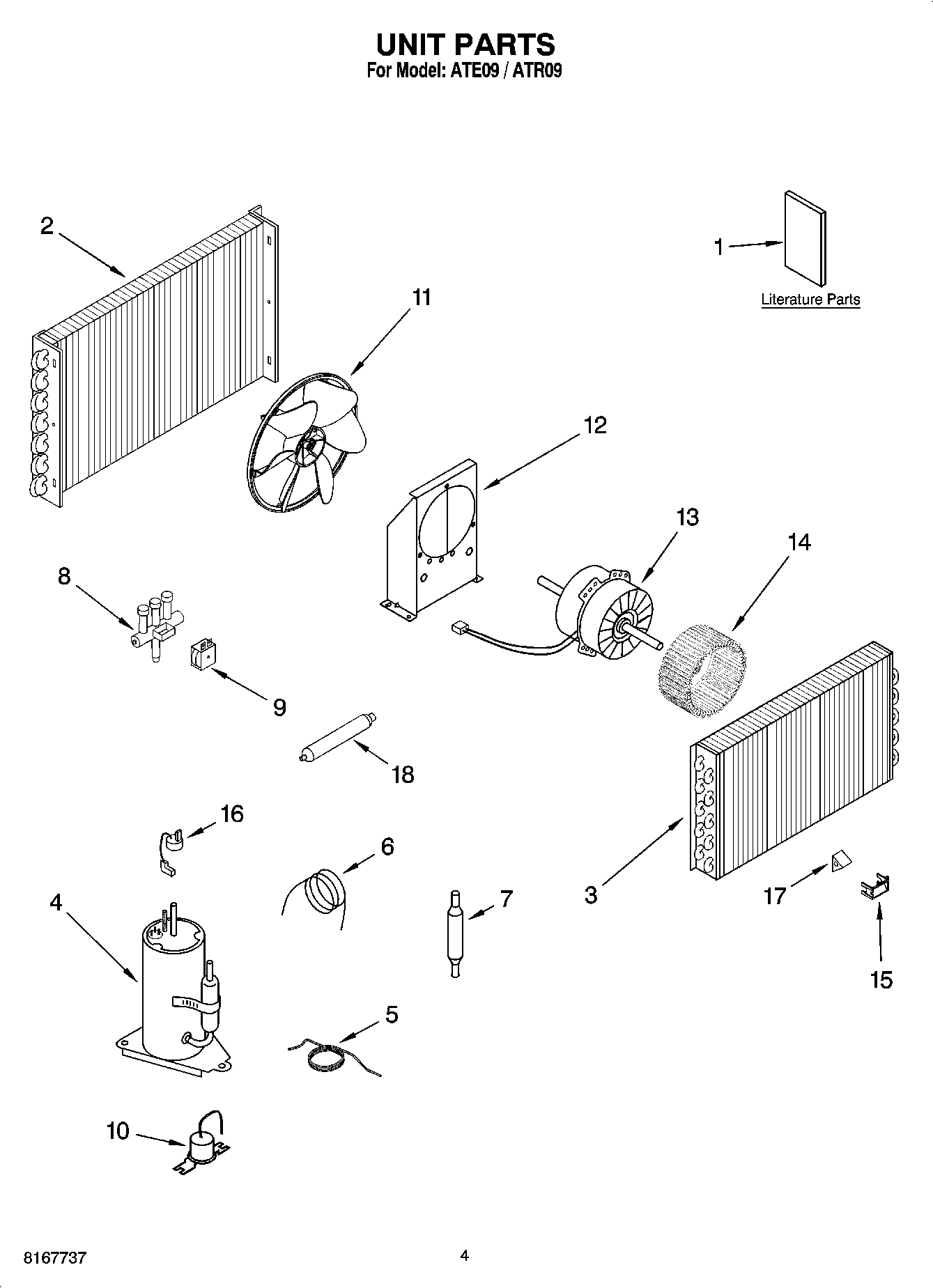

| 1 | Wiring Diagram (Mdl ATE074-Remote) |
| 1 | Wiring Diagram (Mdl ATE074-Standrd) |
| 1 | Manual, Installation (English) |
| 1 | Manual, Installation (French) |
| 1 | Wiring Diagram (Mdl ATR075-Remote) |
| 1 | Wiring Diagram (Mdl ATR075-Standrd) |
| 1 | Wiring Diagram (Mdl ATR074-Remote) |
| 1 | Wiring Diagram (Mdl ATR074-Standrd) |
| 1 | Wiring Diagram (Mdl ATE075-Remote) |
| 1 | Wiring Diagram (Mdl ATE075-Standrd) |
| 2 | Condenser (Non-Seacost Models) |
| 2 | Condenser (Seacoast Models) |
| 3 | EVAPORATOR |
| 4 | Compressor (265 Volt Models) |
| 4 | Compressor (230 Volt Models) |
| 6 | Restrictor Tube Heat Pump Units (Cooling Tube) |
| 7 | Valve, Check |
| 8 | Valve, Reversing w/o Coil |
| 9 | Solenoid Coil (230 Volt Models) |
| 9 | Solenoid Coil (265 Volt Models) |
| 10 | Valve, Drain |
| 11 | Blade, Fan (Condenser) |
| 12 | Bracket, Motor |
| 13 | Motor, Fan (265 Volt Models) |
| 13 | Motor, Fan (230 Volt Models) |
| 14 | Wheel, Blower (Evaporator) |
| 15 | Clip, Thermostat |
| 16 | Overload (265 Volt Models) |
| 17 | Anticipator |
| 18 | Dryer, Suction Tube |
| 18 | REFRIGERANT CHARGE 32.0oz For ATE09 Models 30.0oz For ATR09 Models |
