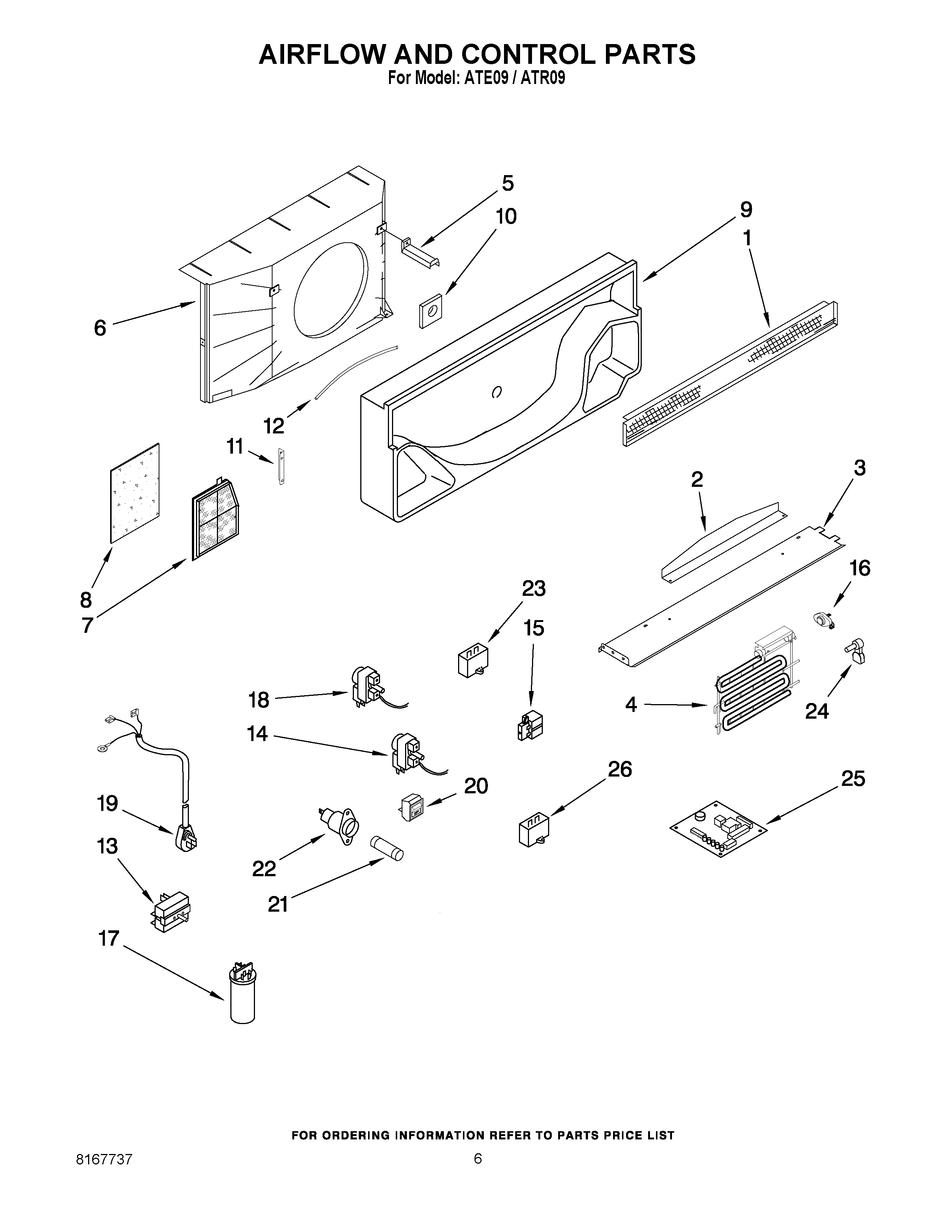

ATR0943RPP0 03 – AIRFLOW AND CONTROL PARTS

Products

PositionProduct
2Screen, Discharge
3Cover, Heater
4HEATER (3.4KW, 230 VOLT)
4HEATER (2.5KW, 265 VOLT)
4HEATER (5.0KW, 265 VOLT)
4HEATER (2.5KW, 230 VOLT)
4HEATER (3.4KW, 265 VOLT)
4HEATER (5.0KW, 230 VOLT)
5Brace, Support
6Shroud, Condenser
7Door, Fresh Air
8Insulation, Fresh Air Door
9SCROLL
10Seal, Motor
11Latch, Fresh Air Door
12Cable, Fresh Air
13Switch, Rotary (Heating & Cooling)
13Switch, Rotary (Cooling Only)
14THERMOSTAT
15Relay, Hot Start (230 Volt)
15Relay, Hot Start (265 Volt)
15Relay, Hot Start (24 Volt)
16Sensor, Hot Start
17Capacitor (230 Volt)
17Capacitor (265 Volt)
18Thermostat, Defrost
19Cord, Appliance (30 Amp, 5.0Kw-230V)
19Cord, Appliance (20 Amp, 3.4Kw-230V)
19Cord, Appliance (15 Amp, 2.5Kw-230V)
20Switch, Rocker
21Fuse, Time Delay (15 Amp (2.5Kw))
21Fuse, Time Delay (20 Amp (3.4Kw))
21FUSE, TIME DELAY (20 AMP (3.4KW))
22Holder, Fuse (15 Amp (2.5Kw))
22Holder, Fuse (20 Amp (3.4Kw))
22Holder, Fuse (30 Amp (5.0Kw))
23Relay, Remote for Heat Pump Units
24Switch, Limit (Resettable)
24Switch, Limit (One Shot)
25Terminal Board, Low Voltage for Remote Control Units
26WPL 8210076
26WPL 8210075
