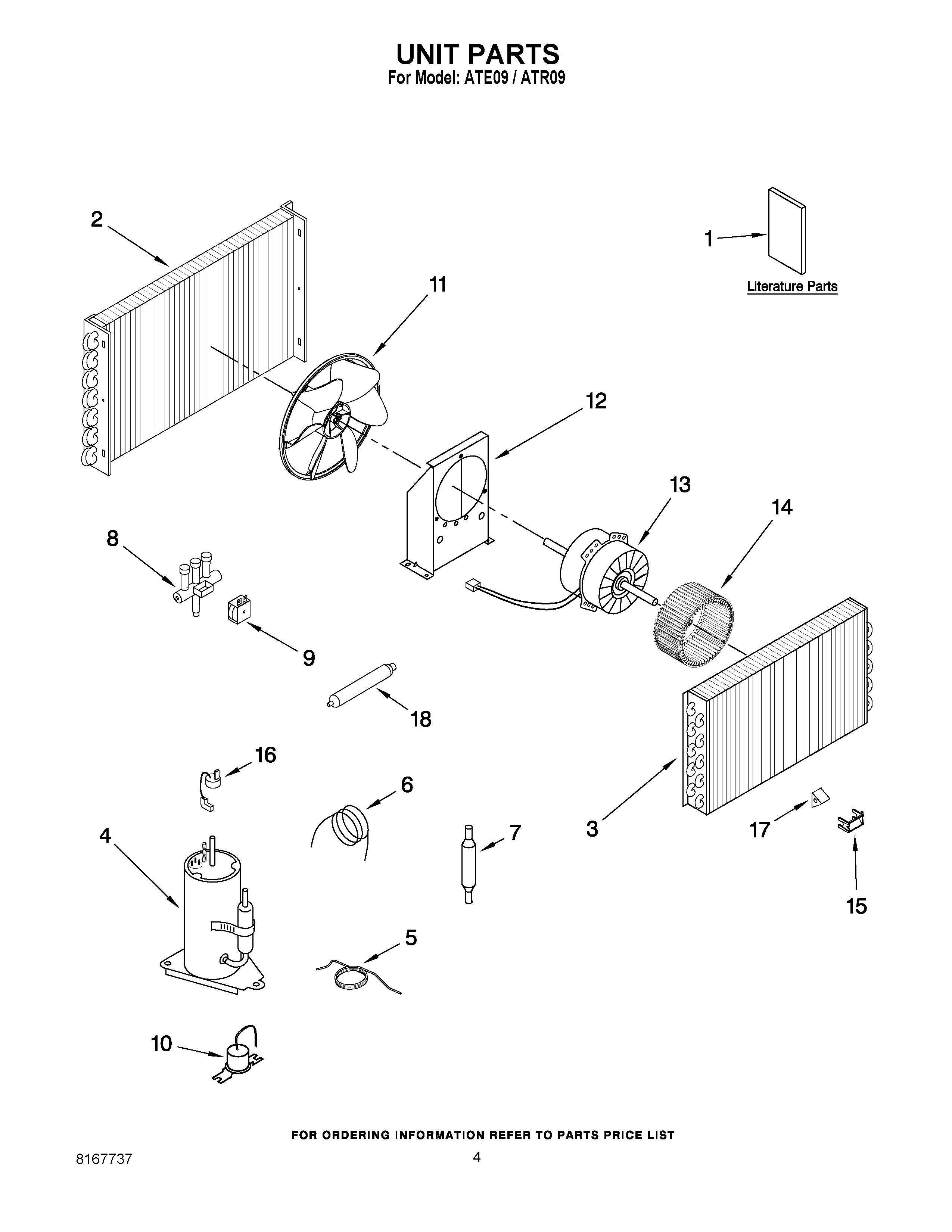

ATR0945RPP0 02 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIWPL W10150586
NITop Gask
NIRelay, Fan/RV/Cooling
NIThermostat, Suction Line
NIWPL W10150587
1Wiring Diagram (Mdl ATR075-Standrd)
1Wiring Diagram (Mdl ATE075-Remote)
1Wiring Diagram (Mdl ATE075-Standrd)
1Wiring Diagram (Mdl ATR074-Remote)
1Wiring Diagram (Mdl ATE074-Remote)
1Wiring Diagram (Mdl ATR074-Standrd)
1Wiring Diagram (Mdl ATE074-Standrd)
1Manual, Installation (English)
1Wiring Diagram (Mdl ATR075-Remote)
1Manual, Installation (French)
2Condenser (Non-Seacost Models)
2Condenser (Seacoast Models)
3EVAPORATOR
4Compressor (230 Volt Models)
4Compressor (265 Volt Models)
6Restrictor Tube Heat Pump Units (Cooling Tube)
7Valve, Check
8Valve, Reversing w/o Coil
9Solenoid Coil (230 Volt Models)
9Solenoid Coil (265 Volt Models)
10Valve, Drain
11Blade, Fan (Condenser)
12Bracket, Motor
13Motor, Fan (230 Volt Models)
13Motor, Fan (265 Volt Models)
14Wheel, Blower (Evaporator)
15Clip, Thermostat
16Overload (265 Volt Models)
16Overload (230 Volt Models)
17Anticipator
18Dryer, Suction Tube
