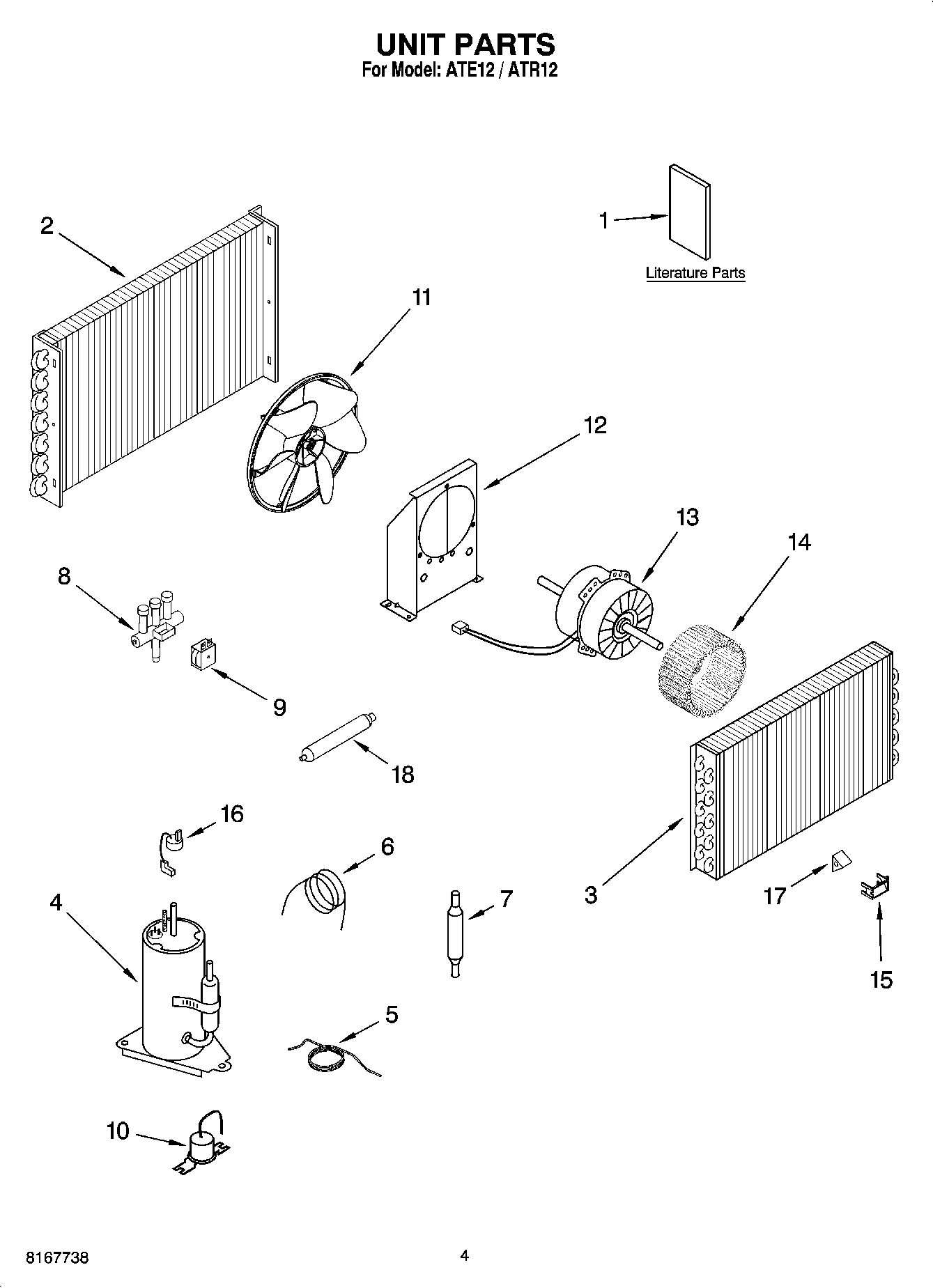

ATR12 02 – UNIT PARTS

Products

PositionProduct
1Wiring Diagram (Mdl ATE074-Remote)
1Wiring Diagram (Mdl ATE074-Standrd)
1Manual, Installation (English)
1Manual, Installation (French)
1Wiring Diagram (Mdl ATR075-Remote)
1Wiring Diagram (Mdl ATR075-Standrd)
1Wiring Diagram (Mdl ATR074-Remote)
1Wiring Diagram (Mdl ATR074-Standrd)
1Wiring Diagram (Mdl ATE075-Remote)
1Wiring Diagram (Mdl ATE075-Standrd)
2Condenser (Non-Seacost Models)
2Condenser (Seacoast Models)
3EVAPORATOR
4Compressor (265 Volt Models)
4Compressor (230 Volt Models)
5Restrictor Tube, Electric Units
6Restrictor Tube Heat Pump Units (Heating Tube)
6Restrictor Tube Heat Pump Units (Cooling Tube)
7Valve, Check
8Valve, Reversing w/o Coil
9Solenoid Coil (230 Volt Models)
9Solenoid Coil (265 Volt Models)
10Valve, Drain
11Blade, Fan (Condenser)
12Bracket, Motor
13Motor, Fan (230 Volt Models)
13Motor, Fan (265 Volt Models)
14Wheel, Blower (Evaporator)
15Clip, Thermostat
16Overload (265 Volt Models)
17Anticipator
18Dryer, Suction Tube
18REFRIGERANT CHARGE 31.0oz For ATE12 Models 28.0oz For ATR12 Models
