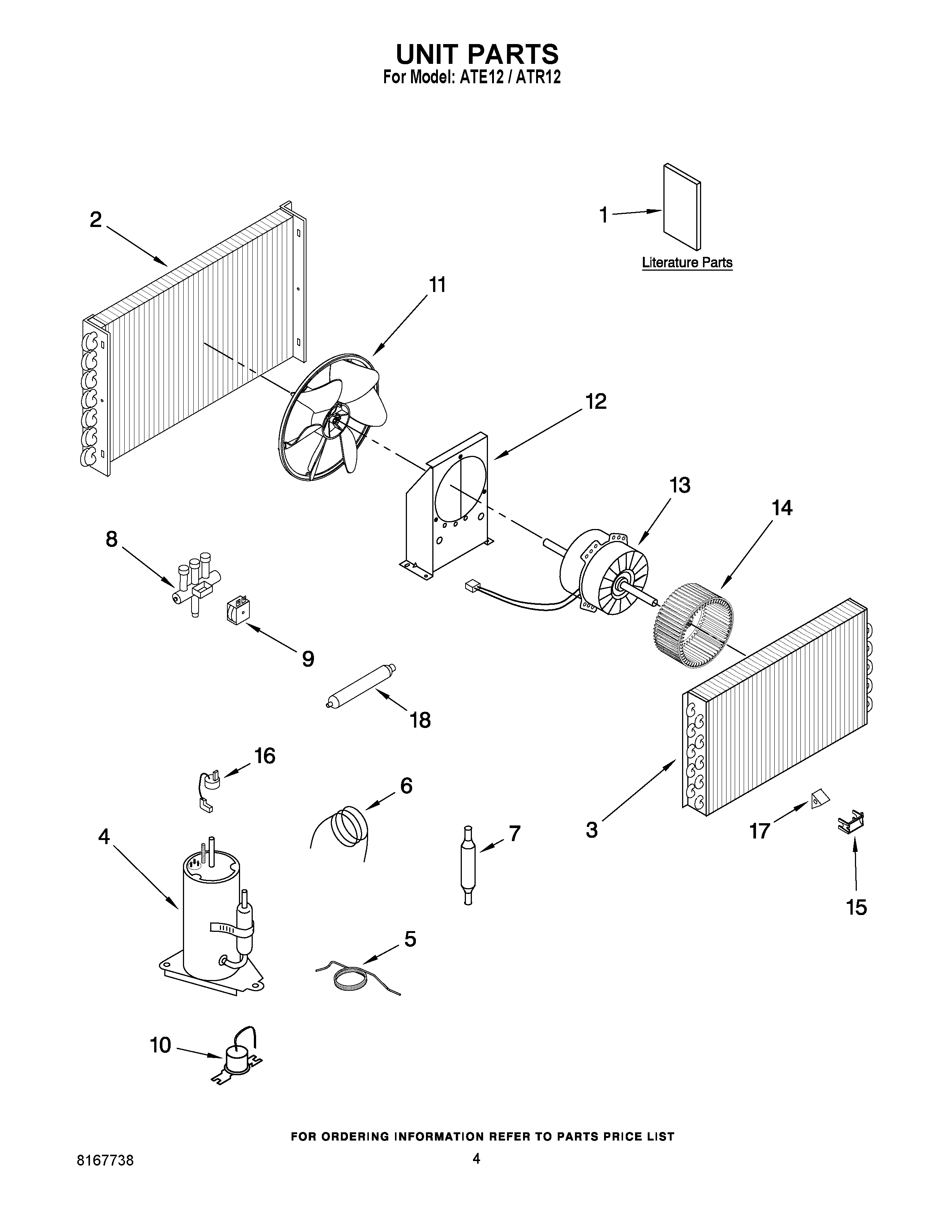

ATR1242RPP0 02 – UNIT PARTS

Products

PositionProduct
NIREFRIGERANT CHARGE (FOR ATE12 MODELS)
NIThermostat, Suction Line
NIRelay, Fan/RV/Cooling
NITop Gask
NIWPL W10150586
NIWPL W10150587
NIREFRIGERANT CHARGE (FOR ATR12 MODELS)
1Wiring Diagram (Mdl ATE074-Remote)
1Wiring Diagram (Mdl ATE074-Standrd)
1Manual, Installation (English)
1Wiring Diagram (Mdl ATR074-Remote)
1Wiring Diagram (Mdl ATR075-Remote)
1Wiring Diagram (Mdl ATR075-Standrd)
1Wiring Diagram (Mdl ATR074-Standrd)
1Wiring Diagram (Mdl ATE075-Remote)
1Wiring Diagram (Mdl ATE075-Standrd)
1Manual, Installation (French)
2Condenser (Non-Seacost Models)
2Condenser (Seacoast Models)
3EVAPORATOR
4Compressor (265 Volt Models)
4Compressor (230 Volt Models)
5Restrictor Tube, Electric Units
6Restrictor Tube Heat Pump Units (Heating Tube)
6Restrictor Tube Heat Pump Units (Cooling Tube)
7Valve, Check
8Valve, Reversing w/o Coil
9Solenoid Coil (230 Volt Models)
9Solenoid Coil (265 Volt Models)
10Valve, Drain
11Blade, Fan (Condenser)
12Bracket, Motor
13Motor, Fan (230 Volt Models)
13Motor, Fan (265 Volt Models)
14Wheel, Blower (Evaporator)
15Clip, Thermostat
16Overload (230 Volt Models)
16Overload (265 Volt Models)
17Anticipator
18Dryer, Suction Tube
