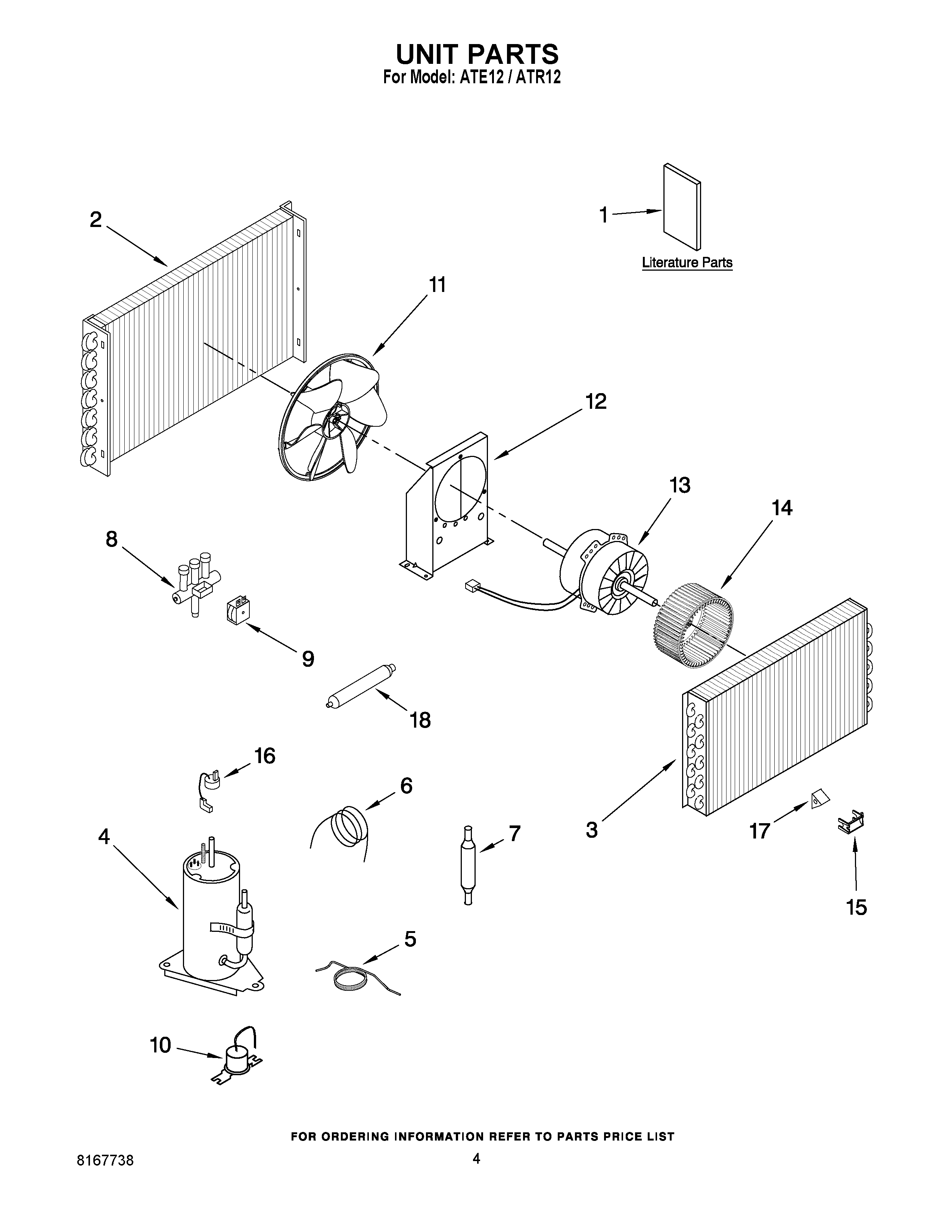

ATR1243BPP0 02 – UNIT PARTS

Products

Position	Product
NI	REFRIGERANT CHARGE (FOR ATE12 MODELS)
NI	Thermostat, Suction Line
NI	Relay, Fan/RV/Cooling
NI	Top Gask
NI	WPL W10150586
NI	WPL W10150587
NI	REFRIGERANT CHARGE (FOR ATR12 MODELS)
1	Wiring Diagram (Mdl ATE074-Remote)
1	Wiring Diagram (Mdl ATE074-Standrd)
1	Manual, Installation (English)
1	Wiring Diagram (Mdl ATR074-Remote)
1	Wiring Diagram (Mdl ATR075-Remote)
1	Wiring Diagram (Mdl ATR075-Standrd)
1	Wiring Diagram (Mdl ATR074-Standrd)
1	Wiring Diagram (Mdl ATE075-Remote)
1	Wiring Diagram (Mdl ATE075-Standrd)
1	Manual, Installation (French)
2	Condenser (Non-Seacost Models)
2	Condenser (Seacoast Models)
3	EVAPORATOR
4	Compressor (265 Volt Models)
4	Compressor (230 Volt Models)
5	Restrictor Tube, Electric Units
6	Restrictor Tube Heat Pump Units (Heating Tube)
6	Restrictor Tube Heat Pump Units (Cooling Tube)
7	Valve, Check
8	Valve, Reversing w/o Coil
9	Solenoid Coil (230 Volt Models)
9	Solenoid Coil (265 Volt Models)
10	Valve, Drain
11	Blade, Fan (Condenser)
12	Bracket, Motor
13	Motor, Fan (230 Volt Models)
13	Motor, Fan (265 Volt Models)
14	Wheel, Blower (Evaporator)
15	Clip, Thermostat
16	Overload (230 Volt Models)
16	Overload (265 Volt Models)
17	Anticipator
18	Dryer, Suction Tube
