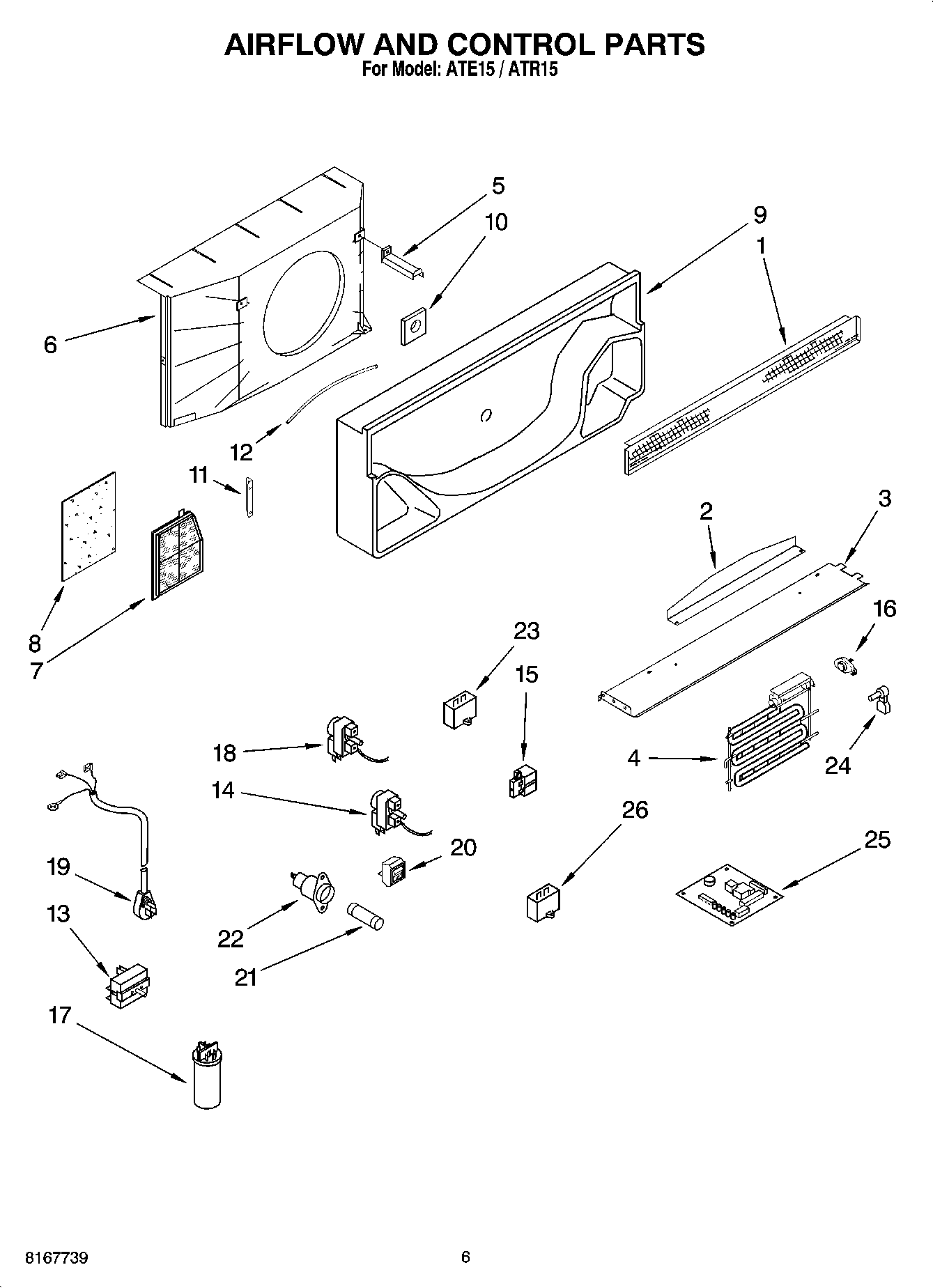

ATR15 03 – AIRFLOW AND CONTROL PATRS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	Chassis Shipping Pallet
	Label, Power Cord
	Label, Single Outlet
	Label, Heat Pump Defrost Control
	Label, Fan Cycle Switch
	Label, Power Disconnect
	Wall Sleeve Carton
	Chassis Inner Carton
	Pad, Chassis Carton Top
	Label, Compressor
	Supply Wire
	Overpack, Canadian Chassis
	Overpack, Canadian Sleeve
	Chassis Top Carton
1	Screen, Discharge
2	Baffle, Air
3	Cover, Heater
4	HEATER (3.4KW, 265 VOLT)
4	HEATER (2.5KW, 230 VOLT)
4	HEATER (5.0KW, 265 VOLT)
4	HEATER (2.5KW, 265 VOLT)
4	HEATER (3.4KW, 230 VOLT)
4	HEATER (5.0KW, 230 VOLT)
5	Brace, Support
6	Shroud, Condenser
7	Door, Fresh Air
8	Insulation, Fresh Air Door
9	SCROLL
10	Seal, Motor
11	Latch, Fresh Air Door
12	Cable, Fresh Air
13	Switch, Rotary (Heating & Cooling)
13	Switch, Rotary (Cooling Only)
14	THERMOSTAT
15	Relay, Hot Start (265 Volt)
15	Relay, Hot Start (230 Volt)
15	Relay, Hot Start (24 Volt)
16	Sensor, Hot Start
17	Capacitor (230 Volt)
17	Capacitor (265 Volt)
18	Thermostat, Defrost
19	Cord, Appliance (15 Amp, 2.5Kw-230V)
19	Cord, Appliance (20 Amp, 3.4Kw-230V)
19	Cord, Appliance (30 Amp, 5.0Kw-230V)
20	Switch, Rocker
21	FUSE, TIME DELAY (20 AMP (3.4KW))
21	Fuse, Time Delay (20 Amp (3.4Kw))
21	Fuse, Time Delay (15 Amp (2.5Kw))
22	Holder, Fuse (15 Amp (2.5Kw))
22	Holder, Fuse (20 Amp (3.4Kw))
22	Holder, Fuse (30 Amp (5.0Kw))
23	Relay, Remote for Heat Pump Units
24	Switch, Limit (One Shot)
24	Switch, Limit (Resettable)
25	Terminal Board, Low Voltage for Remote Control Units
26	WPL 8210076
26	WPL 8210075
