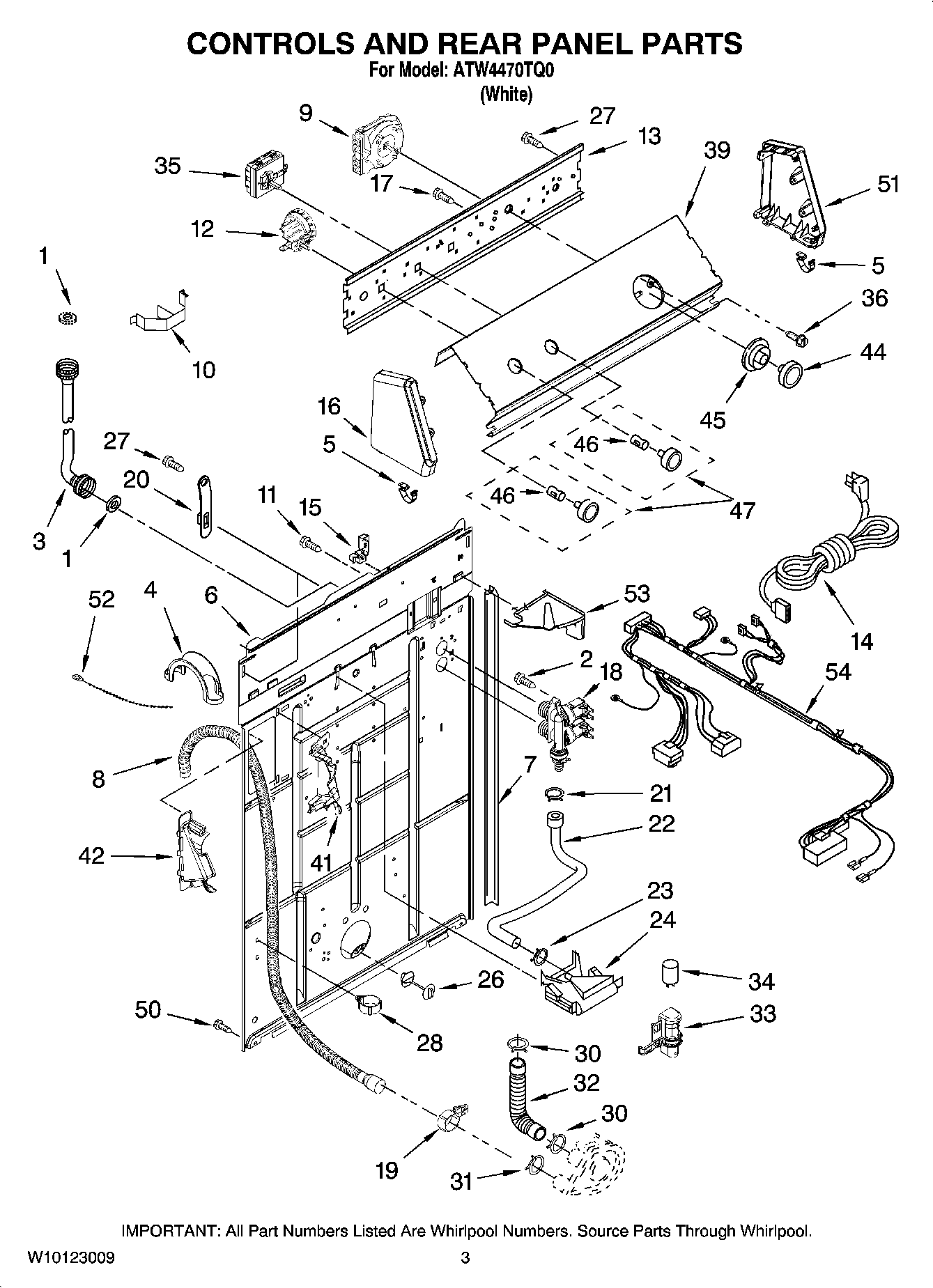

ATW4470TQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	ACCESSORY PARTS, WASHER, INLET HOSE
2	SCREW
3	Hose, Water Inlet (2) (Blue Coupler)
3	Hose, Water Inlet (Hot Water)
4	U-Bend
5	MAY 8312709
6	MAY 8318015
7	MAY 62747
8	Drain Hose Assembly (Includes Items 28 & 32)
9	Timer (Motor Not A Service Part)
10	Clip, Harness & Pressure Switch
11	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
12	MAY 8577844
13	MAY 8579677
14	Cord, Power
15	MAY 3952821
16	Cap, End (L.H.) (White)
17	SCREW
18	Valve, Water Inlet W/Thermistor
19	MAY 8541668
20	Strap, Console
21	MAY 301958
22	MAY 8317974
23	MAY 370450
24	Thermister, Inlet
26	MAY 8519200
27	SCREW,8-18 X 3/8
28	MAY 8541667
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	MAY 8318046
34	MAY 8572717
35	MAY W10113058
36	SCREW
39	MAY W10089670
41	MAY 8541669
42	MAY 8541658
44	MAY W10110061
45	MAY W10110062
46	CLIP, SPRING
47	Knob, Control (1) (White)
50	Screw, Mixing Valve Mounting
51	Cap, End (R.H.) (White)
52	MAY 3347868
53	MAY 8539874
54	MAY W10119877
