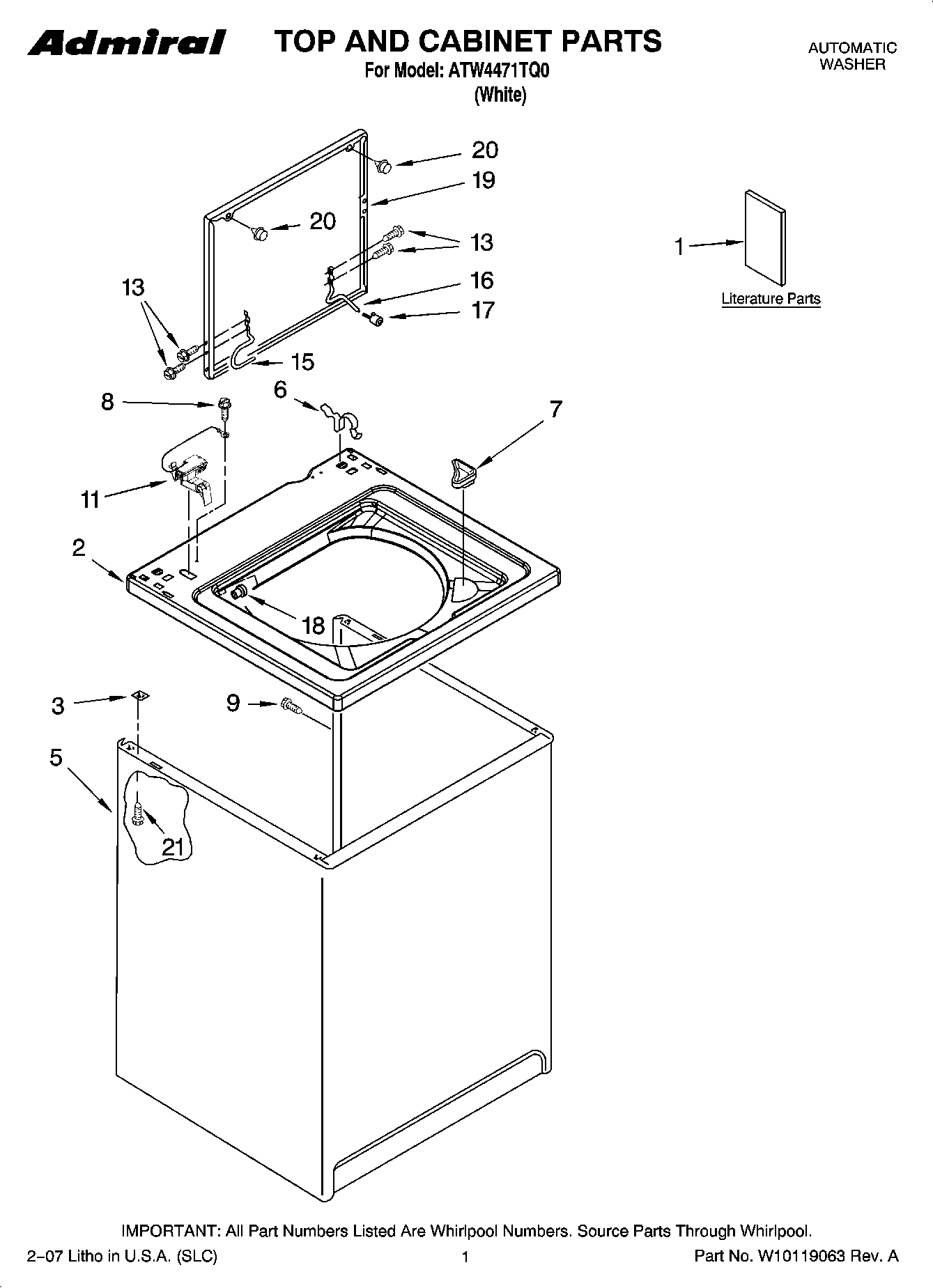

ATW4471TQ0 01 – TOP AND CABINET PARTS

Written by

Products

Position	Product
1	MAY 8578910
1	MAY W10092681
1	MAY W10044800
1	MAY W10092687
1	MAY W10092722
2	MAY 8559483
3	MAY 62750
5	Cabinet
6	MAY 62780
7	MAY 3362952
8	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
9	SCREW
11	MAY 8318084
13	Screw And Washer
15	MAY 8318088
16	HINGE, LID (RIGHT HAND)
17	MAY 19119
18	Hinge, Bearing (2)
19	MAY W10093681
20	MAY 9724509
21	SCREW
