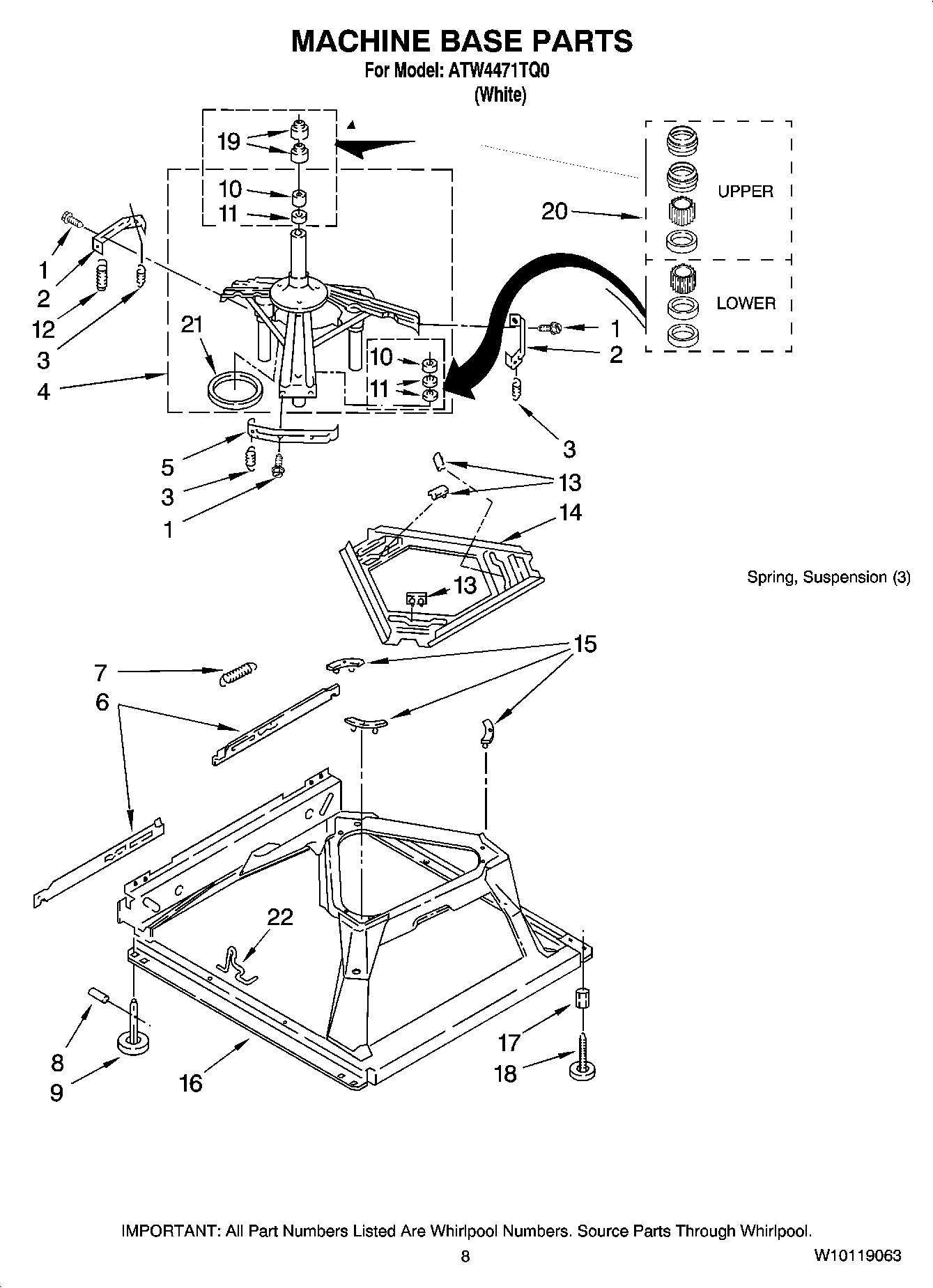

ATW4471TQ0 05 – MACHINE BASE PARTSadmin2025-04-26T09:12:11+00:00ATW4471TQ0 05 – MACHINE BASE PARTS
Products
| Position | Product |
|---|
| 1 | Screw, 10-32 x 5/8 |
| 2 | MAY 64067 |
| 3 | SPRING, SUSPENSION(3) |
| 4 | MAY 8575214 |
| 5 | MAY 64065 |
| 6 | MAY 63466 |
| 7 | MAY 62597 |
| 8 | MAY 62837 |
| 9 | MAY 62596 |
| 10 | MAY 8546455 |
| 11 | MAY 357409 |
| 12 | MAY 388492 |
| 13 | MAY 62568 |
| 14 | MAY 3946509 |
| 15 | MAY 3363660 |
| 16 | Base Assembly (Includes Items 6, 7, 8, 9, 13, 14, 15 & 22) |
| 17 | Nut, 3/8-16 |
| 18 | MAY W10001130 |
| 19 | Seal, Centerpost |
| 20 | MAY 285203 |
| 21 | MAY 63134 |
| 22 | MAY 63806 |
