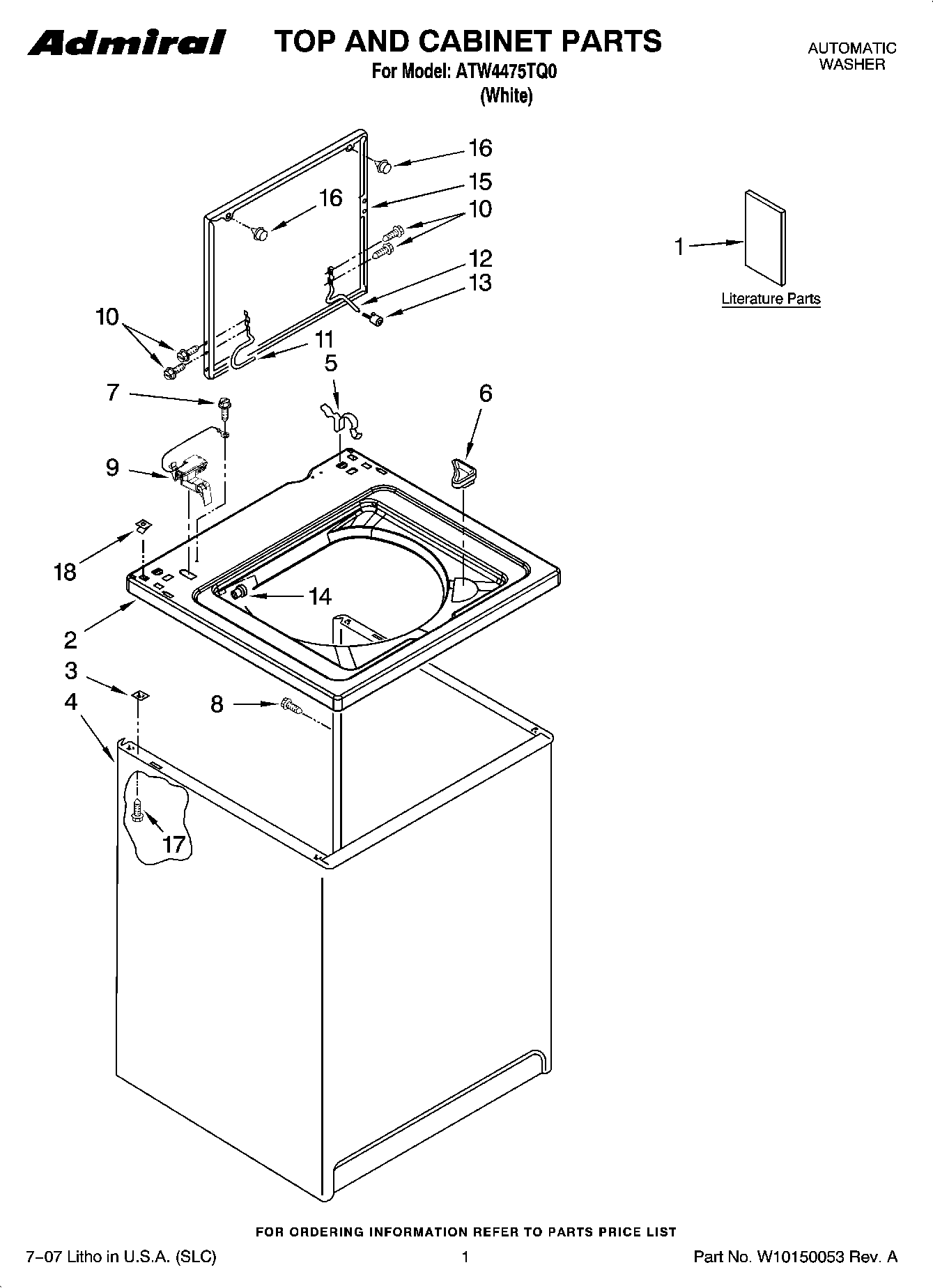

ATW4475TQ0 01 – TOP AND CABINET PARTS

ATW4475TQ0 01 – TOP AND CABINET PARTS

Written by

in

ATW4475TQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1MAY W10123189
1MAY W10118358
1MAY W10092687
1MAY W10092681
1MAY W10044800
2MAY 8318064
3MAY 62750
4Cabinet
5MAY 62780
6MAY 3362952
7SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
8SCREW
9MAY 8318084
10Screw And Washer
11MAY 8318088
12HINGE, LID (RIGHT HAND)
13MAY 19119
14Hinge, Bearing (2)
15MAY W10093681
16MAY 9724509
17SCREW
18Nut, Push-In
