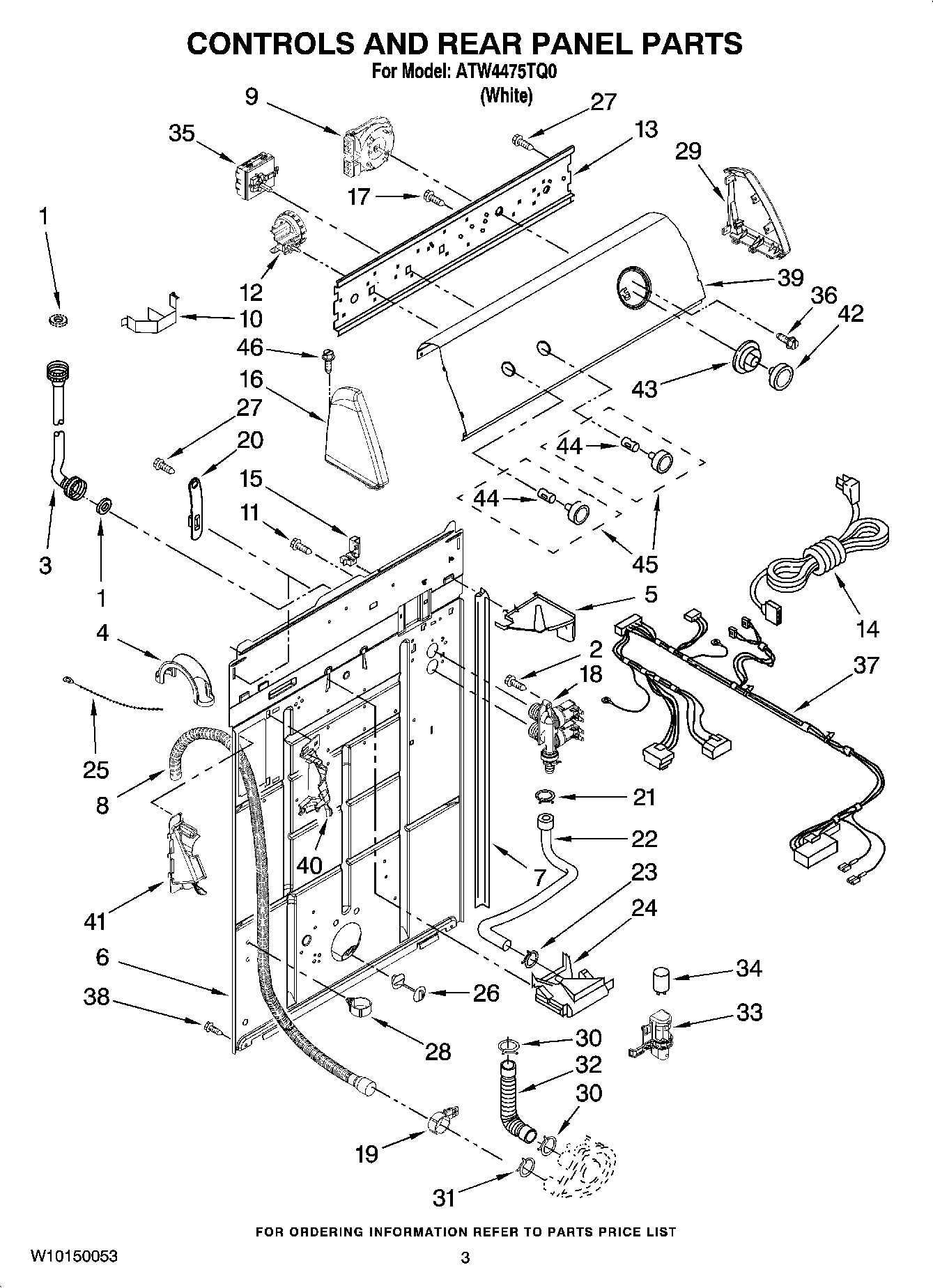

ATW4475TQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	ACCESSORY PARTS, WASHER, INLET HOSE
2	SCREW
3	Hose, Water Inlet (Hot Water)
3	Hose, Water Inlet (2) (Blue Coupler)
4	U-Bend
5	MAY 8539874
6	MAY 8318015
7	MAY 62747
8	Drain Hose Assembly (Includes Items 22, 28 & 32)
9	Timer (Motor Not A Service Part)
10	Clip, Harness & Pressure Switch
11	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
12	MAY 8577844
13	MAY 3948608
14	Cord, Power
15	MAY 3952821
16	MAY 8271365
17	SCREW
18	Valve, Water Inlet W/Thermistor
19	MAY 8541668
20	Strap, Console
21	MAY 301958
22	MAY 8317974
23	MAY 370450
24	Thermister, Inlet
25	MAY 3347868
26	MAY 8519200
27	SCREW,8-18 X 3/8
28	MAY 8541667
29	MAY 8271359
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	MAY 8318046
34	MAY 8572717
35	MAY W10113058
36	SCREW
37	MAY W10118361
38	Screw, Mixing Valve Mounting
39	MAY W10140278
40	MAY 8541669
41	MAY 8541658
42	MAY 8538949
43	MAY 8538955
44	CLIP, SPRING
45	MAY 8538957
46	Screw, Console
