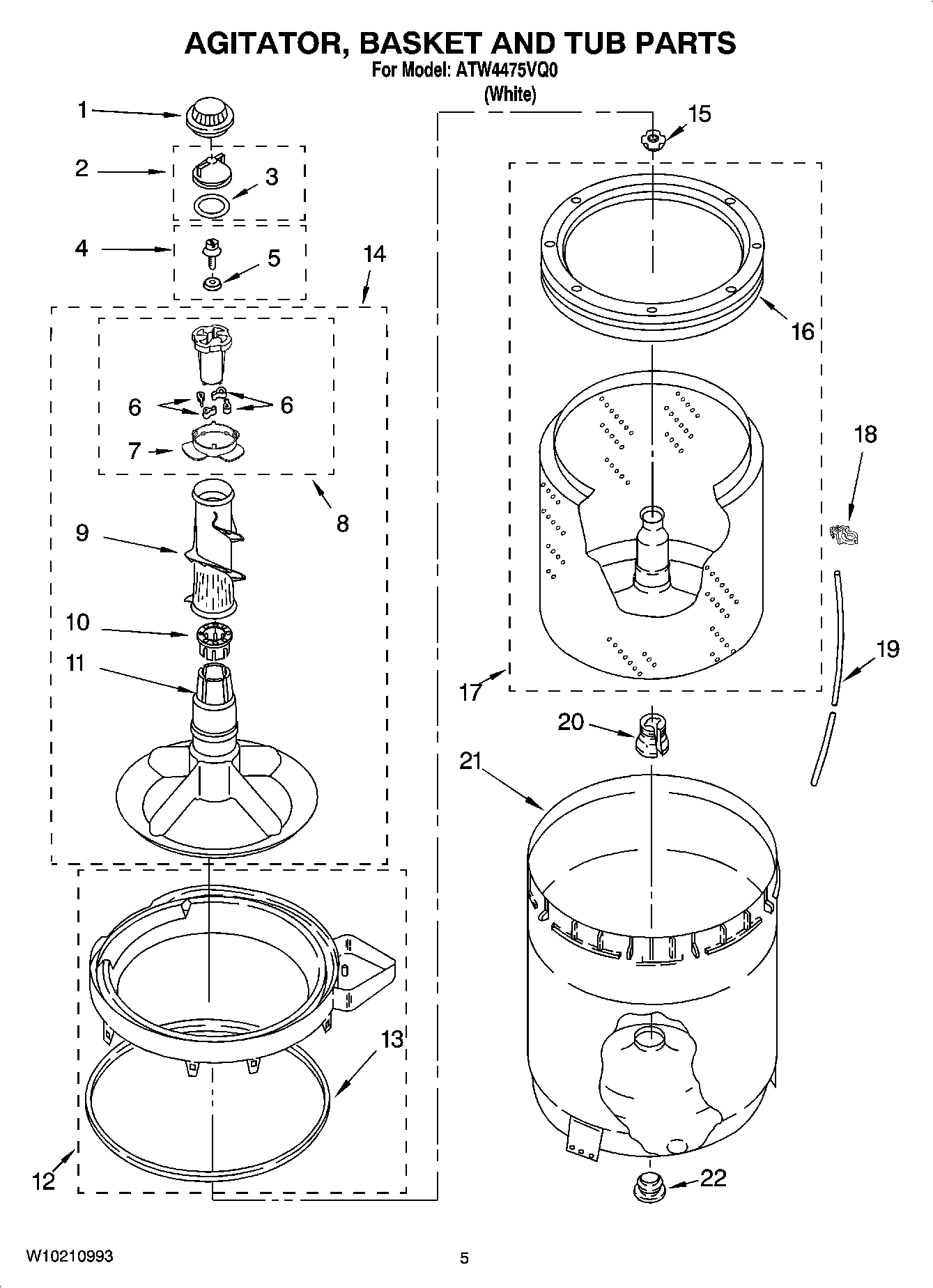

ATW4475VQ0 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1MAY 3355758
2MAY 3354733
3MAY W10072840
4Screw & Washer
5MAY 3949550
6Dog, Agitator (4)
7BEARING, CAM
8MAY 3363663
9MOVER, CLOTHES
10SPACER, THRUST
11MAY 3347288
12Tub Ring
13MAY 3976308
14MAY 3348117
15MAY 21366
16Ring, Balance
17MAY 8526017
18Clip, Harness (1)
19MAY 3347780
20Block, Drive
21MAY 63849
22MAY 383727
