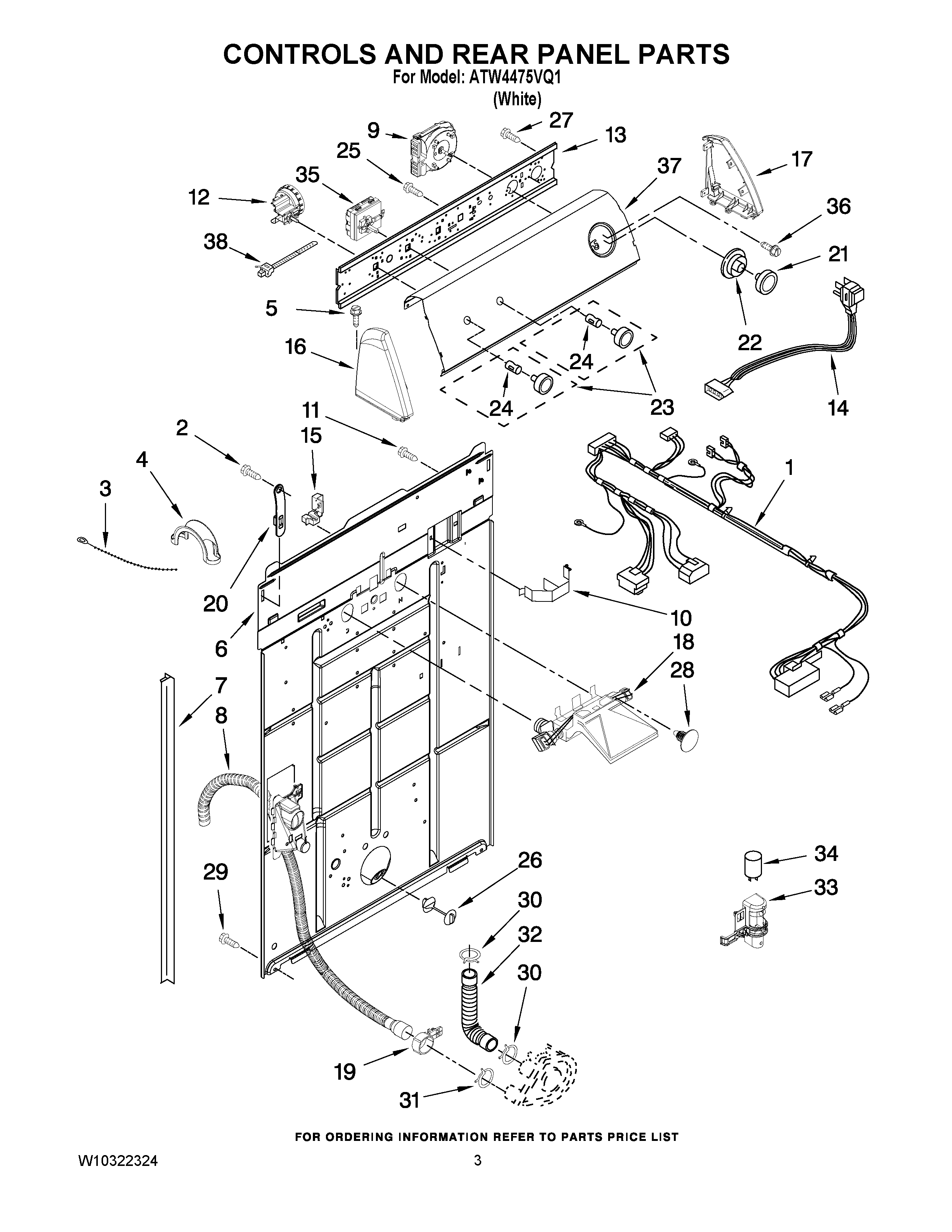

ATW4475VQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	HARNESS, WIRING (FOR DETAIL SEE PAGES 9 & 10)
2	SCREW
3	MAY 3347868
4	U-Bend
5	Screw, Console
6	MAY W10194450
7	MAY 62747
8	MAY W10189267
9	MAY W10199989
10	Clip, Harness & Pressure Switch
11	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
12	MAY W10231403
13	MAY 3948608
14	Cord, Power
15	MAY 3952821
16	MAY 8271365
17	MAY 8271359
18	MAY W10144820
19	MAY 8541668
20	Strap, Console
21	MAY 8538949
22	MAY 8538955
23	MAY 8538957
24	CLIP, SPRING
25	SCREW
26	MAY 8519200
27	SCREW,8-18 X 3/8
28	RETAINER, PUSH-IN
29	Screw, Mixing Valve Mounting
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	MAY 8318046
34	MAY 8572717
35	MAY W10184148
36	SCREW
37	MAY W10240450
38	MAY W10231379
