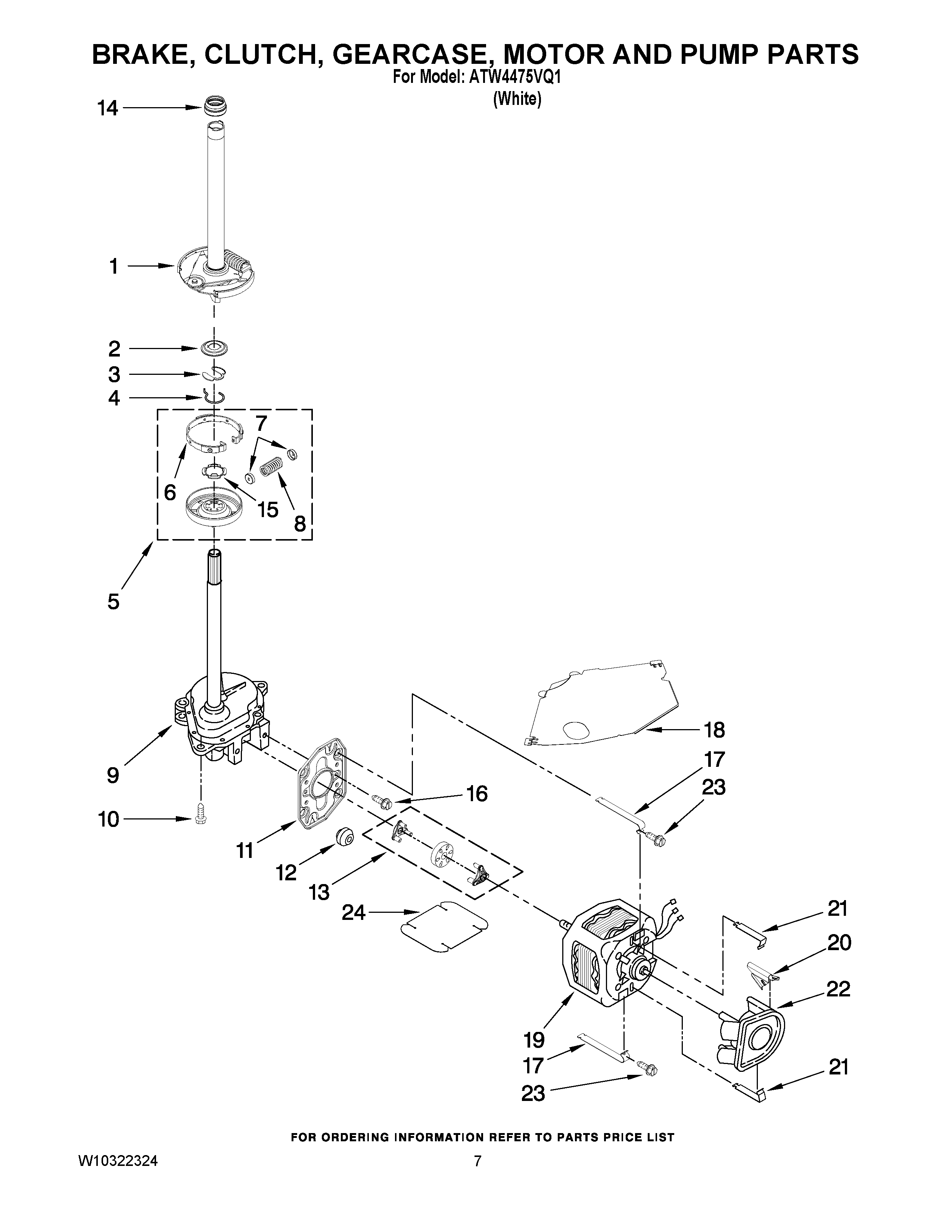

ATW4475VQ1 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	MAY 388952
2	MAY 63292
3	MAY 62697
4	MAY 63283
5	MAY 3951311
6	Band And Lining (Includes Illus. 7 & 8)
7	MAY 62646
8	SPRING & DAMPER ASSEMBLY
9	Gearcase (Complete) (Refer To Page 12 For Further Breakdown)
10	Screw, 5/16-24 x 5/8
11	MAY 62611
12	MAY 62691
13	Coupling, Motor & Isolating
14	MAY 8577374
15	MAY 3355454
16	MAY 3400516
17	MAY W10086010
18	MAY 3362089
19	MOTOR, MAIN DRIVE (SPRING P/N 388492 MUST BE ORDERED WHEN REPLACING MOTOR
20	MAY W10286361
21	Retainer, Pump
22	MAY W10288040
23	MAY 3387485
24	MAY 3946532
