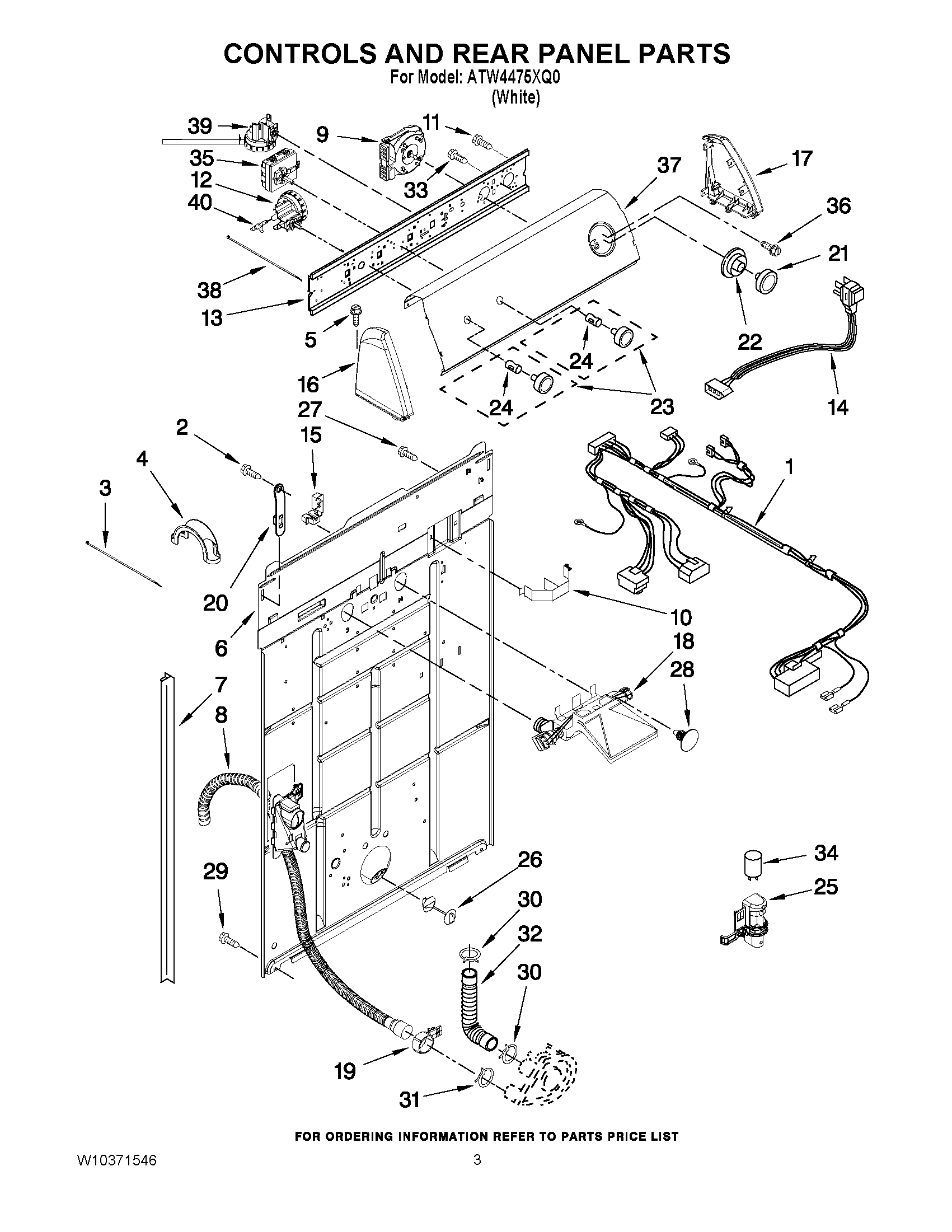

ATW4475XQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WIRING, HARNESS
2	SCREW
3	TIE, CABLE
4	U-Bend
5	Screw, Console
6	MAY W10194450
7	MAY 62747
8	MAY W10189267
9	MAY W10199989
10	Clip, Harness & Pressure Switch
11	SCREW,8-18 X 3/8
12	MAY W10379548
13	MAY 3948608
14	Cord, Power
15	MAY 3952821
16	MAY 8271365
17	MAY 8271359
18	VALVE, WATER INLET W/THERMISTOR & VACCUM BREAK
19	MAY 8541668
20	Strap, Console
21	MAY 8538949
22	MAY 8538955
23	MAY 8538957
24	CLIP, SPRING
25	MAY 8318046
26	MAY 8519200
27	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
28	RETAINER, PUSH-IN
29	Screw, Mixing Valve Mounting
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	SCREW
34	MAY 8572717
35	MAY W10184148
36	SCREW
37	MAY W10339553
38	TIE WIRE
39	MAY W10379551
40	FITTING, PRESSURE HOSE TEE
