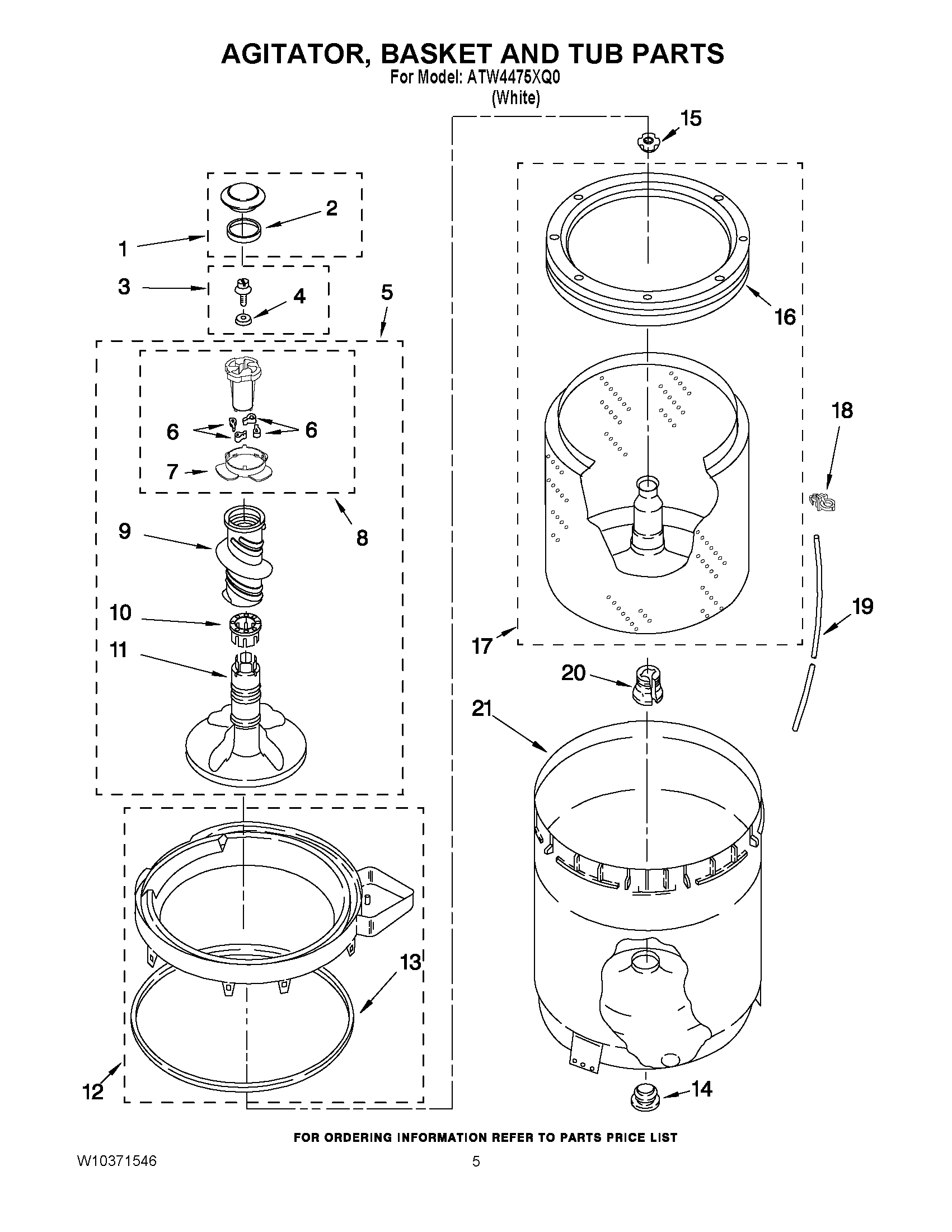

ATW4475XQ0 03 – AGITATOR, BASKET AND TUB PARTS

ATW4475XQ0 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

ATW4475XQ0 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 63973
2	MAY 358912
3	Screw & Washer
4	MAY 3949550
5	AGITATOR, COMPLETE
6	Dog, Agitator (4)
7	BEARING, CAM
8	Cam, Driven
9	MAY 3360824
10	SPACER, THRUST
11	MAY 389386
12	Tub Ring
13	MAY 3976308
14	MAY 383727
15	MAY 21366
16	Ring, Balance
17	MAY 8526017
18	Clip, Harness (1)
19	MAY W10297437
20	Block, Drive
21	MAY 63849
