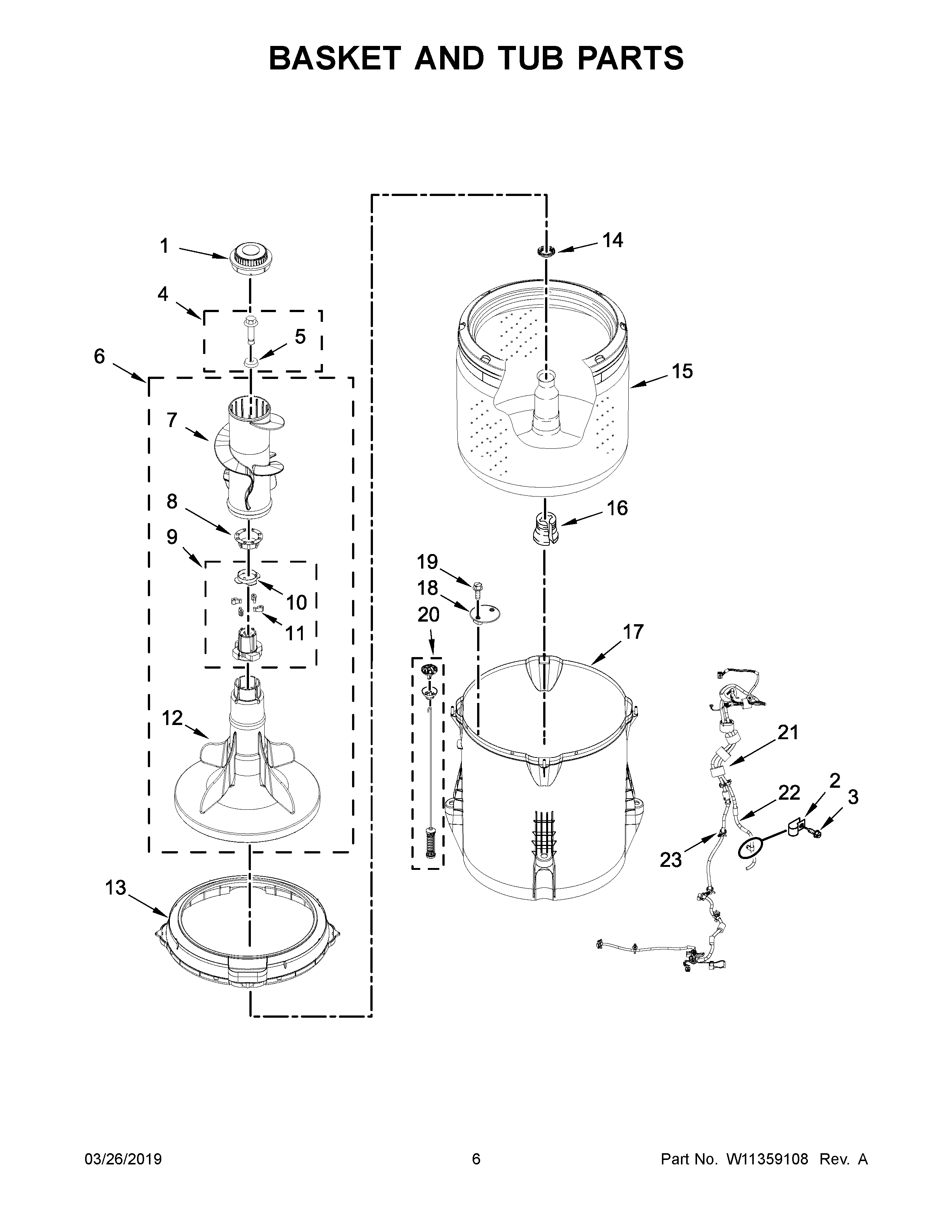

ATW4516HW0 04 – BASKET AND TUB PARTS

ATW4516HW0 04 – BASKET AND TUB PARTS

Written by

in

ATW4516HW0 04 – BASKET AND TUB PARTS

Products

Position	Product
1	MAY 3355758
2	CLAMP, CABLE
3	SCREW
4	SCREW & WASHER
5	MAY 3949550
6	MAY 3348117
7	MOVER, CLOTHES
8	SPACER, THRUST
9	MAY 3948431
10	BEARING, CAM
11	Dog, Agitator (4)
12	MAY 3347288
13	MAY W10531289
14	MAY 21366
15	MAY W10554251
16	Block, Drive
17	TUB (INCLUDES TUB SEAL)
18	MAY W10215093
19	Screw
20	MAY W10821951
21	MAY W10903245
22	MAY W10520039
23	MAY W10267532
