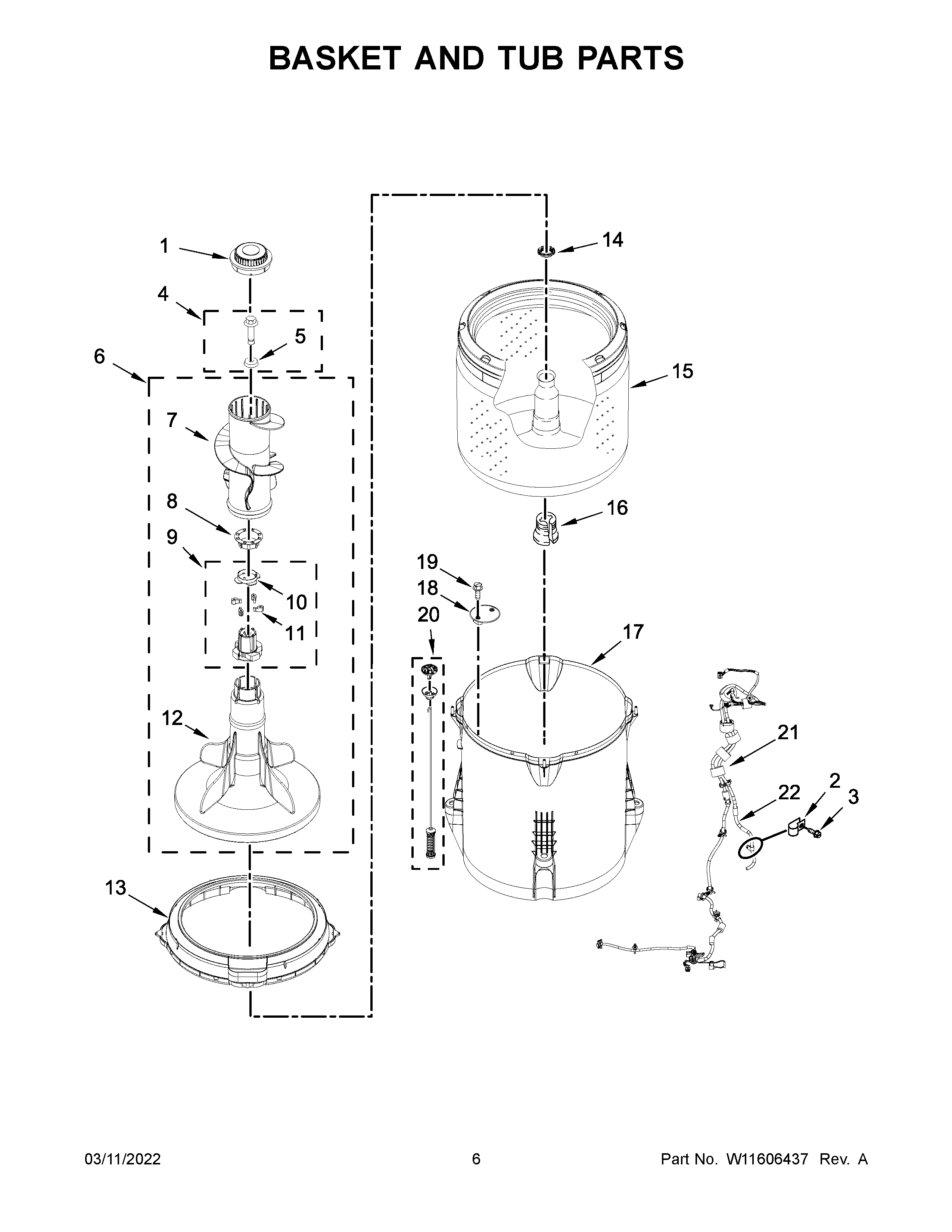

ATW4516MW0 04 – BASKET AND TUB PARTS

ATW4516MW0 04 – BASKET AND TUB PARTS

Written by

in

ATW4516MW0 04 – BASKET AND TUB PARTS

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2W10005430 Whirlpool Clamp
3WPW10109200 Whirlpool Screw
4W10772621 Whirlpool Washplate Screw
5WP3949550 Whirlpool Gasket Assembly
6285565 Whirlpool Agitator Assembly
7WP3348752 Whirlpool Agitator Mover
8285587 Whirlpool Thrust Washer
9285811 Whirlpool Washer Agitator Repair Kit
10WP3363661 Whirlpool Bearing Cam
1180040 Whirlpool Washer Agitator Dog Kit
12AGITATOR
13WPW10531289 Whirlpool Tub Ring
14WP21366 Whirlpool Spanner Nut
15W10554251 Whirlpool Basket
16WP389140 Whirlpool Drive Block or Bell
17W10371566 Whirlpool Outer Tub
18WPW10215093 Whirlpool Filter
19WP8533928 Whirlpool Refrigerator Screw
20W10780045 Whirlpool Suspension Rod
21W11448788 Whirlpool Wire Harness
22W10846364 Whirlpool Hose
