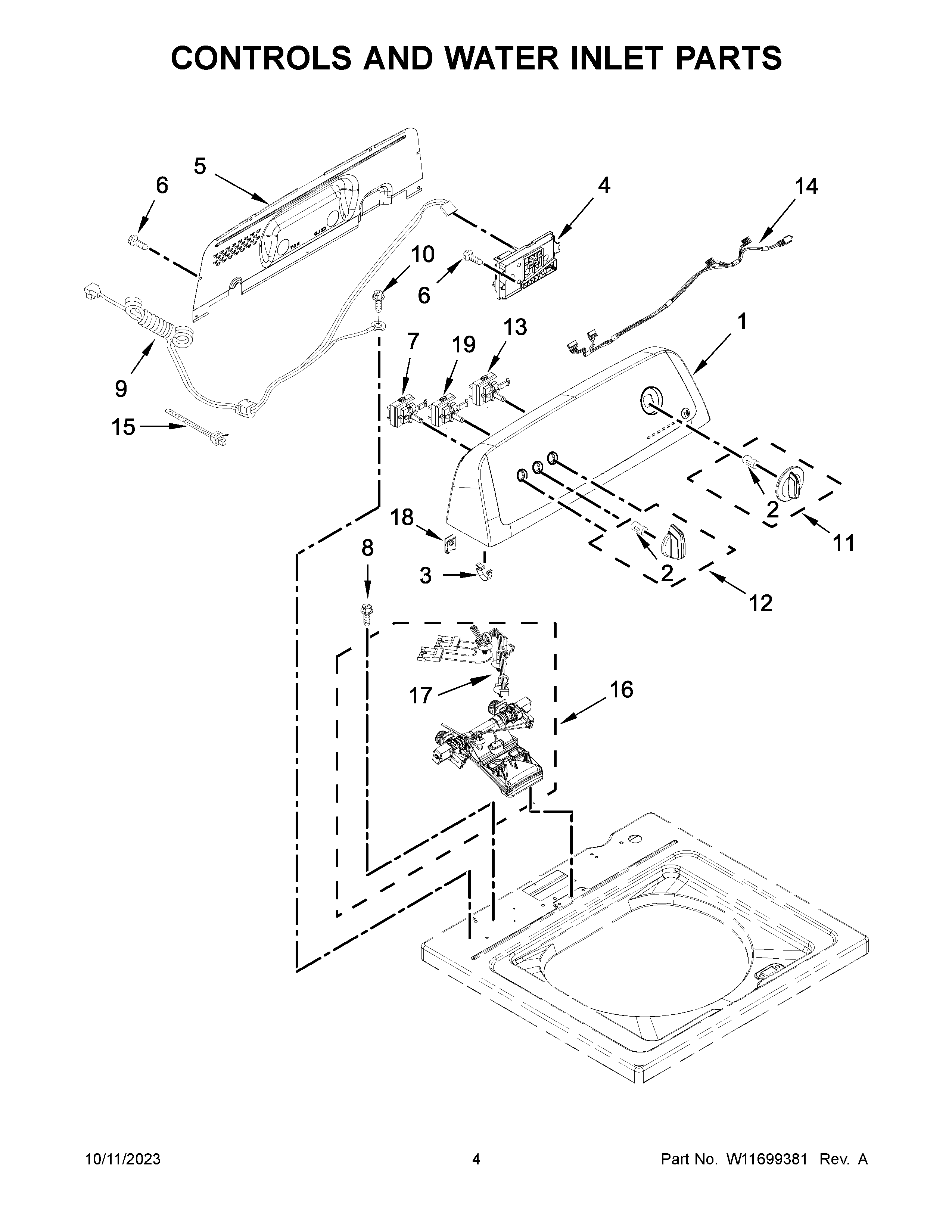

ATW4519PW0 03 – CONTROLS AND WATER INLET PARTS

ATW4519PW0 03 – CONTROLS AND WATER INLET PARTS

Written by

in

ATW4519PW0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2WP8536939 Whirlpool Spring Clip
3WP8312709 Whirlpool Endcap Clip
4W11607637-includeCORE Whirlpool W11607637 Refrigerator Electronic Control Board + Core
5W10409320 Whirlpool Rear Panel
6W11685943 Whirlpool Screw
7WPW10414398 Whirlpool Cycle Switch
8WPW10213953 Whirlpool Screw
9W10850133 Whirlpool Power Cord
10W10846509 Whirlpool Screw
11WPW10711289 Whirlpool Washer Control Knob Dryer
12WPW10453947 Whirlpool Knob
13W10859568 Whirlpool Cycle Switch
14W10694671 Whirlpool Wire Harness
15W10339680 Whirlpool Wire Tie
16W11641117 Whirlpool Valve
17W10701401 Whirlpool Wire Harness
18W11213336 Whirlpool Nut
19W11168256 Whirlpool Cycle Switch
