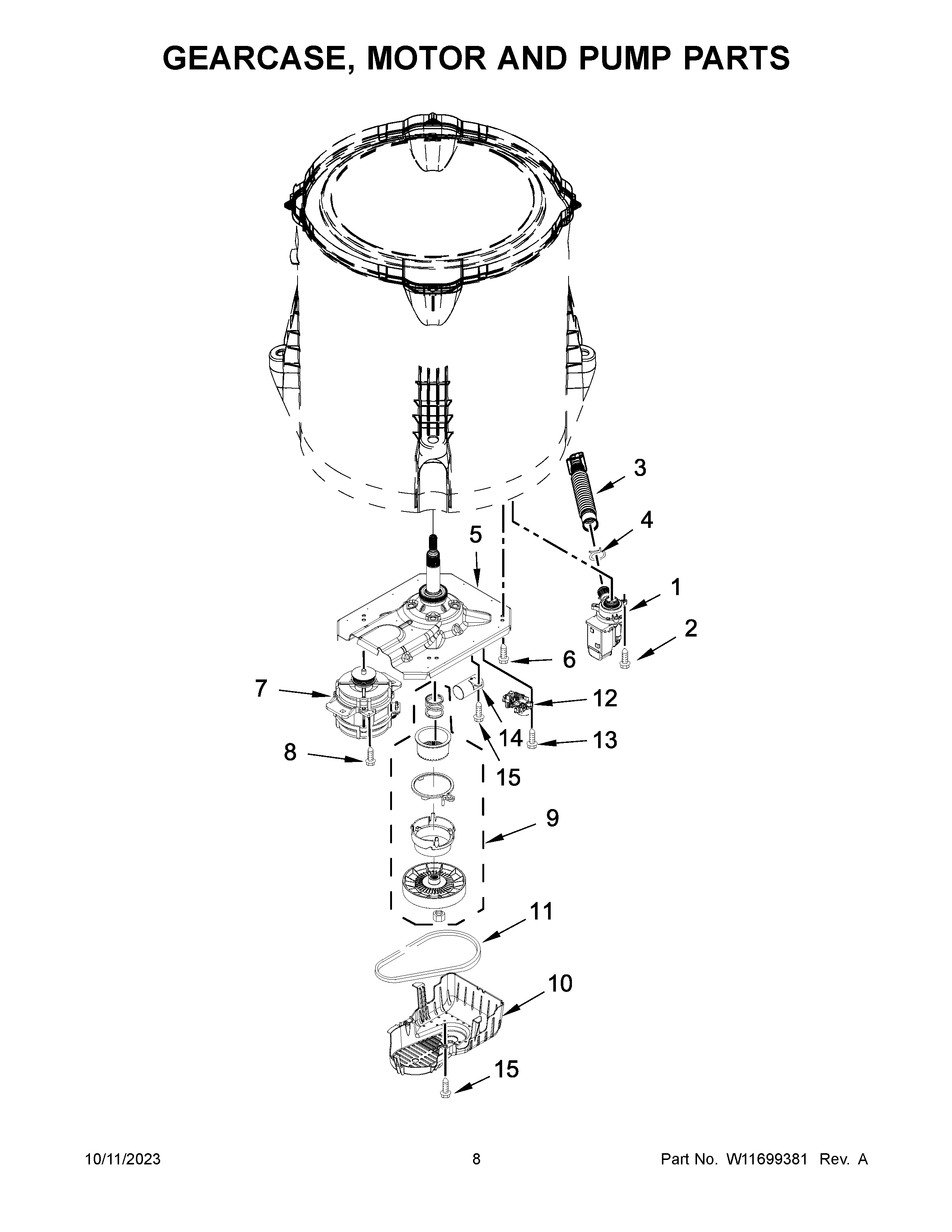

ATW4519PW0 05 – GEARCASE, MOTOR AND PUMP PARTS

ATW4519PW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

ATW4519PW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1PUMP-WATER
2WPW10004910 Whirlpool Screw
3W10899966 Whirlpool Hose Assembly
4WP285655 Whirlpool Hose Clamp
5GEARCASE (DW1)
6WPW10249633 Whirlpool Screw
7W11686050 Whirlpool Drive Motor
8W11685857 Whirlpool Screw Assembly
9W10721967 Whirlpool Washer Cam Kit
10W11409708 Whirlpool Shield Assembly
11W11239857 Whirlpool Washer Belt
12ACTUATOR
13W11596033 Whirlpool Microwave Screw
14CAPACITOR-SCREW
15W11573574 Whirlpool Screw
