ATW4675YQ0 01 – TOP AND CABINET PARTS – Aparts

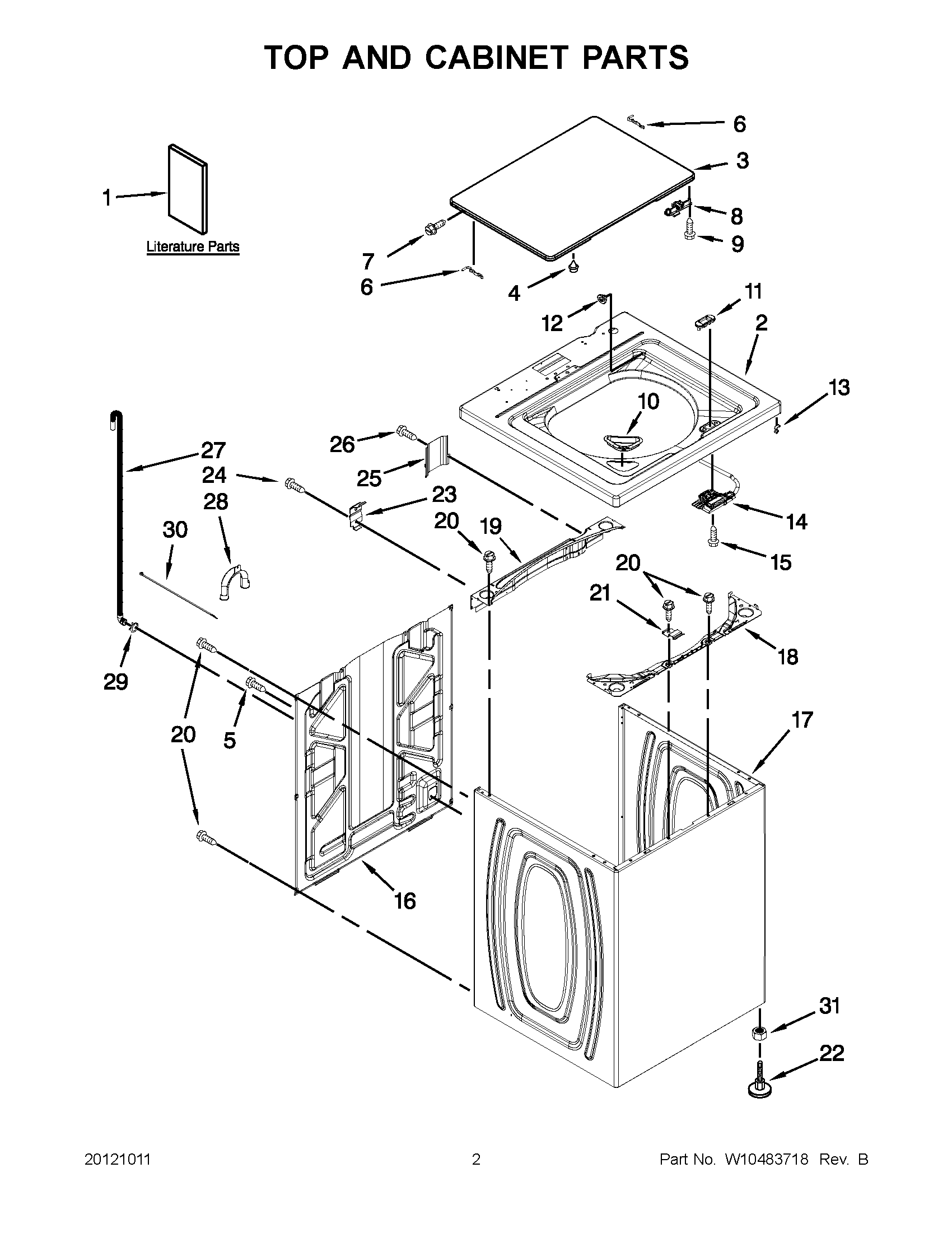

ATW4675YQ0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10062981
1	MAY W10280489
1	MAY W10420470
1	MAY W10240509
2	TOP (WHITE)
3	LID & BUMPER ASSEMBLY (WHITE)
4	MAY 9724509
5	SCREW
6	HINGE, LID
7	Screw And Washer
8	MAY W10240513
9	SCREW
10	MAY W10192089
11	MAY W10392041
12	Hinge, Bearing (2)
13	Clip, Wire (4)
14	MAY W10238287
15	Screw
16	PANEL, REAR
17	CABINET & FOOT ASSEMBLY (WHITE)
18	MAY W10215098
19	BRACE, CABINET TOP - REAR
20	MAY 1157158
21	MAY W10248088
22	MAY W10397767
23	MAY W10215102
24	SCREW
25	MAY W10215139
26	Screw, 10-32 x 5/8
27	HOSE, OUTER DRAIN ASSEMBLY
28	MAY W10280024
29	MAY 356138
30	TIE, CABLE
31	Nut, 3/8-16
