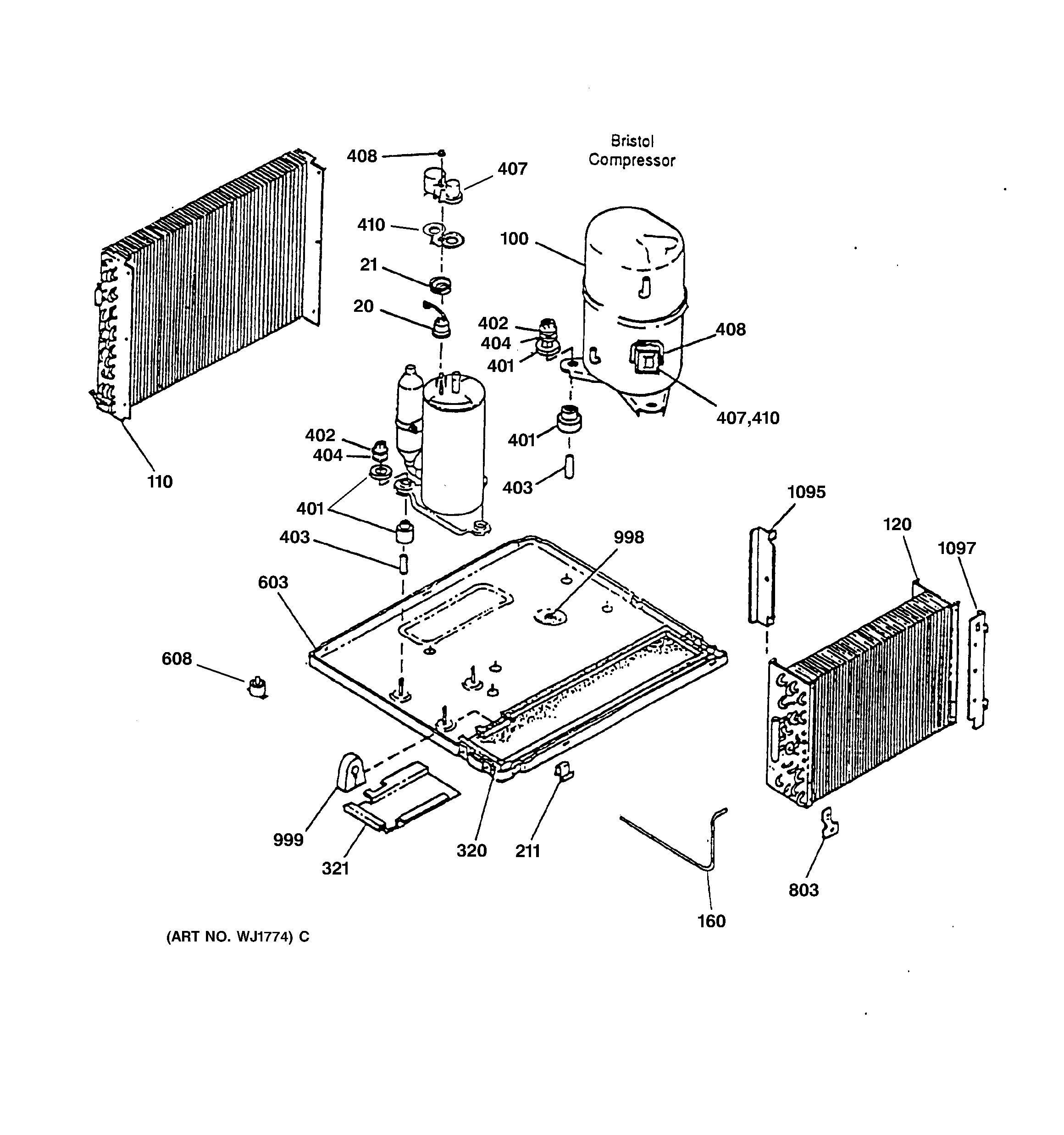

AVE15DAW1 REFRIGERANT ASSEMBLY – Aparts

AVE15DAW1 REFRIGERANT ASSEMBLY

Products

Position	Product
20	GEN WJ23X10019
21	SPRING, OVERLOAD
100	GEN WJ98X10033
110	COND ASM 3 ROW, 5/16
120	EVAP ASM 3 ROW, 5/16
211	GRILLE CLIP BTM
320	DRIP TRAY, STYROFOAM
321	SHIELD, DRIP TRAY
401	GROMME, COMPRESSOR BTM
401	GEN WJ01X10103
402	NUT, COMPRESSOR MTG
403	GEN WJ01X10086
404	GEN WJ01X10102
407	GEN WJ01X10104
408	GEN WJ01X10105
410	GEN WJ43X10014
603	GEN WJ89X10030
803	CLIP-EVAPORATOR
998	GEN WJ01X0889
999	SNUBBER, TUBE PROTECTOR
1095	GEN WJ76X10051
1097	GEN WJ01X0973
