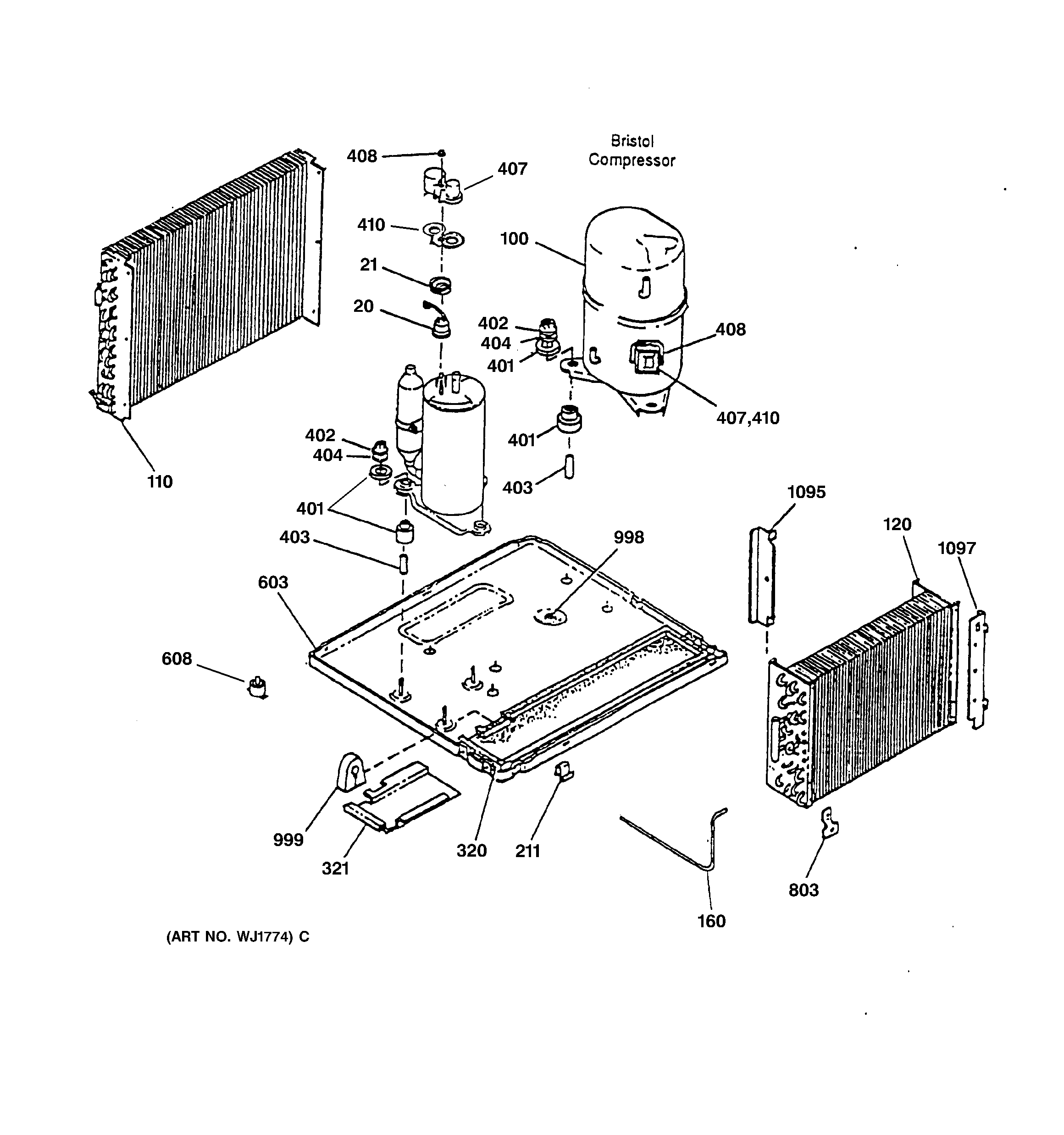

AVE18DAS1 REFRIGERANT ASSEMBLY

AVE18DAS1 REFRIGERANT ASSEMBLY

Written by

in

AVE18DAS1 REFRIGERANT ASSEMBLY

Products

PositionProduct
20OVERLOAD, COMPRESSOR
21SPRING, OVERLOAD
100GEN WJ98X10034
110COND ASM 3 ROW, 5/16
120EVAP ASM, 4 ROW 5/16
160CAPILLARY .042 CUT TO 15
211GRILLE CLIP BTM
320DRIP TRAY, STYROFOAM
321SHIELD, DRIP TRAY
401GEN WJ01X10103
401GROMME, COMPRESSOR BTM
402NUT, COMPRESSOR MTG
403GEN WJ01X10086
404GEN WJ01X10102
407GEN WJ79X10045
408GEN WJ01X10091
410GASKET,TERMINAL COVER
603GEN WJ89X10030
608GEN WJ58X10014
803CLIP-EVAPORATOR
998GEN WJ01X0889
999SNUBBER, TUBE PROTECTOR
1095GEN WJ76X10051
1097GEN WJ01X0973
