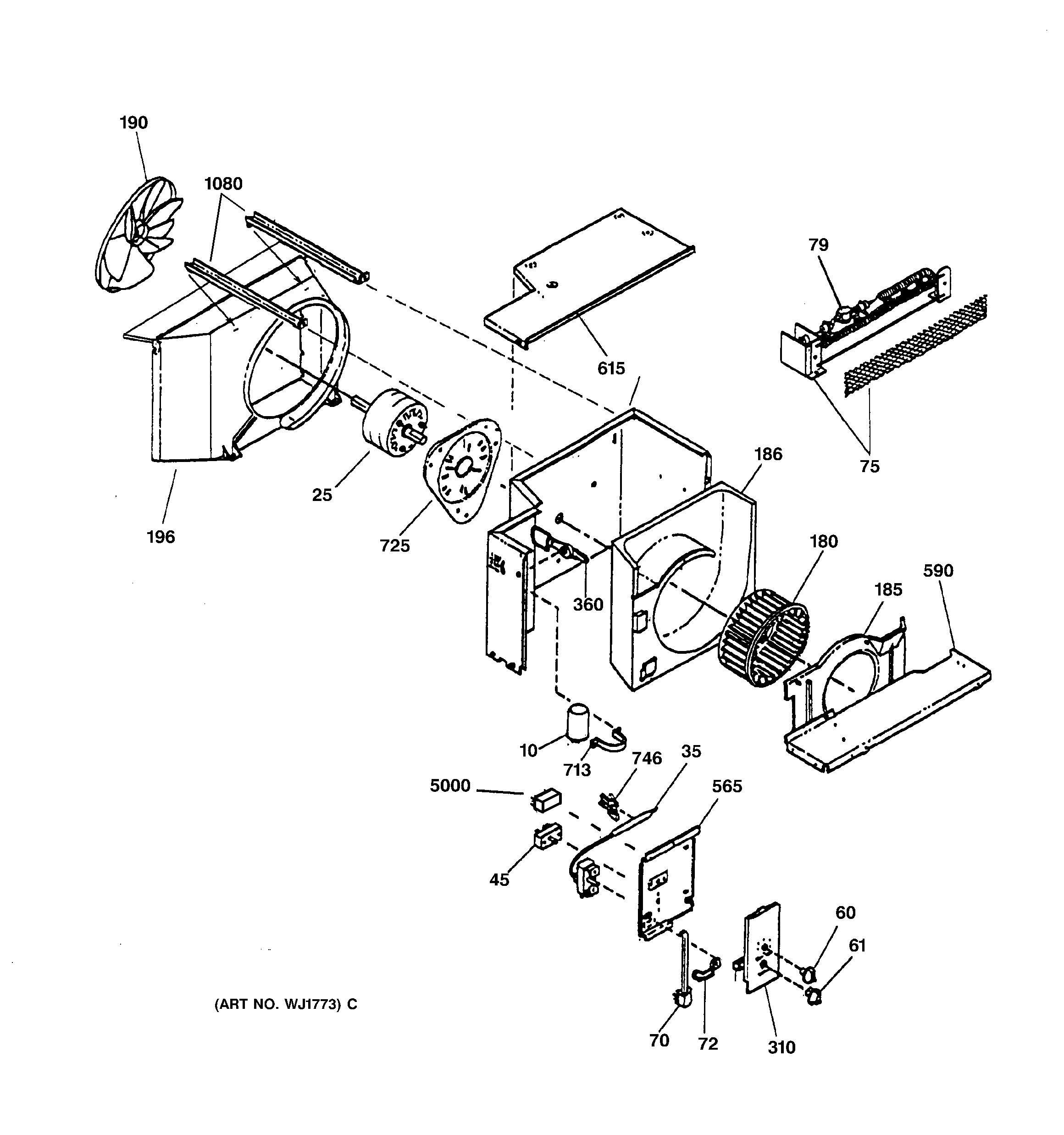

AVE18DAS2 CHASSIS ASSEMBLY

AVE18DAS2 CHASSIS ASSEMBLY

Written by

in

AVE18DAS2 CHASSIS ASSEMBLY

Products

Position	Product
10	CAPACITOR, 35/6-370V
25	GEN WJ94X10084
35	GEN WJ28X10012
45	GEN WJ26X10014
60	KNOB ASM, THERMOSTAT
61	KNOB ASM, MASTER CONTROL
70	POWER CORD,16/3 15A-250V
72	GEN WJ02X0592
75	GEN WJ70X10017
79	GEN WJ23X10027
180	GEN WJ74X10009
185	GEN WJ79X10043
185	BARRIER
186	GEN WJ76X0350
190	GEN WJ73X10038
196	SHROUD CONDENSER
310	GEN WJ07X10041
360	GEN WJ14X10018
565	GEN WJ79X10041
590	COVER-EVAP,HEAT/COOL
615	GEN WJ79X10042
713	GEN WJ03X10021
725	GEN WJ66X10027
746	CLIP-BULB, FILTER HNG
1080	GEN WJ01X10101
5000	START ASSIST KIT 115/230
