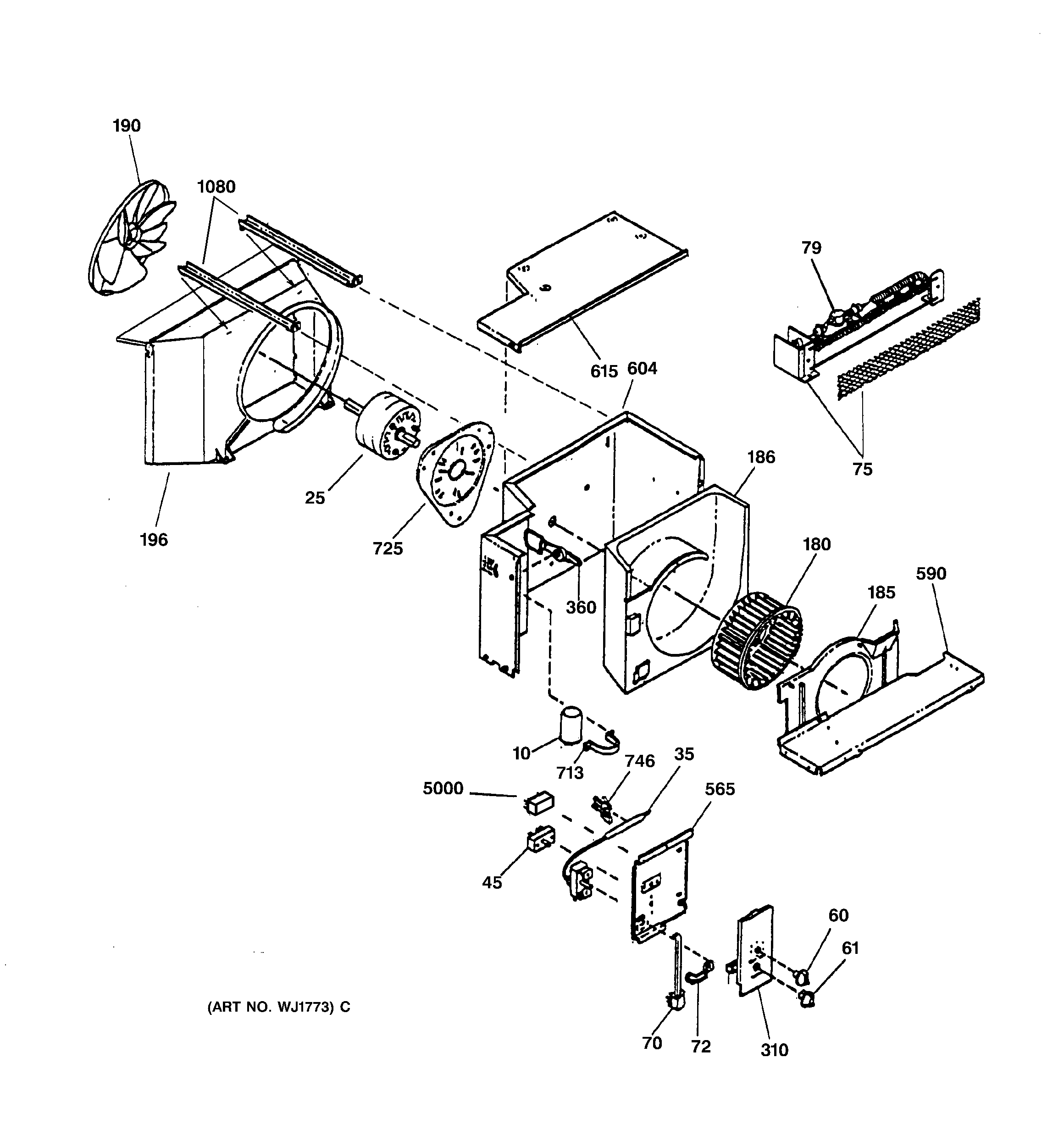

AVE22DAR1 CHASSIS ASSEMBLY

AVE22DAR1 CHASSIS ASSEMBLY

Written by

in

AVE22DAR1 CHASSIS ASSEMBLY

Products

Position	Product
10	CAPACITOR 35/7.5-370V
25	GEN WJ94X10057
35	GEN WJ28X10012
45	GEN WJ26X10014
60	KNOB ASM, THERMOSTAT
61	KNOB ASM, MASTER CONTROL
70	GEN WJ35X10027
72	GEN WJ02X0592
75	GEN WJ70X10019
79	GEN WJ23X10027
180	BLOWER WHEEL, INDOOR
185	GEN WJ79X10043
185	BARRIER
186	GEN WJ76X0350
190	FAN, OUTDOOR (CONDENSER)
196	SHROUD CONDENSER
310	GEN WJ07X10041
360	GEN WJ14X10018
565	GEN WJ79X10041
590	COVER-EVAP,HEAT/COOL
615	GEN WJ79X10042
713	GEN WJ03X10021
725	GEN WJ66X10031
746	GEN WJ01X10108
1080	TIE BRACKET,CENTER
5000	START ASSIST KIT 115/230
