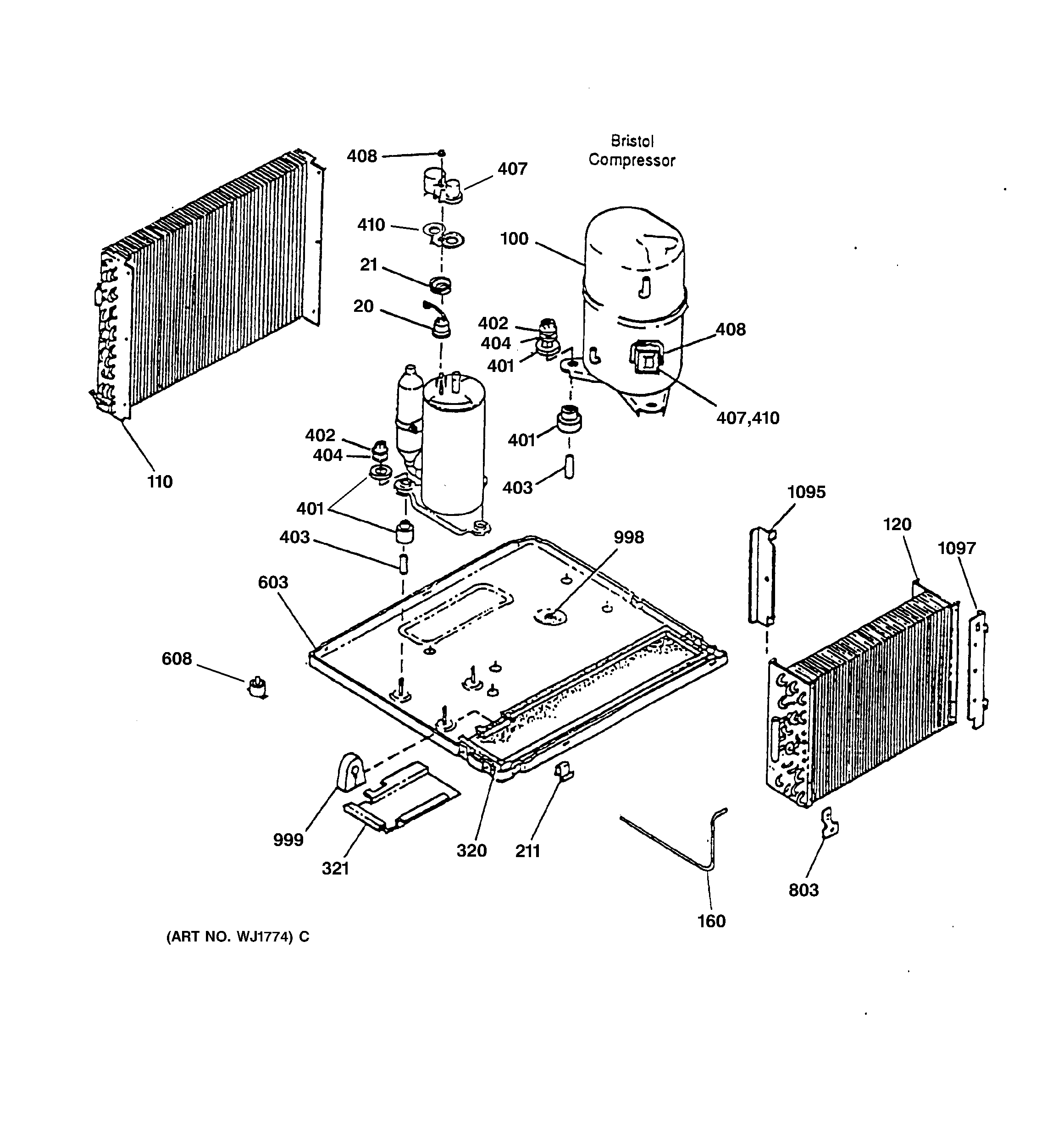

AVE22DAR1 REFRIGERANT ASSEMBLY

AVE22DAR1 REFRIGERANT ASSEMBLY

Written by

in

AVE22DAR1 REFRIGERANT ASSEMBLY

Products

PositionProduct
100GEN WJ98X10035
110COND ASM 3 ROW, 5/16
120EVAP ASM, 4 ROW 5/16
160CAPILLARY .042 CUT TO 15
211GRILLE CLIP BTM
320DRIP TRAY, STYROFOAM
321SHIELD, DRIP TRAY
401GROMMET, COMPRESSOR BTM
401GROMMET, COMPRESSOR TOP
402NUT, COMPRESSOR MTG
403SLEEVE,COMP(.345IDX1.14)
404GEN WJ01X10102
407TERMINAL COVER
408CLIP RETAINER
410GEN WJ43X10016
603GEN WJ89X10031
608GEN WJ58X10014
803CLIP-EVAPORATOR
998GEN WJ01X0889
999SNUBBER, TUBE PROTECTOR
1095GEN WJ76X10051
1097GEN WJ01X0973
