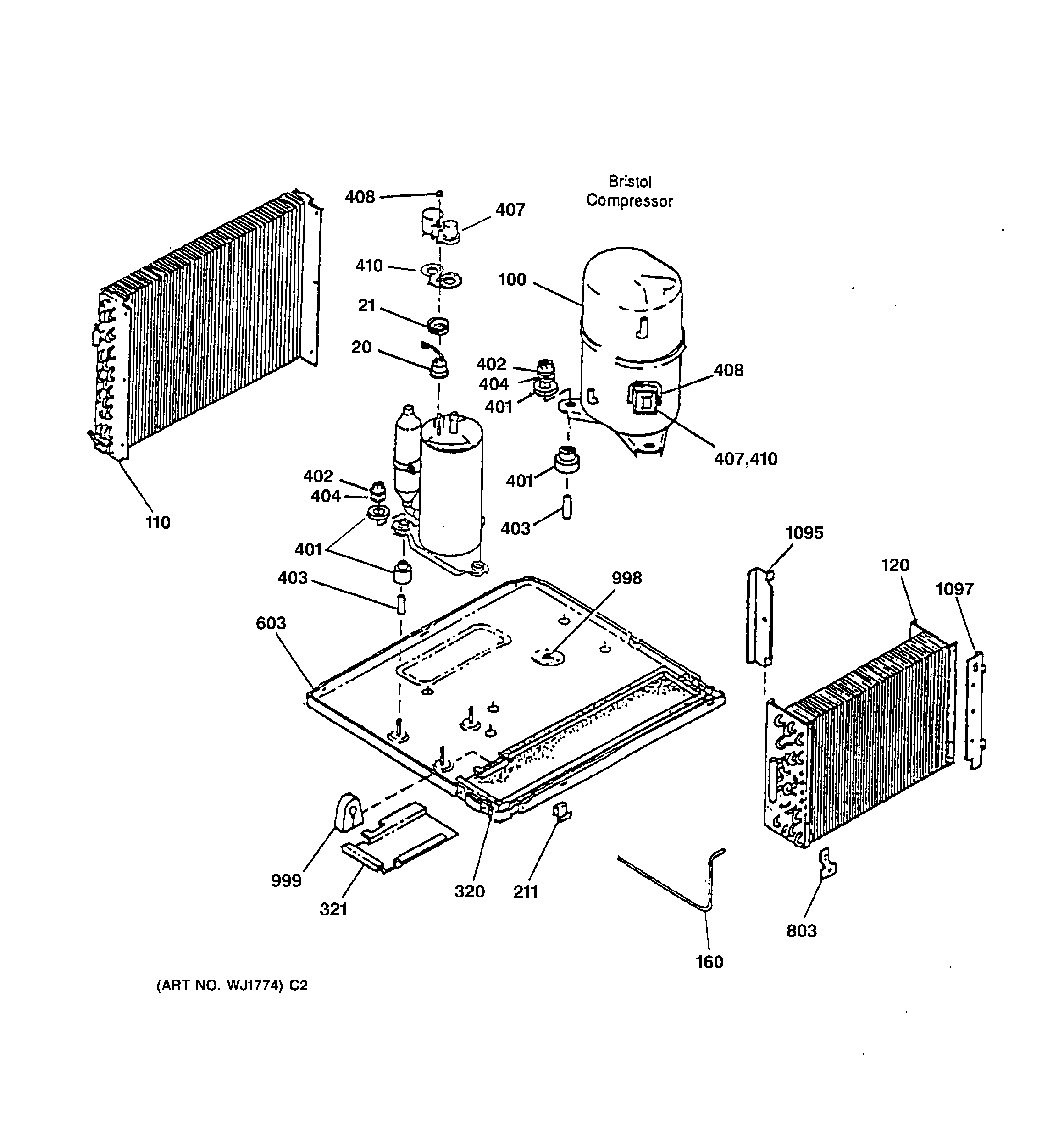

AVM14ABV1 REFRIGERANT ASSEMBLY

AVM14ABV1 REFRIGERANT ASSEMBLY

Written by

in

AVM14ABV1 REFRIGERANT ASSEMBLY

Products

PositionProduct
20GEN WJ23X0362
100GEN WJ98X10032
110COND ASM 3 ROW, 5/16
120EVAP ASM 3 ROW, 5/16
160CAPILLARY .049 CUT-25"
211GRILLE CLIP BTM
320DRIP TRAY, STYROFOAM
321SHIELD, DRIP TRAY
401GEN WJ01X10103
401GROMME, COMPRESSOR BTM
402NUT, COMPRESSOR MTG
403GEN WJ01X10086
404GEN WJ01X10102
407GEN WJ79X0587
408GEN WJ01X0933
410GEN WJ43X0468
603GEN WJ89X10029
803CLIP-EVAPORATOR
998GEN WJ01X0889
999SNUBBER, TUBE PROTECTOR
1095GEN WJ76X10051
1097GEN WJ01X0973
