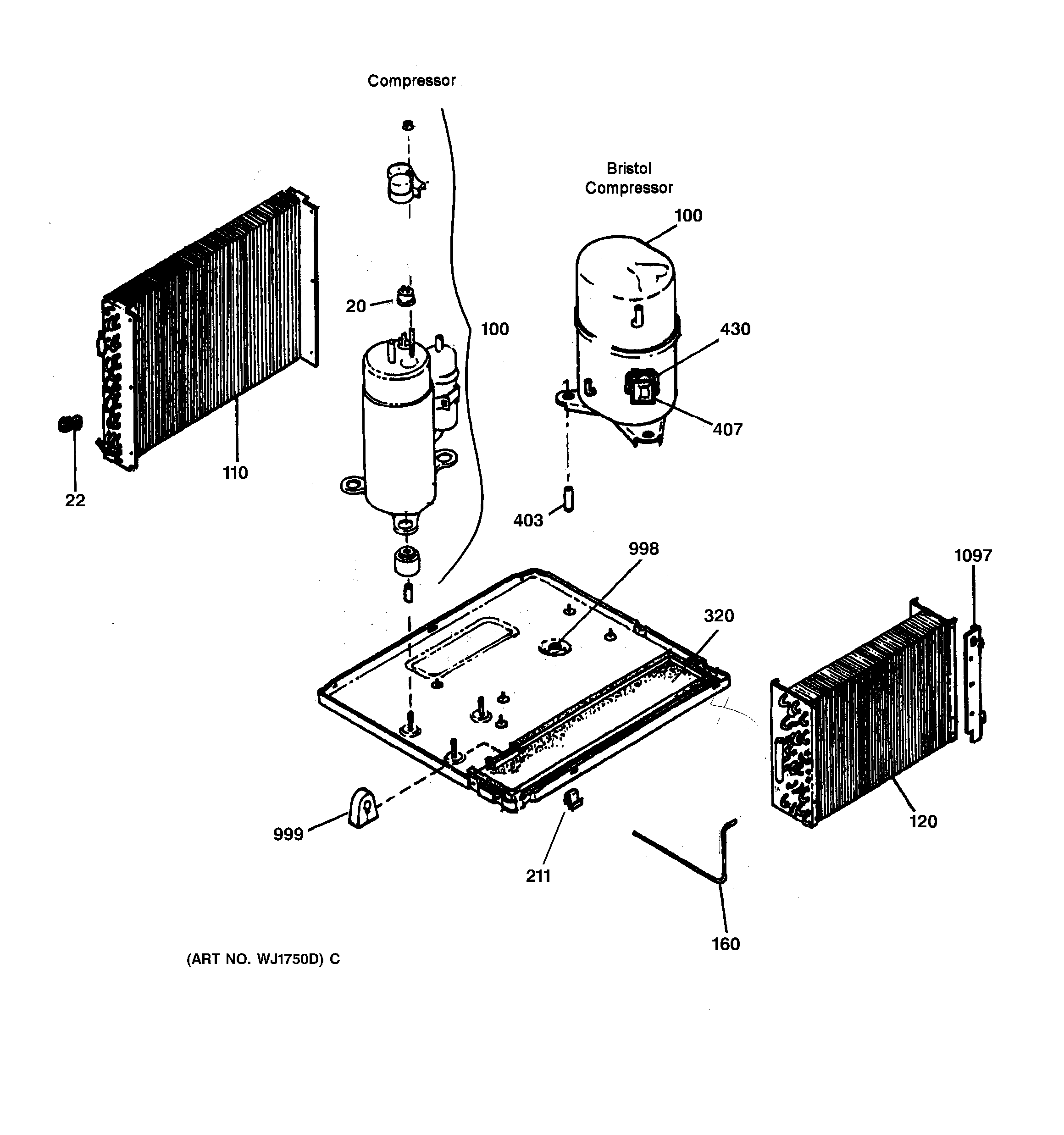

AVM15DBR1 REFRIGERANT ASSEMBLY
Products
| Position | Product |
|---|---|
| 22 | GEN WJ05X0072 |
| 100 | GEN WJ98X1102 |
| 110 | GEN WJ88X0340 |
| 120 | GEN WJ87X0365 |
| 160 | CAPILLARY .049 CUT-25" |
| 211 | GRILLE CLIP BTM |
| 320 | DRIP TRAY, STYROFOAM |
| 403 | SLEEVE,COMP(.345IDX1.14) |
| 407 | TERMINAL COVER |
| 430 | CLIP RETAINER |
| 998 | GEN WJ01X0889 |
| 999 | SNUBBER, TUBE PROTECTOR |
| 1097 | GEN WJ01X0973 |
