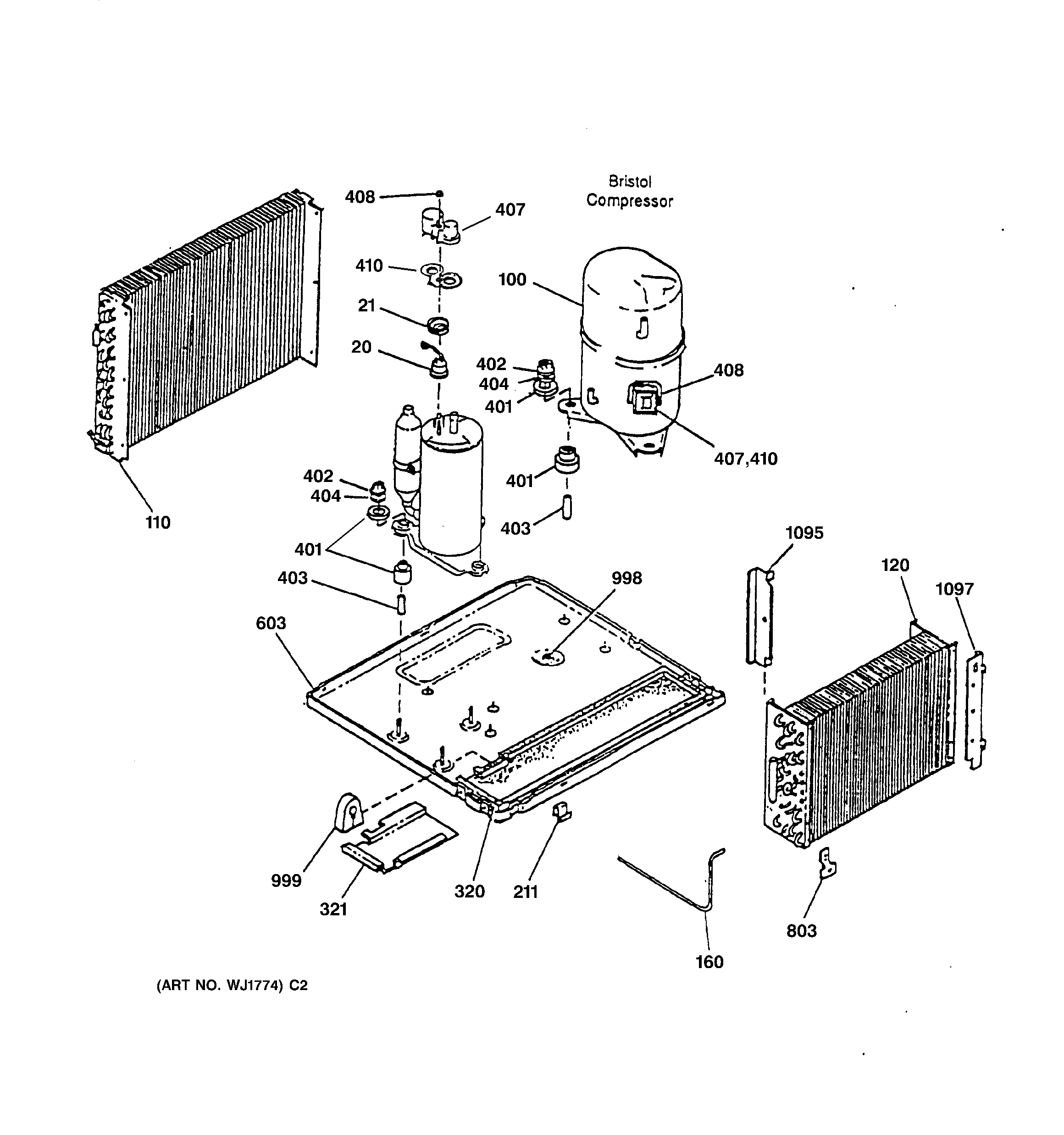

AVM15DCW1 REFRIGERANT ASSEMBLY – Aparts

AVM15DCW1 REFRIGERANT ASSEMBLY

Products

Position	Product
20	GEN WJ23X10019
21	SPRING, OVERLOAD
100	GEN WJ98X10033
110	COND ASM 3 ROW, 5/16
120	EVAP ASM 3 ROW, 5/16
160	CAPILLARY .049 CUT-25"
211	GRILLE CLIP BTM
320	DRIP TRAY, STYROFOAM
321	SHIELD, DRIP TRAY
401	GEN WJ01X10103
401	GROMME, COMPRESSOR BTM
402	NUT, COMPRESSOR MTG
403	GEN WJ01X10086
404	GEN WJ01X10102
407	GEN WJ79X10044
408	GEN WJ01X10105
410	GASKET,TERMINAL COVER
603	GEN WJ89X10029
803	CLIP-EVAPORATOR
998	GEN WJ01X0889
999	SNUBBER, TUBE PROTECTOR
1095	GEN WJ76X10051
1097	GEN WJ01X0973
