AVM18DBR1 CHASSIS ASSEMBLY – Aparts

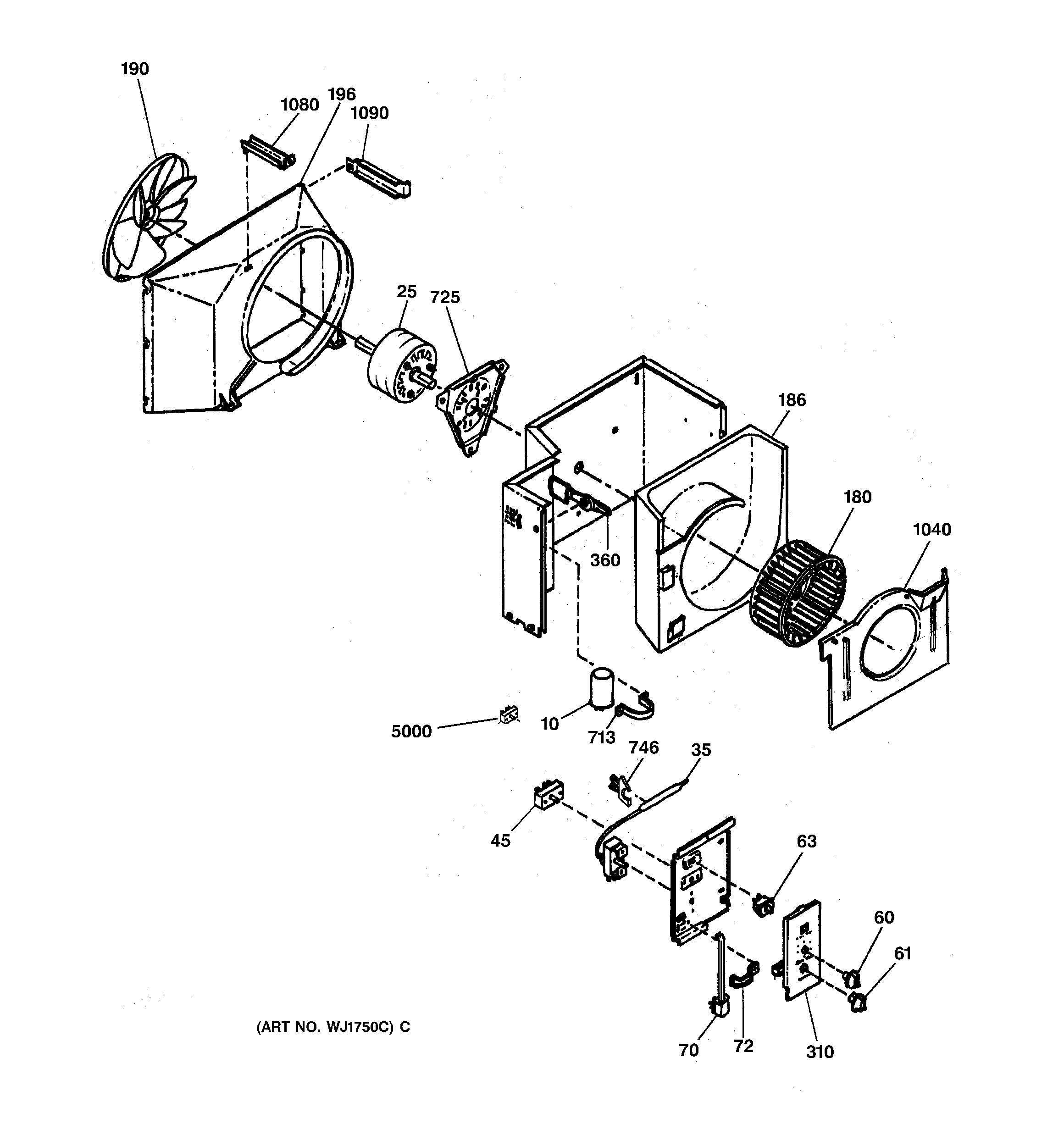

AVM18DBR1 CHASSIS ASSEMBLY

Products

Position	Product
10	GEN WJ20X0742
25	GEN WJ94X0644
35	GEN WJ28X0293
45	GEN WJ26X0307
60	KNOB ASM, MASTER CONTROL
61	KNOB ASM, THERMOSTAT
63	GEN WJ26X0308
70	GEN WJ35X0219
72	GEN WJ02X0563
180	BLOWER WHEEL, INDOOR
186	GEN WJ76X0350
190	FAN, OUTDOOR (CONDENSER)
196	GEN WJ76X0349
310	GEN WJ07X0987
360	GEN WJ14X0180
713	GEN WJ03X0363
725	GEN WJ65X0420
1040	GEN WJ79X0612
1080	TIE BRACKET,CENTER
1090	GEN WJ01X0970
5000	GEN WJ41X0188
