AVM18DCS1 CHASSIS ASSEMBLY – Aparts

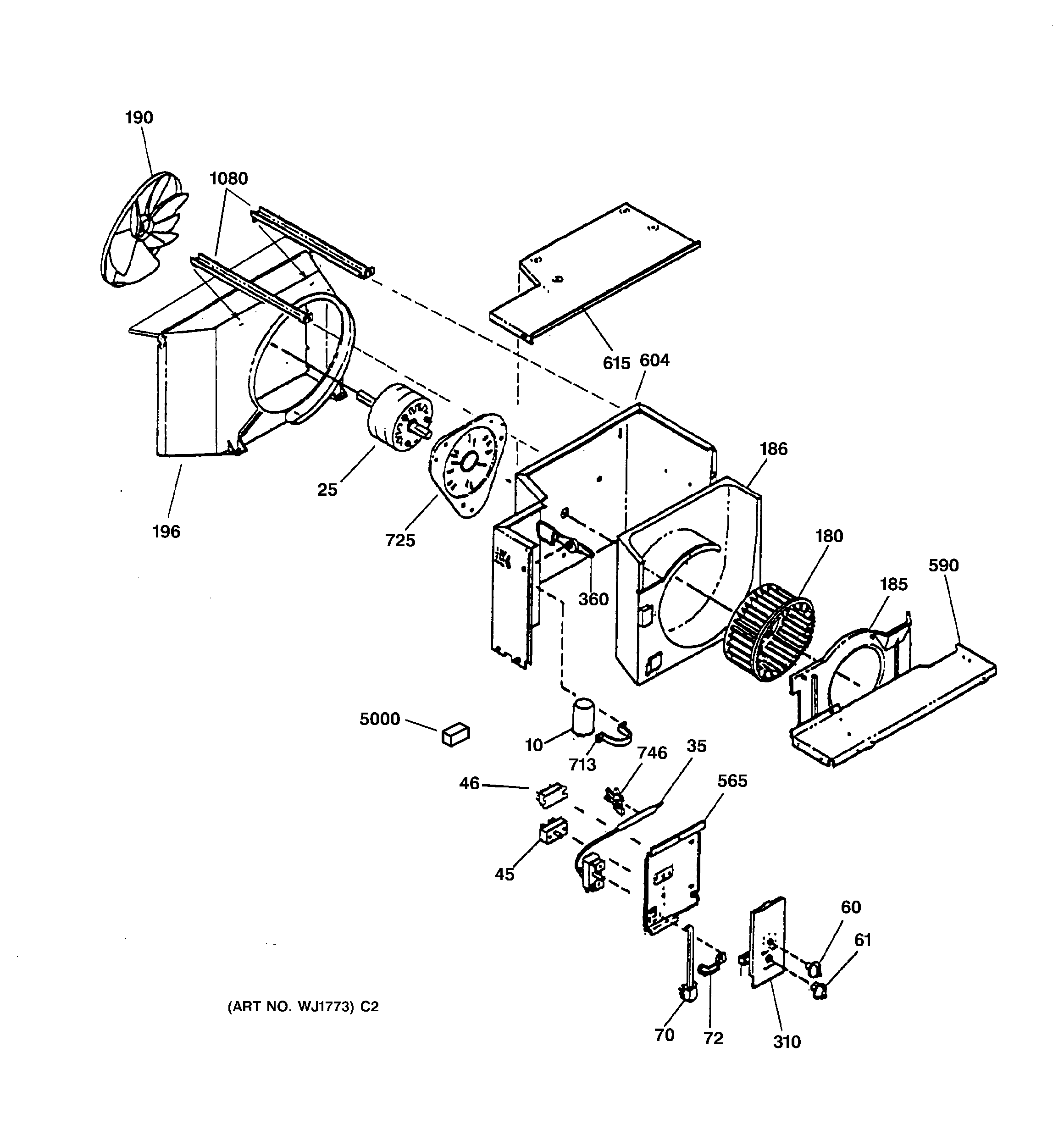

AVM18DCS1 CHASSIS ASSEMBLY

Products

Position	Product
10	CAPACITOR, 35/6-370V
25	GEN WJ94X10055
35	GEN WJ28X10011
45	GEN WJ26X10013
46	GEN WJ24X10002
60	KNOB ASM, THERMOSTAT
61	KNOB ASM, MASTER CONTROL
70	GEN WJ35X10026
72	GEN WJ02X0563
180	BLOWER WHEEL, INDOOR
185	GEN WJ79X10039
186	GEN WJ76X0350
190	FAN, OUTDOOR (CONDENSER)
196	SHROUD CONDENSER
310	GEN WJ07X10040
360	GEN WJ14X10018
565	GEN WJ79X10036
590	COVER-EVAP,HEAT/COOL
604	BARRIER
615	GEN WJ79X10037
713	GEN WJ03X10021
725	GEN WJ66X10027
746	CLIP-BULB, FILTER HNG
1080	GEN WJ01X10101
5000	START ASSIST KIT 115/230
