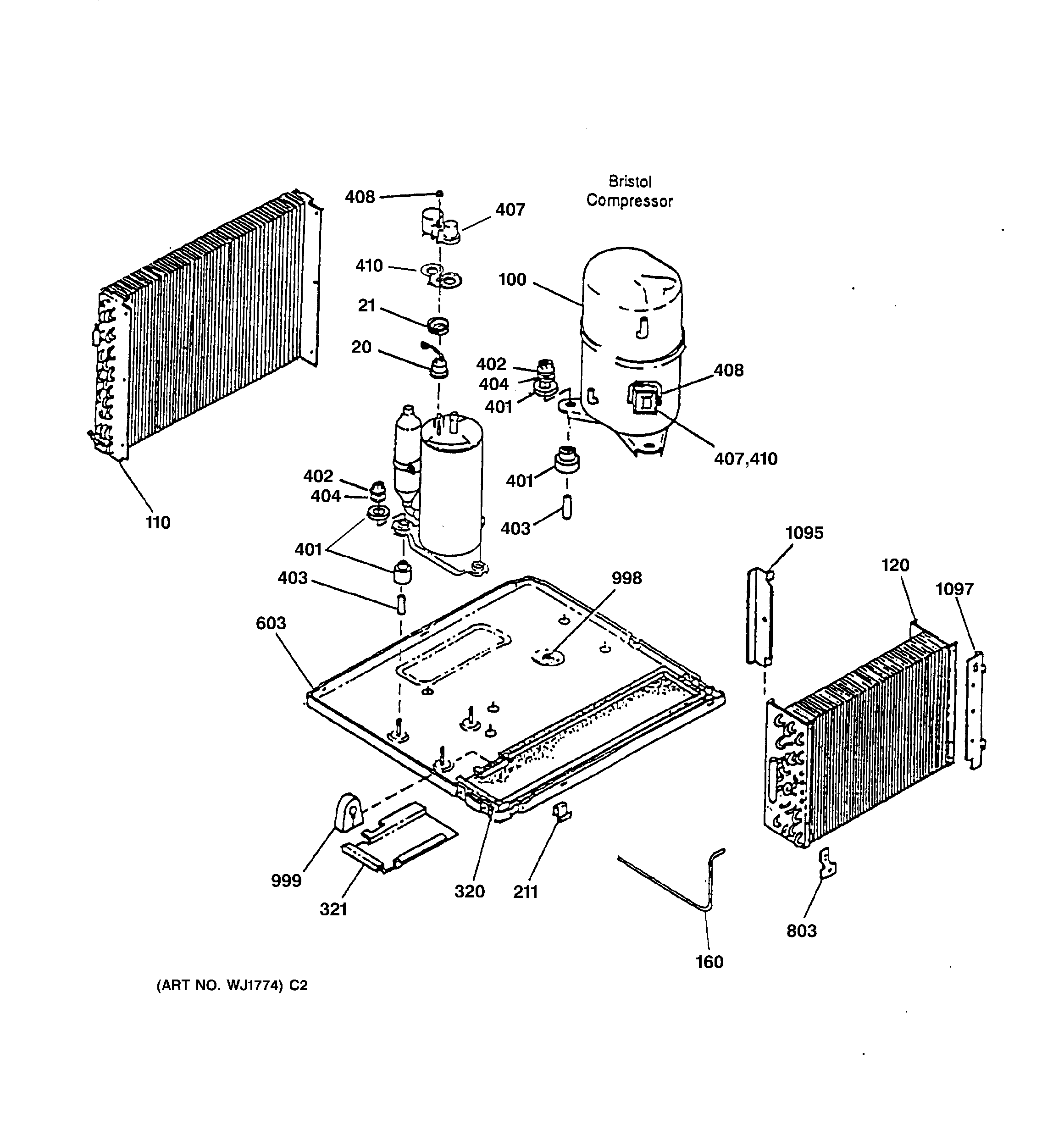

AVM22DBR1 REFRIGERANT ASSEMBLY

Products

Position	Product
100	GEN WJ98X10035
110	COND ASM 3 ROW, 5/16
120	EVAP ASM, 4 ROW 5/16
160	CAPILLARY .042 CUT TO 15
211	GRILLE CLIP BTM
320	DRIP TRAY, STYROFOAM
321	SHIELD, DRIP TRAY
401	GROMME, COMPRESSOR BTM
401	GEN WJ01X10103
402	NUT, COMPRESSOR MTG
403	GEN WJ01X10086
404	GEN WJ01X10102
407	GEN WJ79X10046
408	CLIP RETAINER
410	GEN WJ43X10016
603	GEN WJ89X10029
803	CLIP-EVAPORATOR
998	GEN WJ01X0889
999	SNUBBER, TUBE PROTECTOR
1095	GEN WJ76X10051
1097	GEN WJ01X0973
