AVN24DAR1 REFRIGERANT ASSEMBLY – Aparts

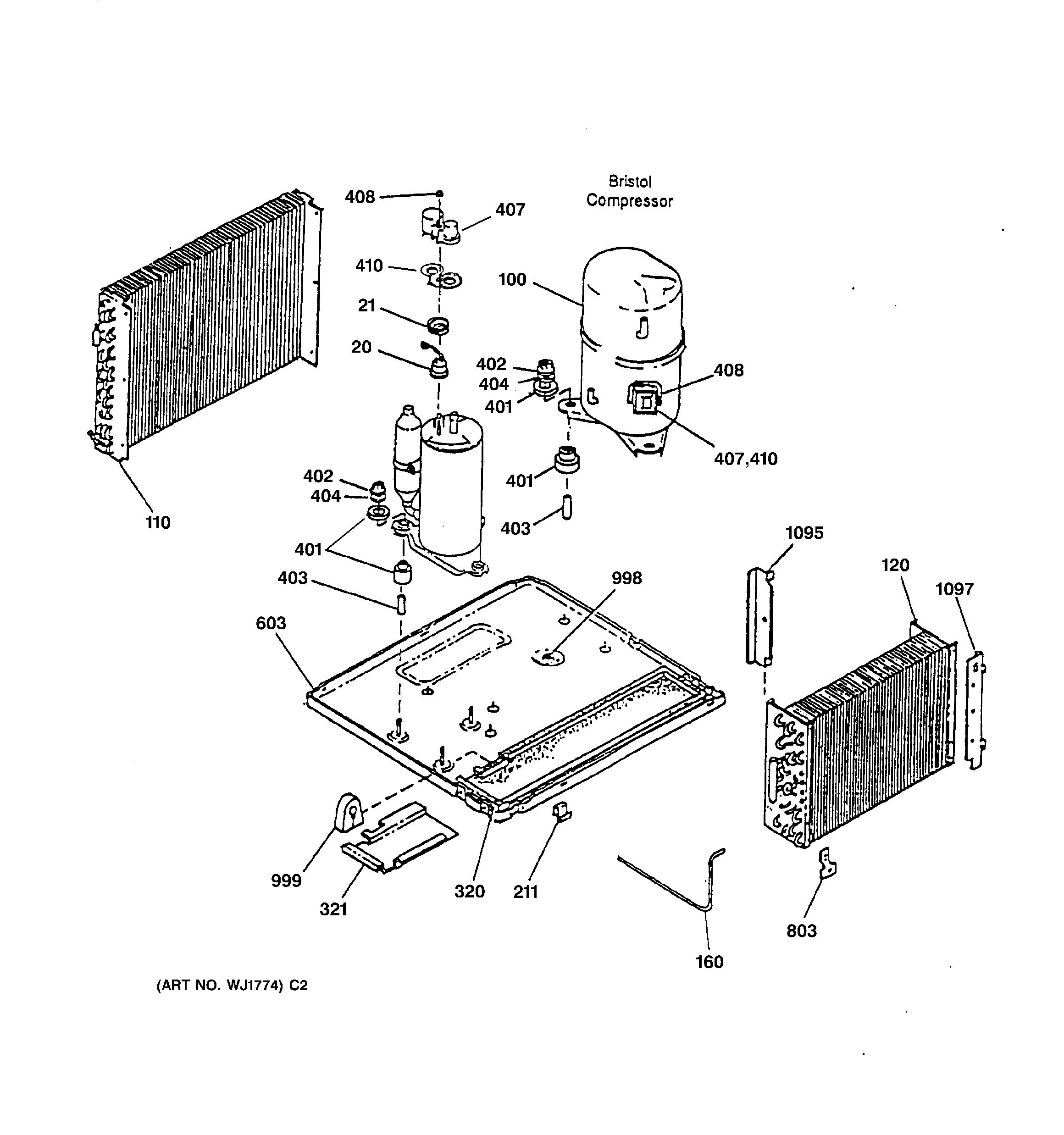

AVN24DAR1 REFRIGERANT ASSEMBLY

Products

Position	Product
100	GEN WJ98X10035
110	GEN WJ88X10042
120	GEN WJ87X10033
160	CAPILLARY .042 CUT TO 15
211	GRILLE CLIP BTM
320	DRIP TRAY, STYROFOAM
321	SHIELD, DRIP TRAY
401	GROMMET, COMPRESSOR BTM
401	GROMMET, COMPRESSOR TOP
402	NUT, COMPRESSOR MTG
403	SLEEVE,COMP(.345IDX1.14)
404	GEN WJ01X10102
407	GEN WJ79X10046
408	CLIP RETAINER
410	GEN WJ43X10016
603	GEN WJ89X10032
803	CLIP-EVAPORATOR
998	GEN WJ01X0889
999	SNUBBER, TUBE PROTECTOR
1095	GEN WJ76X10051
1097	GEN WJ01X0973
