AVP24DCR1 REFRIGERANT ASSEMBLY

AVP24DCR1 REFRIGERANT ASSEMBLY

Written by

in

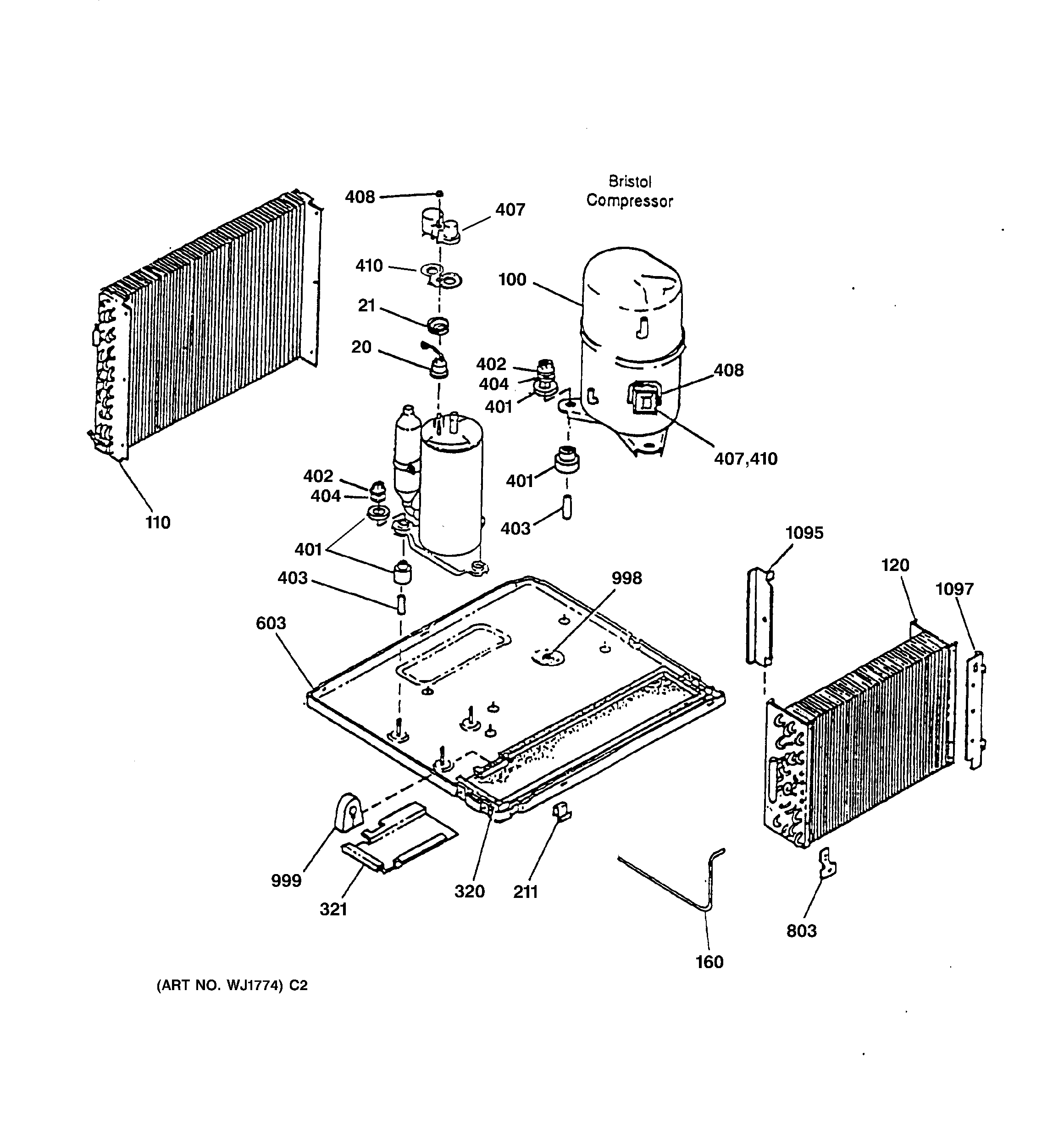

AVP24DCR1 REFRIGERANT ASSEMBLY

Products

PositionProduct
100GEN WJ98X10035
110GEN WJ88X10042
120GEN WJ87X10033
160CAPILLARY .042 CUT TO 15
211GRILLE CLIP BTM
320DRIP TRAY, STYROFOAM
321SHIELD, DRIP TRAY
401GROMMET, COMPRESSOR BTM
401GROMMET, COMPRESSOR TOP
402NUT, COMPRESSOR MTG
403SLEEVE,COMP(.345IDX1.14)
404GEN WJ01X10102
407GEN WJ79X10046
408CLIP RETAINER
410GEN WJ43X10016
603GEN WJ89X10032
803CLIP-EVAPORATOR
998GEN WJ01X0889
999SNUBBER, TUBE PROTECTOR
1095GEN WJ76X10051
1097GEN WJ01X0973
