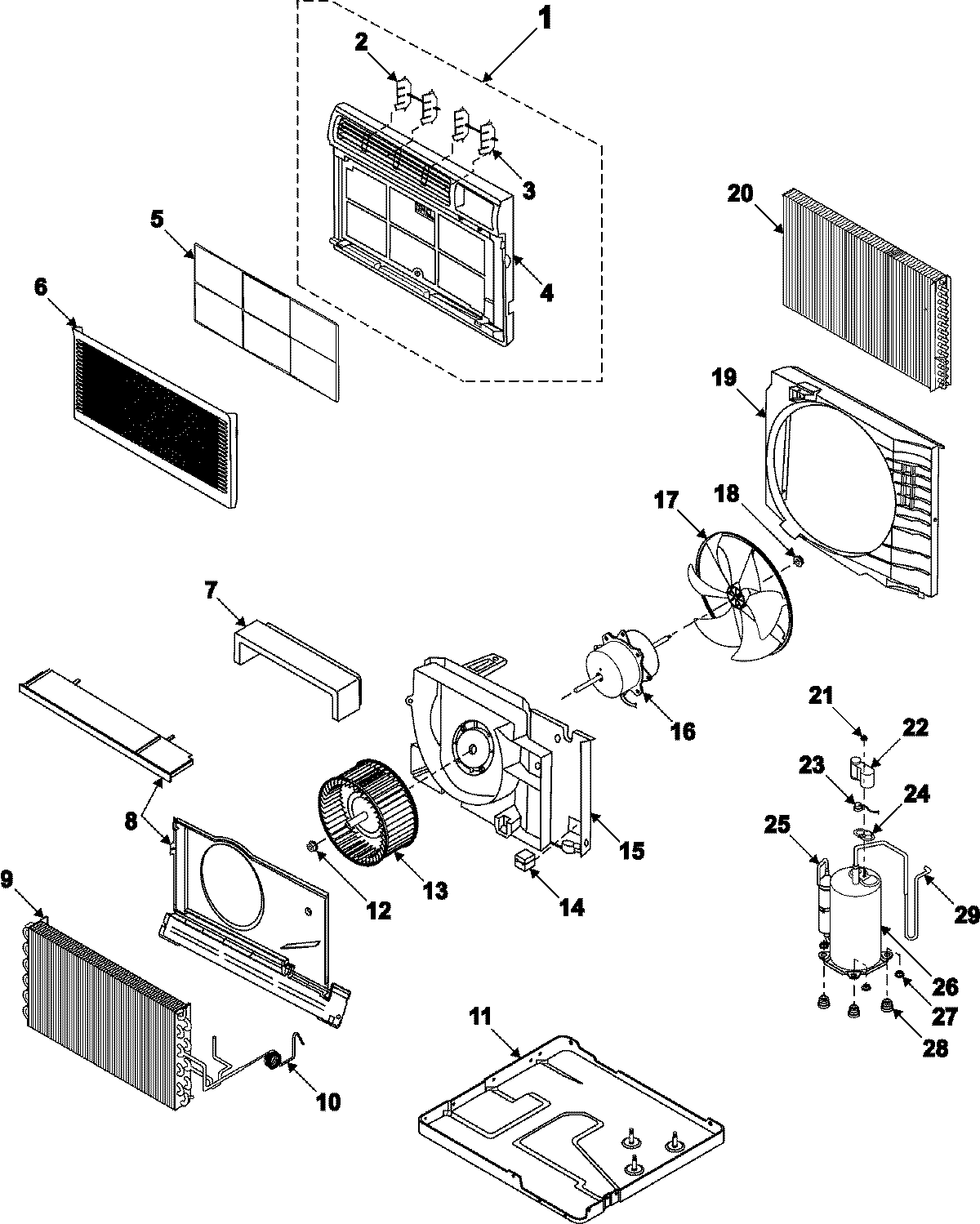

AW0501M 01 – CHASSIS ASSEMBLY

Products

Position	Product
1	MAY DB92-00394A
2	MAY DB66-00367A
3	MAY DB66-00368A
4	SEE NOTE GROUND WIRE, GREEN
5	MAY DB63-00600A
6	MAY DB64-00681A
7	MAY DB90-00944A
8	MAY DB90-00898A
9	MAY DB96-01972A
10	MAY DB62-01315A
11	MAY DB90-00897A
12	MAY DB60-30004A
13	MAY DB67-00099A
14	MAY DB72-50178A
15	MAY DB70-00219A
16	MAY DB31-00035J
17	MAY DB67-00014A
18	MAY DB60-30020A
19	MAY DB61-00932A
20	MAY DB96-02131A
21	MAY DB60-30001A
22	MAY DB63-10026A
23	MAY DB35-00006F
24	MAY DB63-20003A
25	MAY DB62-01314A
26	MAY 39A050HS1KA
27	MAY DB60-30028A
28	MAY DB73-00016A
29	MAY DB62-01426A
