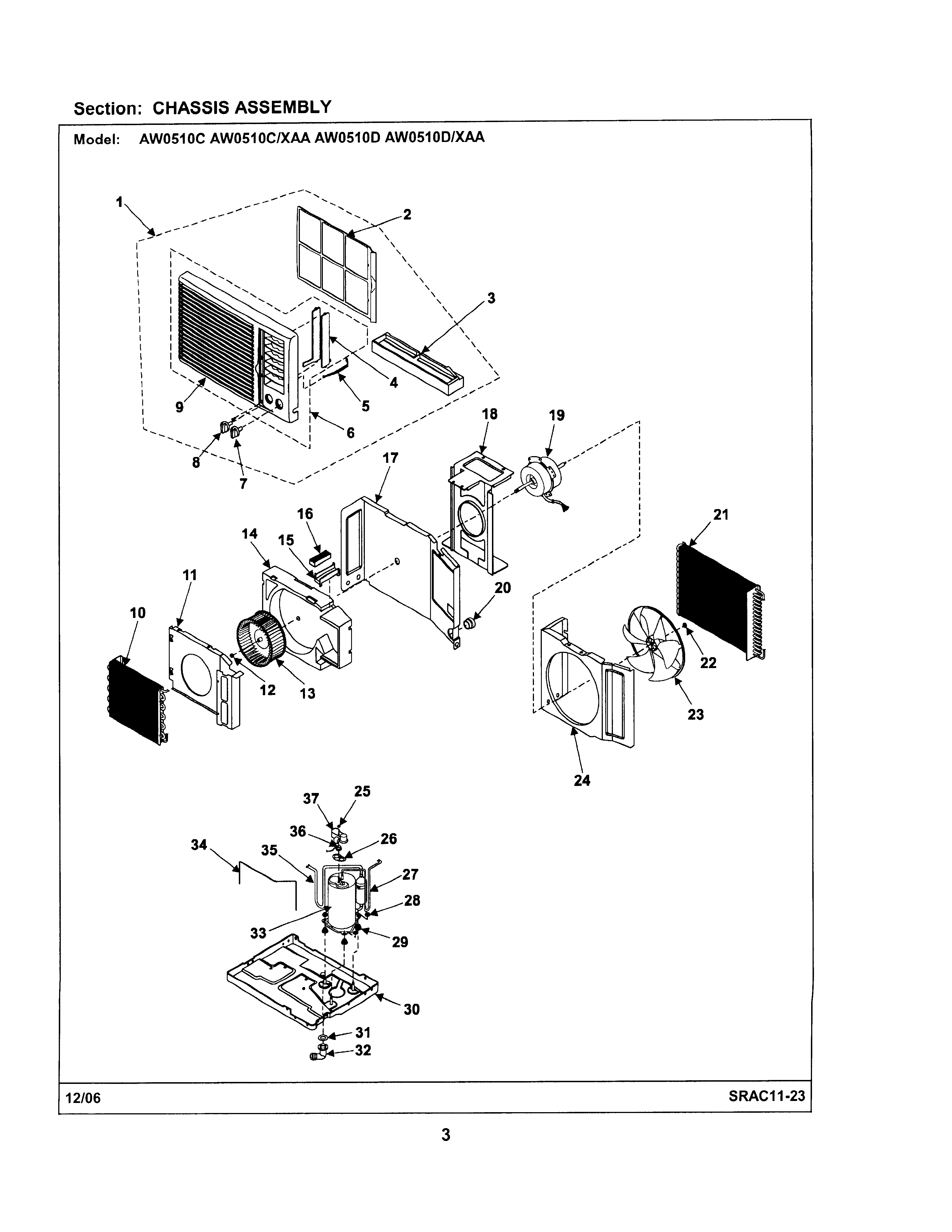

AW0510C 01 – CHASSIS ASSEMBLY
Written by
in
AW0510C 01 – CHASSIS ASSEMBLY
Products
Position
Product
1
MAY DB92-00032A
2
MAY DB63-00026A
2
MAY DB61-00191A
3
MAY DB63-00027A
4
MAY DB66-00023A
7
MAY DB64-00124B
8
MAY DB64-00124A
9
MAY DB64-00043A
10
MAY DB96-00548A
11
MAY DB70-00020A
12
MAY DB60-30004A
13
MAY DB67-00013A
14
MAY DB61-00083A
15
MAY DB63-00031A
16
MAY DB73-00031A
17
MAY DB67-00012A
17
MAY DB94-00201A
18
MAY DB61-00084A
19
MAY DB31-00035A
20
MAY DB63-00089A
21
MAY DB62-00205A
22
MAY DB60-30020A
23
MAY DB67-00014A
24
MAY DB61-00085A
25
MAY DB60-30001A
26
MAY DB63-20003A
27
MAY DB62-00445C
28
MAY DB60-30028A
29
MAY DB73-00016A
30
MAY DB90-00430A
30
MAY DB90-00123G
33
MAY 44A052HS1KA
34
SEE NOTE GROUND WIRE, GREEN
34
MAY DB96-00198B
35
MAY DB62-00296A
36
MAY DB47-20002Q
37
MAY DB63-10026A
←
