AW0510D 01 – CHASSIS ASSEMBLY – Aparts

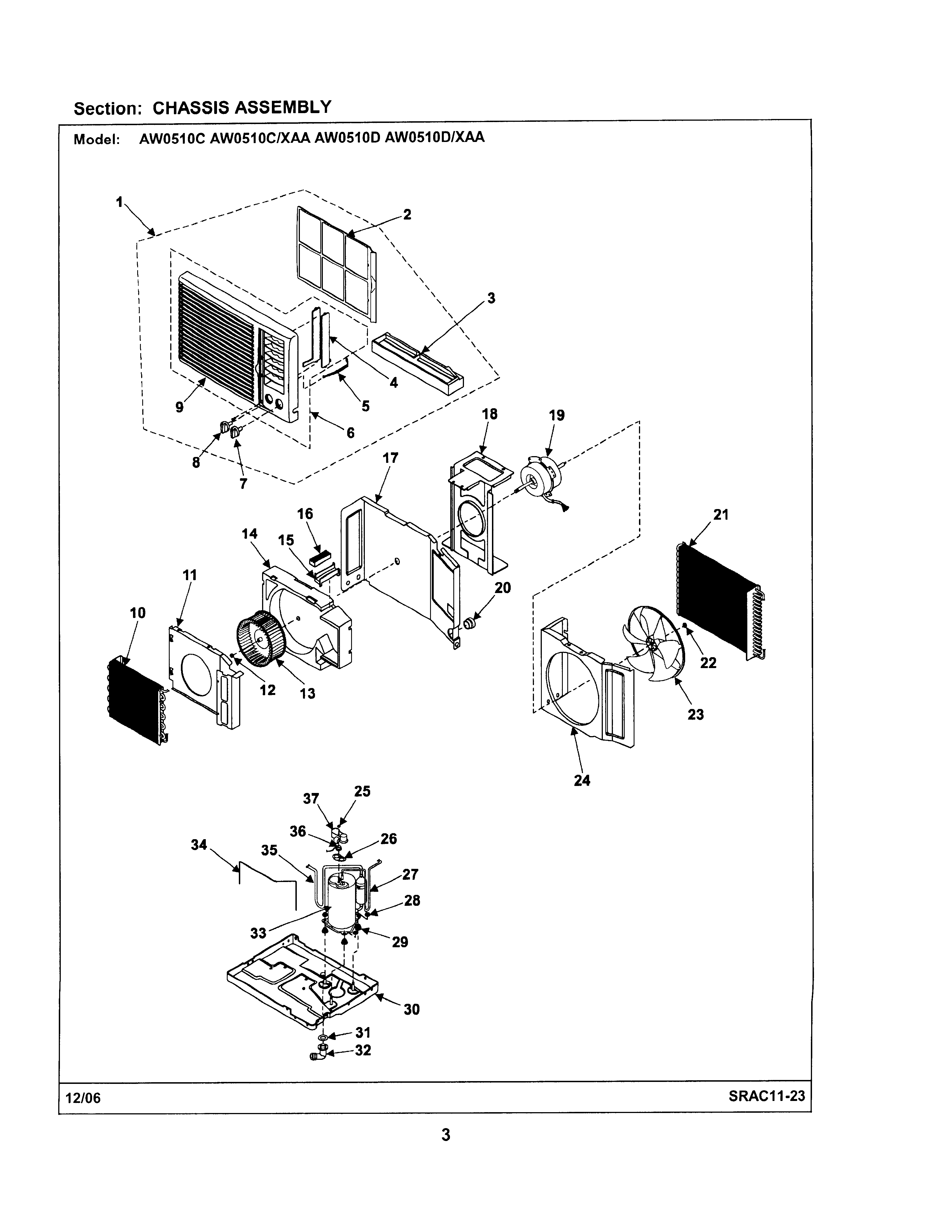

AW0510D 01 – CHASSIS ASSEMBLY

Products

Position	Product
1	MAY DB92-00032A
2	MAY DB63-00026A
2	MAY DB61-00191A
3	MAY DB63-00027A
4	MAY DB66-00023A
7	MAY DB64-00124B
8	MAY DB64-00124A
9	MAY DB64-00043A
10	MAY DB96-00548A
11	MAY DB70-00020A
12	MAY DB60-30004A
13	MAY DB67-00013A
14	MAY DB61-00083A
15	MAY DB63-00031A
16	MAY DB73-00031A
17	MAY DB94-00201A
17	MAY DB67-00012A
18	MAY DB61-00084A
19	MAY DB31-00035A
20	MAY DB63-00089A
21	MAY DB62-00205A
22	MAY DB60-30020A
23	MAY DB67-00014A
24	MAY DB61-00085A
25	MAY DB60-30001A
26	MAY DB63-20003A
27	MAY DB62-00445C
28	MAY DB60-30028A
29	MAY DB73-00016A
30	MAY DB90-00430A
30	MAY DB90-00123G
33	MAY 44A052HS1KA
34	MAY DB62-00763A
34	SEE NOTE GROUND WIRE, GREEN
35	MAY DB62-00296A
36	MAY DB47-20002Q
37	MAY DB63-10026A
