AW05280K 01 – CHASSIS ASSEMBLY

AW05280K 01 – CHASSIS ASSEMBLY

Written by

in

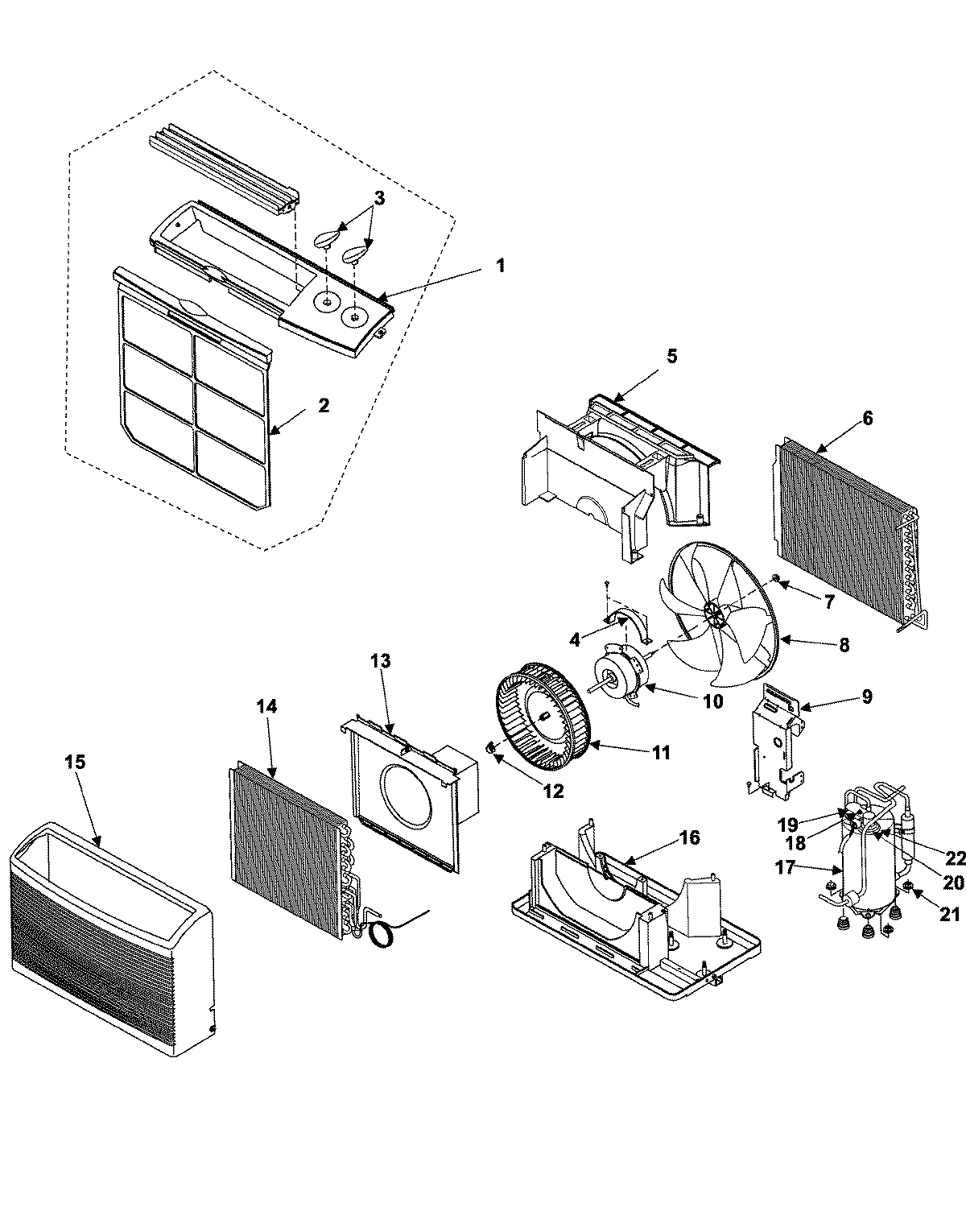

AW05280K 01 – CHASSIS ASSEMBLY

Products

PositionProduct
1MAY DB92-50028A
2MAY DB74-10080A
3MAY DB64-50137A
5MAY DB90-50136A
7MAY DB60-30004A
8MAY DB67-50070A
9MAY DB67-30076A
10MAY DB31-10139A
11MAY DB67-50071A
14SEE NOTE GROUND WIRE, GREEN
15MAY DB64-10142A
16MAY DB90-20188A
17MAY 44A056HW4E0
18MAY DB60-30018A
19MAY DB63-10504A
20MAY DB47-20002F
21MAY DB60-30028A
22MAY DB63-20002A
