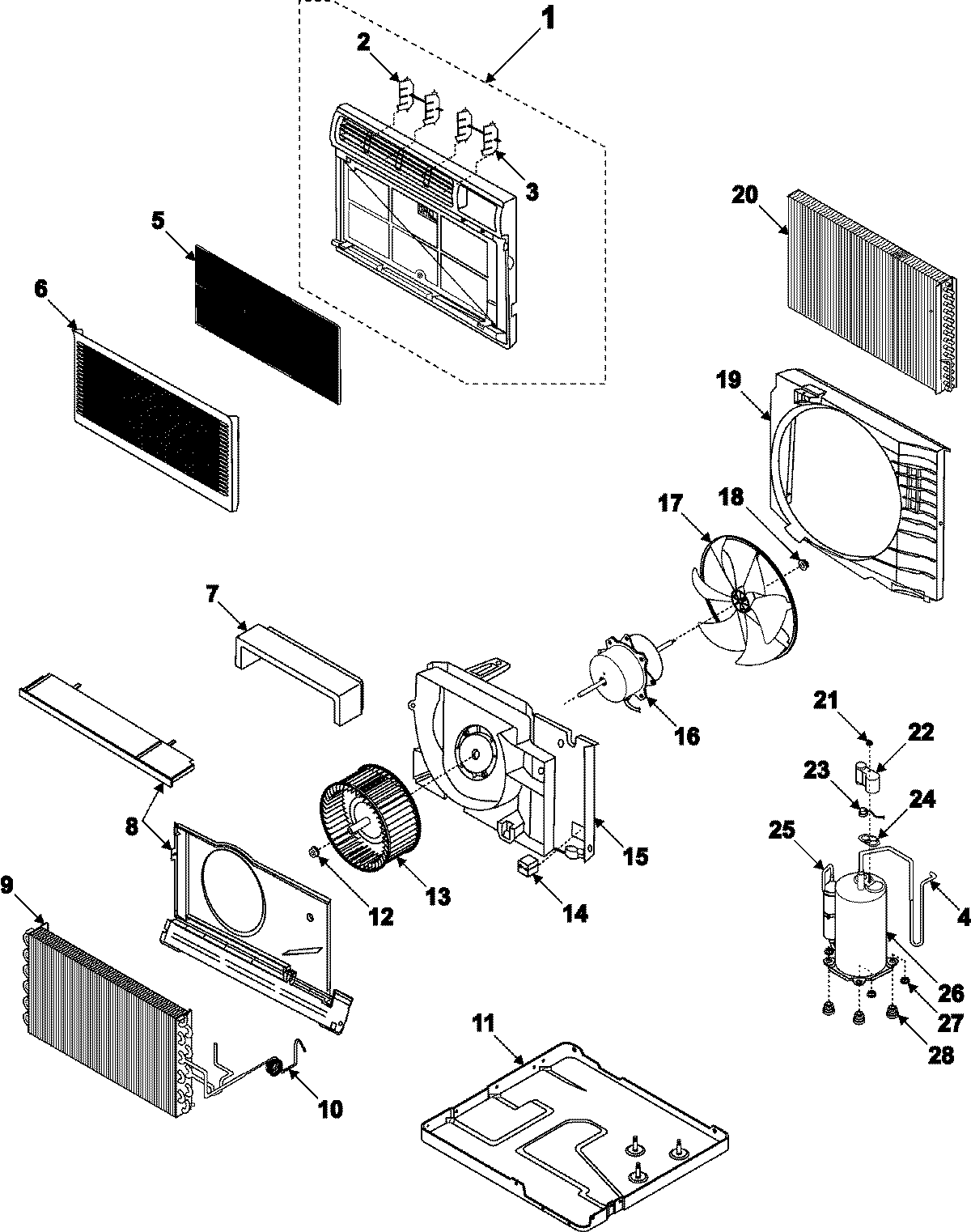

AW0601B 01 – CHASSIS ASSEMBLY

AW0601B 01 – CHASSIS ASSEMBLY

Written by

in

AW0601B 01 – CHASSIS ASSEMBLY

Products

Position	Product
2	MAY DB66-00367A
3	MAY DB66-00368A
4	MAY DB62-01349B
5	MAY DB61-00191A
6	MAY DB64-00681A
7	MAY DB90-00944A
8	MAY DB90-00898A
9	MAY DB96-01972A
10	MAY DB62-01350A
11	MAY DB90-00897A
12	MAY DB60-30004A
13	MAY DB67-00099A
14	MAY DB72-50178A
15	MAY DB70-00219A
16	MAY DB31-00035K
17	MAY DB67-00014A
18	MAY DB60-30020A
19	MAY DB61-00932A
20	MAY DB96-02044B
21	MAY DB60-30001A
22	MAY DB63-10026A
23	SEE NOTE GROUND WIRE, GREEN
24	MAY DB63-20003A
25	MAY DB62-01314B
26	MAY W10124433
27	MAY DB60-30028A
28	MAY DB73-00016A
