AW069CB 02 – CONTROL ASSEMBLY

AW069CB 02 – CONTROL ASSEMBLY

Written by

in

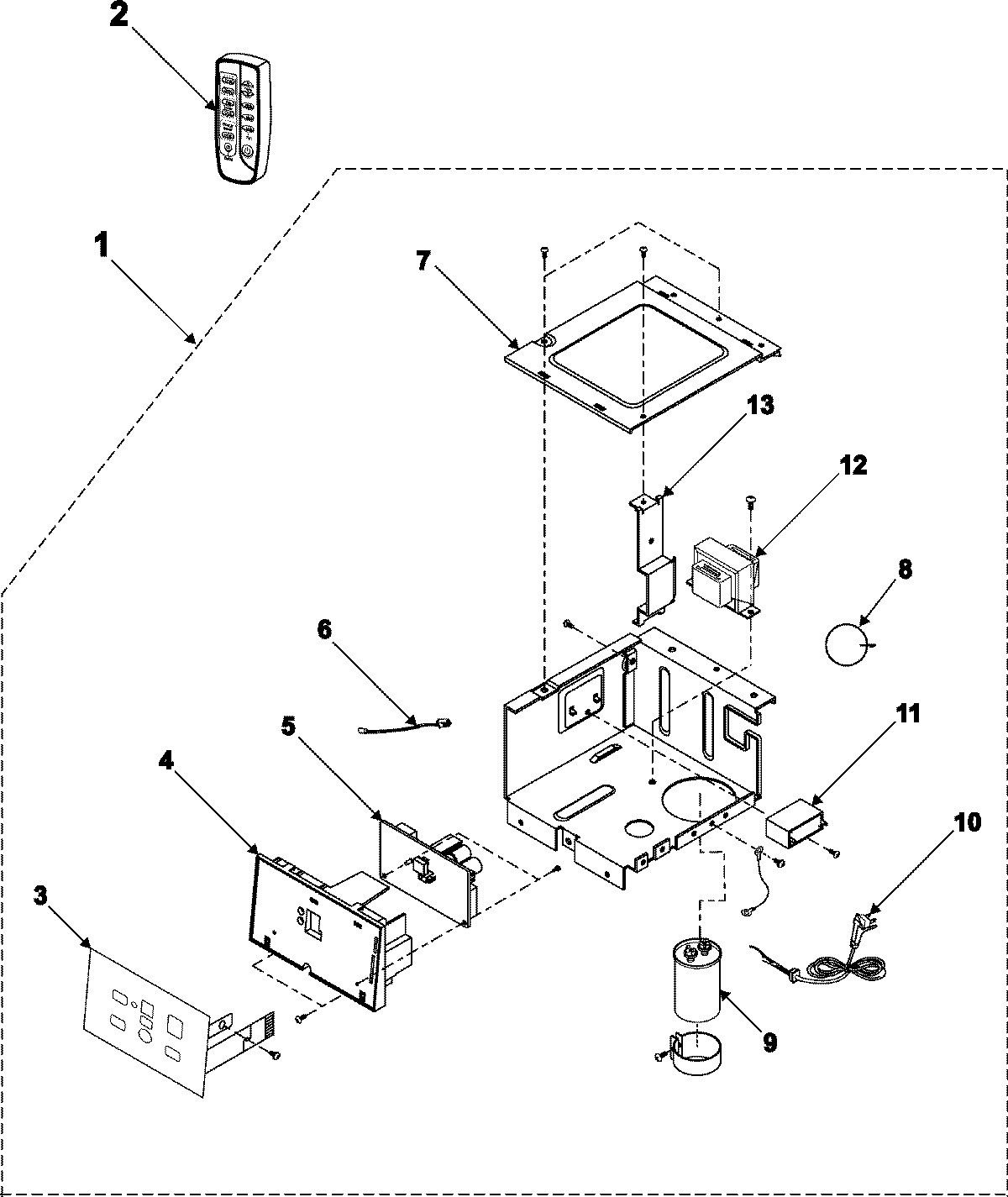

AW069CB 02 – CONTROL ASSEMBLY

Products

PositionProduct
1MAY DB93-03840A
2MAY DB93-03018V
3MAY DB34-00051A
4MAY DB64-01411A
5MAY DB93-03566A
6DB32-10051E Samsung Thermistor
7MAY DB61-02468A
8MAY DB65-00031B
9MAY 2501-001229
10MAY DB93-02938A
11MAY 2301-001447
12MAY DB26-00006G
13SEE NOTE GROUND WIRE, GREEN
